Why Choose MUCAR CS90 Diagnostic Tool ?
2023 New Car Model Coverage: MUCAR CS90 is a classic car Scanner. Fit newer car models released in recent years, such as Ford F-750 & Dodge Ram 3500 2022, and more.
1) 【Full OBD2 Functions】It including code reading, code clearing, freeze frame, DCT Look up, etc.
2) 【28 Reset Services Lifetime Free】 It including DPF ResetOil ResetSAS Steering ResetTPMS ResetIMMO Key ProgrammingABS Bleeding, etc.
3) 【Lifetime free Diagnosis of 10,000 cars 】More than 100+ brands, and part of 12V diesel cars can also be diagnosed.
4) 【Lifetime Free Updates 】You only need to connect to wifi, you can update for free with one click
5) 【Hardware Upgrade】 Android 7.0, Quad-core Processor, Dual-Frequency Wireless, the transmission rate is 2X faster; logically well-laid interface; easy-to-read 720P clarity.
Warm Tips
1) Before place order please check compatibility first. Send your car brand model and release year to seller.for example(Audi,A3, 2020)
2) Not all 28 resets work for all cars, send your car brand, model and release year check compatibility for you.
3) Engine system diagnostic lifetime free update

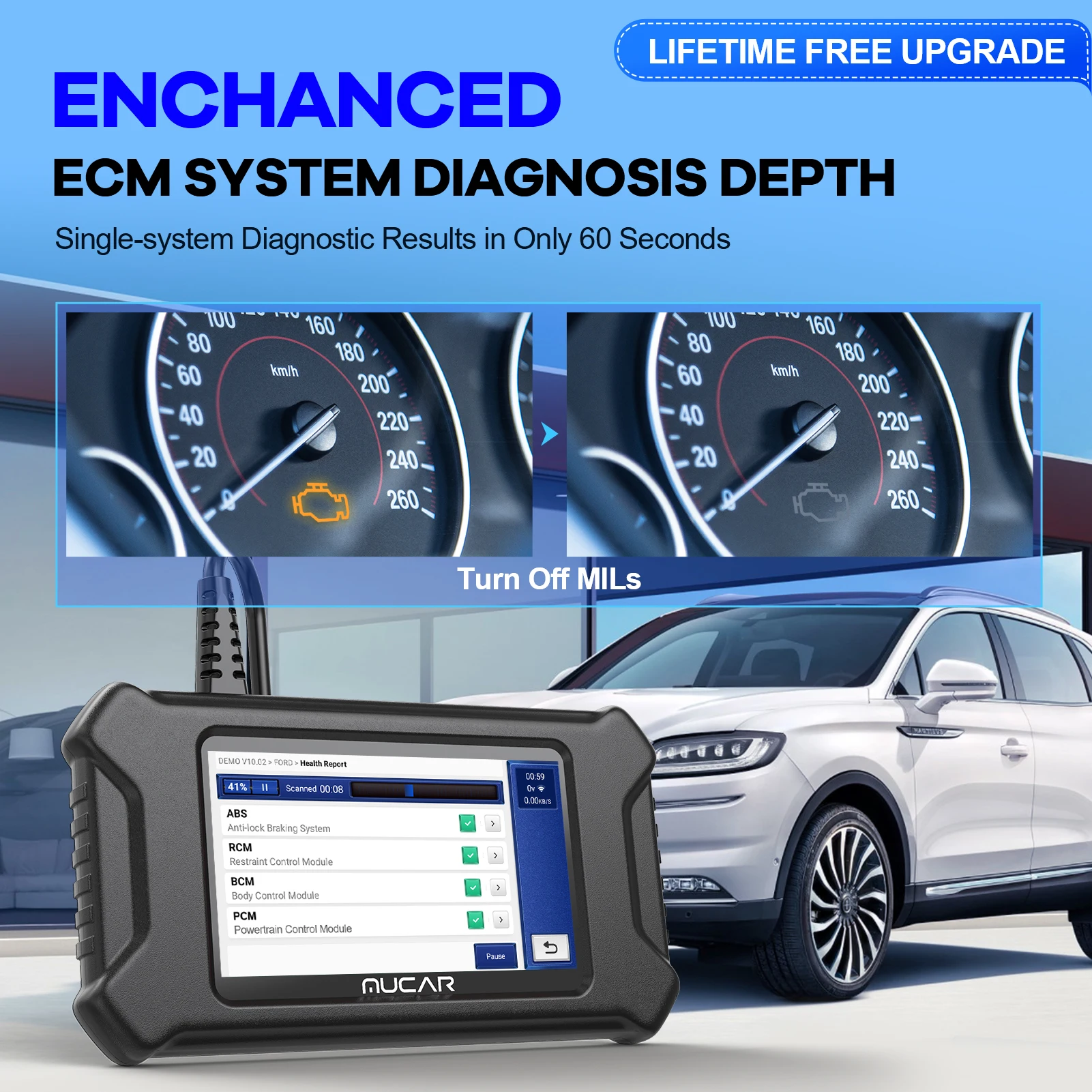

All Cars Lifetime Free ECM Engine System
You can diagnose the engine system via ecu obd2 port, support all 10 OBDII test modes, such as live data, O2 sensor test, component test and more;read and clear the engine error codes, find out the exactly problem, repair it, and turn off the MIL engine light.

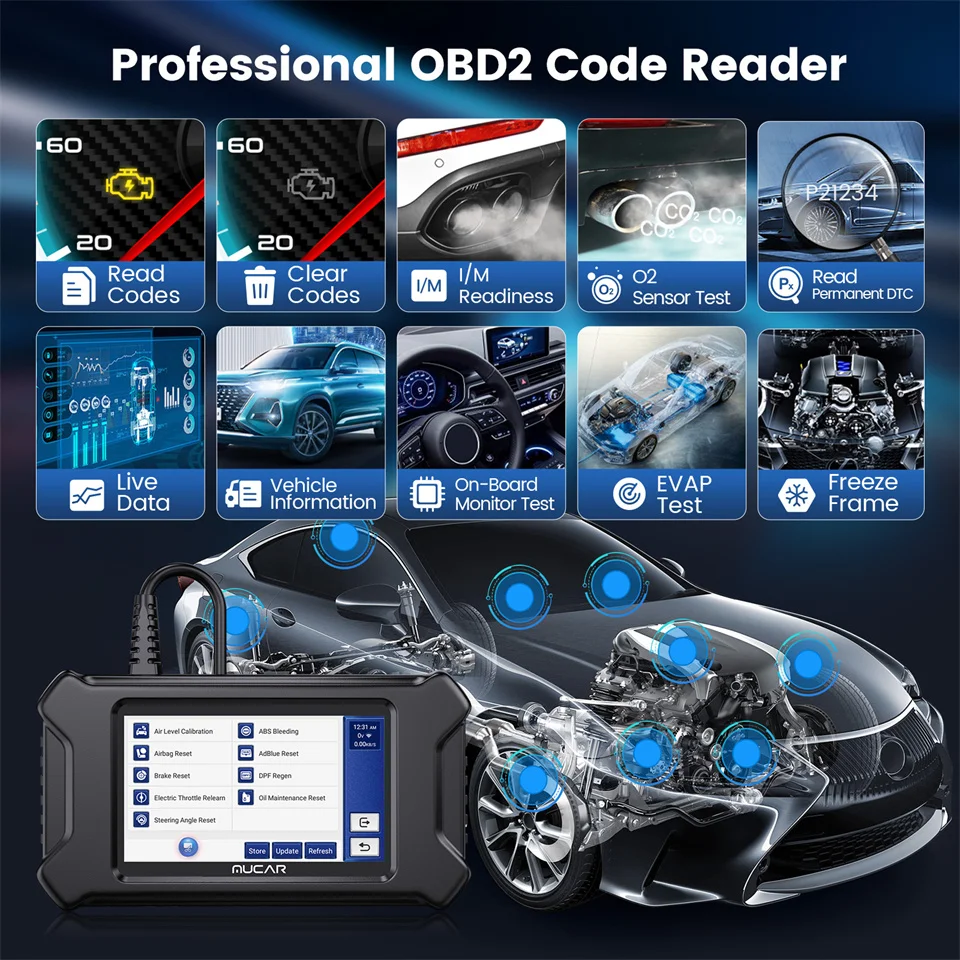

Lifetime free All 10 Mode OBDII/EOBD Functions:
Mode 1:Read live data stream
Mode 2:Read freeze frame data
Mode 3:Read DTCs(diagnostic trouble codes)
Mode 4:Clear dtcs
Mode 5:Oxygen sensor monitoring
Mode 6:System monitoring
Mode 7:Read pending DTCs
Mode 8:Control operation of on-board system
Mode 9:Read vehicle information
Mode 10:Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information

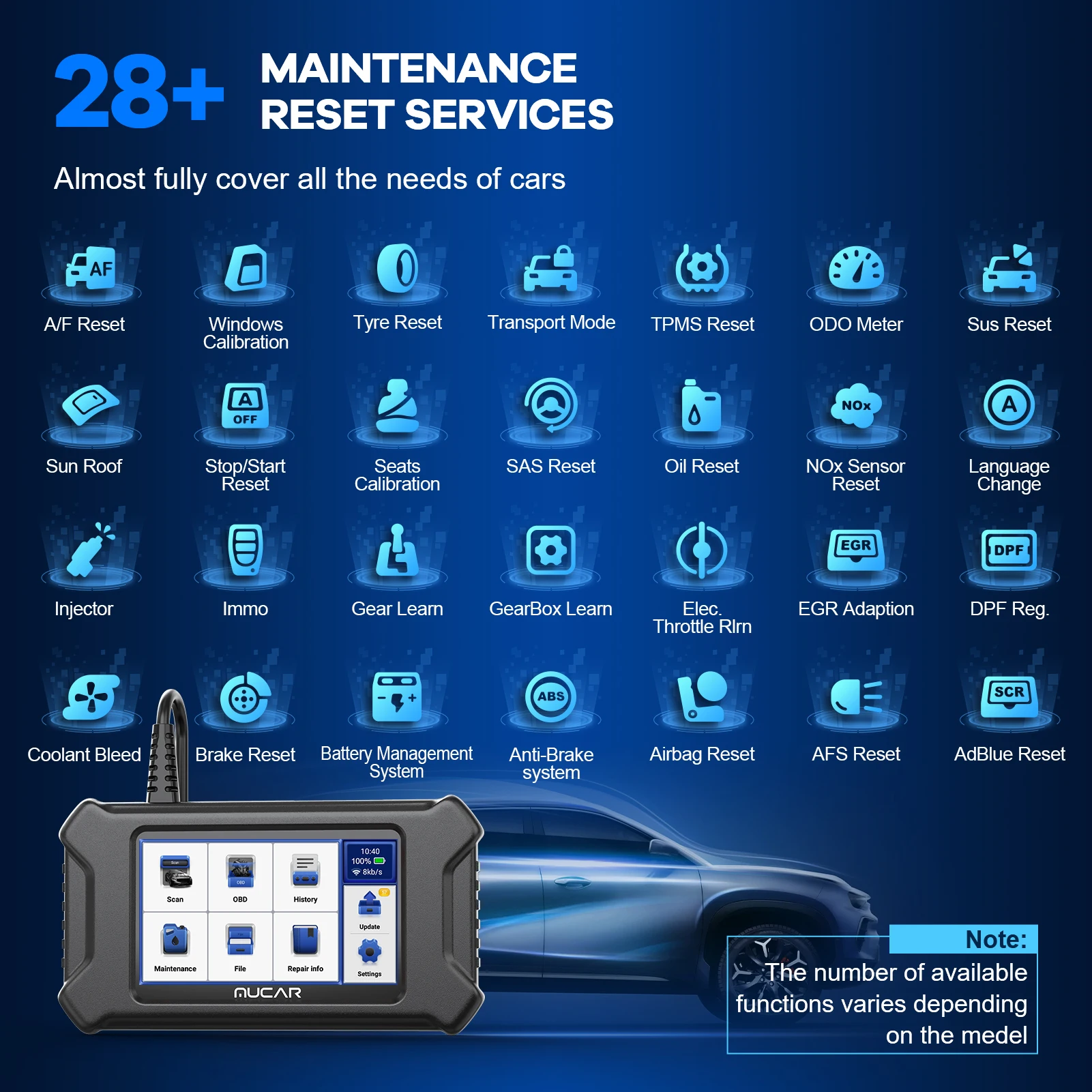

All Cars Lifetime Free 28 Maintenance Services Resets
1) Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2) EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system’s safety and efficiency.
3) BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4) DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5) SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6) TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.
7) IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8) ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.
9) Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
10) Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.
11) Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
12) AFS Headlamp Reset
‘AFS’ means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don’t turn when you turn the steering wheel.
13) Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.
14) Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.
15) Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
16) EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
17) A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
18) Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.
19) Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.
20) Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.
21) AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift
22) Language Change
This function is used to change the system language of the vehicle central control panel.
23) Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.
24) ODO Reset
a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it
is necessary to do ODO reset after maintenance.
25) Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).
26) Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
27) Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.
28) Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.
Support 126+ Car Brands and 10000+ Vehicles
USA：
BXGM,CHRYSLER, AUSTFORD, GM,USAFORD
EUROPE:
ASTONMARTIN,AUDI,BENZ,BMW,BXFIAT,CITROEN,FERRARI,FIAT,GAZ,LANDROVER,MASE,RATI,OPEL,PAZ,PEUGEOT,PORSCHE…
Austrillia:
AUSTFORD,AUSTHOLDEN
Asia:
BAIC,CHANGAN,CHANGCHENG,CHANGHE,DAEWOO,DAIHATSU,DFXK,FLYER,FUTIAN,HAFEL HMAZDA,HONDA,HUACHEN,HYUNDAI,IKCO,INDIANMARUTI,INDIANTATA,ISUZU,IVECO.IZH,JACTY JIAO,JINLONG,JOYLONG,JPISUZU,KIA,LIFAN, LIUWEITY ,LUXGEN,MAHINDRA,MALAYSIA PERODUA,MALAYSIA PROTON,MARUT,MAXUS,MAZDA,MITSUBISHI…
Notice : Japanese cars compatible with JOBD protocol are not supported
Support 13 Languages
English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Hungarian, Arabic, Greek, Slovak
One-Click WIFI Free Update Lifetime
1) Turn on the scanner
2.) Connect to WIFI
3) Click the upgrade button on the home page to achieve one-click upgrade
Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)
Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
Support Quick Print Diagnostic Reports
You could share the diagnostic reports to your computer, Than use the computer connect with printer to print the diagnostic reports
Button Introduction
Easy To Use
1) Plug into OBD2 port
2) Turn on the car
3) Start diagnosis
Packing List:
1*MUCAR CS90 Car Diagnostic Tool
1*Charging Cable
1*User Manual
