LAUNCH X431 PRO V5.0 Bidirectional OBD OBD2 Scanner All System Diagnostic Tools ECU Coding 37+ Service FCA DOIP CANFD X-431 PRO

NOTICE

There is only IP restrictions difference between EU Version and Global versions.

1. EU Version ：only support work in Russia, European countries and United Kingdom , Not supported for use in other countries

2. The Global Version supports use anywhere in the world

👉 👉 👉 Please select the correct version to avoid affecting normal shipment

Why Choose LAUNCH X431 PRO V5.0

1. Upgraded version of x431 V4.0 ， with DBScar VII VCI Adapter , support CAN FD/ DOIP new protocols (DOIP optional)

2. OE-Level All System Diagnosis +Bi-Directional Control ( Active Test ) + ECU Coding + Guiding function for Audi/for BMW + ECUAIC for Geely

3. Support 36 More Reset Service , Keep increasing

5. FCA SGW AutoAuth Access

6. lifetime Free Use + 2 Years Free Update. After that, you can still use it, it will not be locked.

7. 24 Language Free Choose, No language barrier

8. Support Auto VIN Scan + Intelligent diagnostics + Remote Diagnostics + Diagnostic Feedback

9. Added Anti-Theft IMMO Service

10. Added Tesla _EV vehicles: Model – 3, Model – S and Model- X ( Buy in MALL)

11. Compatible with X-PROG 3, TSGUN,I-TPMS, BST360, VSP600, ADAS, WIFI Printer , DOIP Adapter, oscilloscope，RF-Sensor laetc.

12. 5 Years Warranty for any Quality Problems and Lifetime Free Tech Support

Android 10.0 System + 2.0 GHz Quad Core processor + 4GB ROM + 64GB RAM

Lifetime Free Use + 2 Years Free Update

after 2 years free update, the product will not be locked and you can still use all functions normally.

Multi-Language Supports

English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional…

Warm TIP: The factory presets the language and the model software in English. After switching the language, customer needs to re-download the model software in the corresponding language.

CAN FD / DOIP new protocols

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

DoIP (optional)

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH CRP919E save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

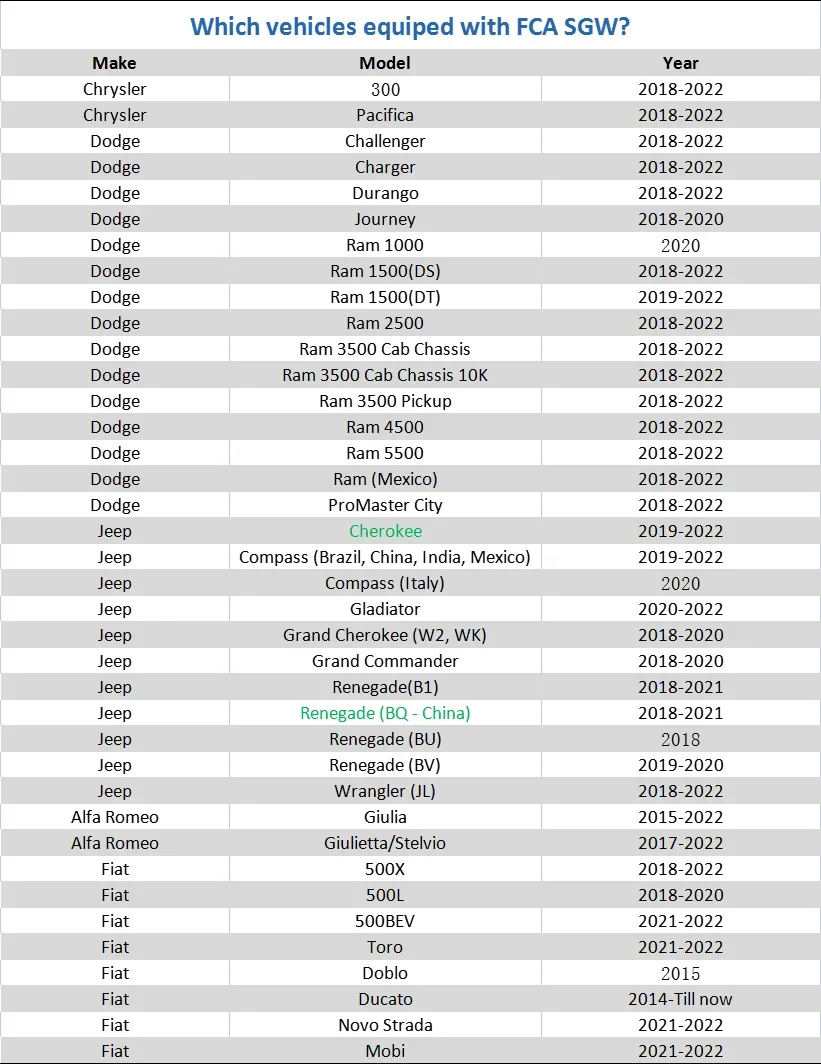

What's FCA US SGW?

FCA vehicles (Fiat Chrysler Automobiles) have been protected with an SGW security module (Secure since 2017 Gateway) to prevent unauthorized diagnostics and security attacks.

This module limits diagnostic capabilities without authorized diagnostic tools. This limits functions ranging from Bi-directional testing to DTC clearing. The vehicle’s SGW will need to be “unlocked” by the authenticated tester, and the Diagnostic tools.

Now FCA US is using the Automatic Authentication Authority (AutoAuth) to manage user accounts for access to SGW vehicles

ECU Coding

used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.You can use our x431 v pro to stimulate all the possibilities of the vehicles

After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.

Recode Changed Modules/Optimize Vehicle Performance/Re-Flash/Hidden Functions/Renew ECUs Coordination/Reprogram/Adaptive Data/Improve Fuel Efficiency/Reduce Power Loss/Improve the Durability of Mechanical Parts

Active Test ( BI-Directional Controls )

requests a module to perform a specific test and function.(Turn on and off actuators to determine whether there are problems with sensors and actuators)

Fuel Injector Balance, Fuel Pump Enable, Fuel Trim Enable,Fuel Injector Tests, Injecor Buzz Test, Injector Kill Tests, Injector Cut Out Test,A/C Compressor Clutch Relay On/Off

EVAP Tests: EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valve, EVAP Purge/Seal, EVAP Service Bay Test

Turn Off ACC Lane Keeping Assist System (LKAS),Turn ON/OFF Front and Rear side ACM Solenoid,

Turning the fuel pump on and off,Oil Pressure Control Test
Inlet and Outlet Valve tests,High beam test,Interior lighting test

Auto VIN Scan

5 Ways for quick diagnose included
1.AUTO VIN SCAN
2. CAMERA VIN
3. Manually Input VIN
4. Select Area and Vehicle- Automatic Detection
5. Select Area and Vehicle-Manual Selection.

12-In-1 Live Data Stream Graphing&Export Data as CSV/PDF File

Provides very detailed data stream data, it could include the change of Accelerator Pedal Position Sensor , Actual Output Shaft Speed , Clutch A Actuator Motor , Vehicle Battery and so on. Graphical data allows you to analyze the data changes of each module more clearly and easily, and it is easier to see the problems in it,CSV/PDF file allow you save the data,easy to record and track the vehicle performance.

Diagnostic Report Print&Share

With Launch X431 PRO V5.0,you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.

Remote Diagnosis &Feedback

When you encounter a complex car issue that is beyond your ability, you can easily get connected with an expert who is NOT physically present to help you fix it by using “Remote Diagnosis”. And if you have some difficulties or find some bugs during the use of this scan tool, you can send “Feedback” messages to LAUNCH technicians. They will handle the issues promptly

37+ Kinds of Special Reset Service Functions , keep increasing

1> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

2> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.

3> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

4> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

5> Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.

6> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

7> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

8> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

9> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

10> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

11> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

12> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

13> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

14> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

15> EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

16> Seats Calibration

This function is applied to match the seats with memory function that arereplaced and repaired.

17> Tyre Reset

This function is used to set the size parameters of the modified or replacedtire.

18> Coolant Bleed

Use this function to activate the electronic water pump before venting thecooling system.

19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

20> NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

21> Ac System Initialization

AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.

22> High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status informationdetection.

23> Windows Calibration

This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.

24> Language Change

This function is used to change system language of vehicle center console.

25> AF Reset

This function is applied to set or learn airlfuel rate parameters.

26> Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

27> StoplStart Reset

This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).

28> Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it isreplaced or repaired.

29> Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.

30> Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.

31> Motor Angle Calibration

This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.

( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly : //qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D ）

X431 PRO V5.0 supports expanding more module functionalities

1.LAUNCH X431 SmartlinkC V2.0 HD Module: Enables X431 V to do full comprehensive HD truck diagnostic functions for 24V vehicles. (NEED EXTRA BUY)

2.TSGUN: Activate and match with all 315 MHz / 433 MHz tire pressure sensors / Reset, relearn and tire pressure sensors fast /Diagnose the tire pressure issues and turn off the warning light by relearning and code your new tire pressure sensor./ LAUNCH LTR01 sensors AND other Unencrypted sensors with unlimited times./ Read tire pressure, tire temperature and battery status accurately

3.BST360 Battery Test clip Analyzer : Used for Battery Cranking system Test, Battery Charging system Test, Battery Health Test.

4.Oscilloscope O2-2: Make the auto repair technician quickly judge the faults on automotive electronic equipment and wiring.Featuring the user-friendly UI design combined with the unrivalled hardware specs, is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.

5.S2-2 Sensorbox: Specially designed to diagnose and simulator vehicle sensor faults quickly and conveniently.

6.S2-2 Multimeter: Measure the physical parameters such as voltage, resistance, frequency etc. It utilizes the same hardware as the S2-2 Sensorbox

7.X-431 ADAS Mobile/PRO: Operate ADAS calibration to vehicle cameras, LKA system, ACC system, LDW system, and AVM system.

8.VIDEOSCOPE: Examine and clean difficult-to-reach car areas normally hidden from sight, such as spark plug holes, engine cylinders, and small parts

9.Wi-Fi Printing: Print your diagnosis and maintenance report directly by selecting “Print via Wi-Fi”.

10.Mall service: Get more special function and advanced function.The X-431 FIX (HaynesPro) package is available for purchase at the Mall now.The package includes: technical service bulletins (TSBs), links to factory-grade trouble codes and related case descriptions. Also included are tested problem solutions and tips, as well as guided vehicle diagnostics; this data base also provides vehicle-wide system wiring diagrams, installation locations, and fault code information; this database contains all the common information for European and American vehicle manufacturers and it is continually being updated.

LAUNCH X431 PRO V5.0 support Car List

X-431 V supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari, Rolls Royce, Bentley, Mercedes-Benz, BMW, Audi.Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. It achieves full car model and full system vehicle trouble diagnosis

American cars:
For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE, For FIAT(BRAZIL), For FORD, For FORD(AUSTRALIA), For GM
For JEEP, For LINCOLI, For GM（BRAZIL）,For TESLA

European car:
For ABARTH, For ALFA ROMEO, For AUDI, For BENTLEY, For BMW, For BUGATTI,For CITROEN , For DACIA, For DR, For EUROFORD, For FERRARI, For FIAT, For GAZ, For OPEL(SOUTHAFRICA), For IVECO, For JAGUAR, For LAMBORGHINI, For LANCIA, For LANDROVE, For MASERATI, For MAYBACH, For MERCEDES, For MINI, For OPEL, For PEUGEOT, For PORSCHE, For RENAULT, For ROLLSROYCE, For ROVER, For SAAB, For SEAT, For SKODA, For SMART, For SPRINTER, For VAUXHALL, For VAZ, For VOLVO, For VW, For BORGWARD, For ASTON MARTINA,

Asian cars：
For ACURA, For DAEWOO, For DAIHATSU, For HM, For HOLDEN(AUSTRALIA), For HONDA, For HYUNDAI, For IKCO, For INFINITI, For ISUZU, For KIA, For LEXUS, For LUXGEN, For MAHINDRA, For MAHINDRA(INDIAN), For MARUTI, For MARUTI(INDIAN), For MAZDA, For MITSUBISHI, For MVM, For NISSAN, For GTR(NISSAN, For PERODUA, For PERODUA(MALAYSIA,
For PROTON, For PROTON(MALAYSIA, For SAMSUNG, For SAIPA,
For SSANGYONG, For SUBARU, For SUZUKI, For TATA, For TATA(INDIAN, For TLISUZU, For TOYOTA, For UNITED PAKISTAN,
For VINFAST

Chinese car：
For BRILLIANC, For BYD, For CHANGAN, CHANGAN-FORD, , For CHANGHE, For CHBUICK, For CHCADILLAC, For CHCHEVRO-KET, For CHERY, For CHSUZUKI, For DFCIROEN, For HONDA(DF), For DFNISSAN, For DFEUGEOT, For ECUAID, For FAW(TIANJIN, For FOTON, For GOLDEN(XIAMEN, For GONOW, For MITSUBISHI(GAC, For GREAT WALL, For HONDA(GAC, For HAFEI, For HAIMA, For HCBMW, For JAC, For JIANGHUAI, For JMC, For JOYLONG, For LIFAN,
For LYNKCO, For MG(SAIC, For NJFIAT, For QOROS, For MAXUS,
For SGM, For TOYOTA(CHINA, For VENUCIA, For WULING, For XINKAI,
For YQMAZDA, For ZHONGGSHUN, For ZHONGXING, For ZOTYE, For SOUEAST, For ROEWE(SAIC), For JIQING(FAW), For HUANGHAI, For LANDWIND, For EXEEDTY, For NISSAN(ZHENGZHOU), For DFPV,
For JETOR, For DFFX, For CHERY EV

LAUNCH X431 PRO V5.0 Configuration

· Tablet size: 8.0 inches, 1280*800
· System version: Android 10
· CPU version: 2.0GHz 4-core
· Running memory: 4GB
· Storage memory: 64GB
· Battery capacity: 47880mWh (7.6V, 6300mAh)
· Camera head: front 500W, rear 800W
· Wifi network: 2.4GHz / 5GHz (dual band)
