LAUNCH X431 CRP919E BT Car Diagnostic Tool OBD2 Scanner DBScar VII VCI Auto with Active Test ECU Coding CANFD DOIP 31+ Reset

What is the difference between EU Version and Global Version ?

1.EU Version and Global Version support the same functions.
2.The EU Version is designed for European customers and only supports working in the European region ( including Russia and UK).
3.The Global Version has no IP restrictions and can be used worldwide.

Product Profile

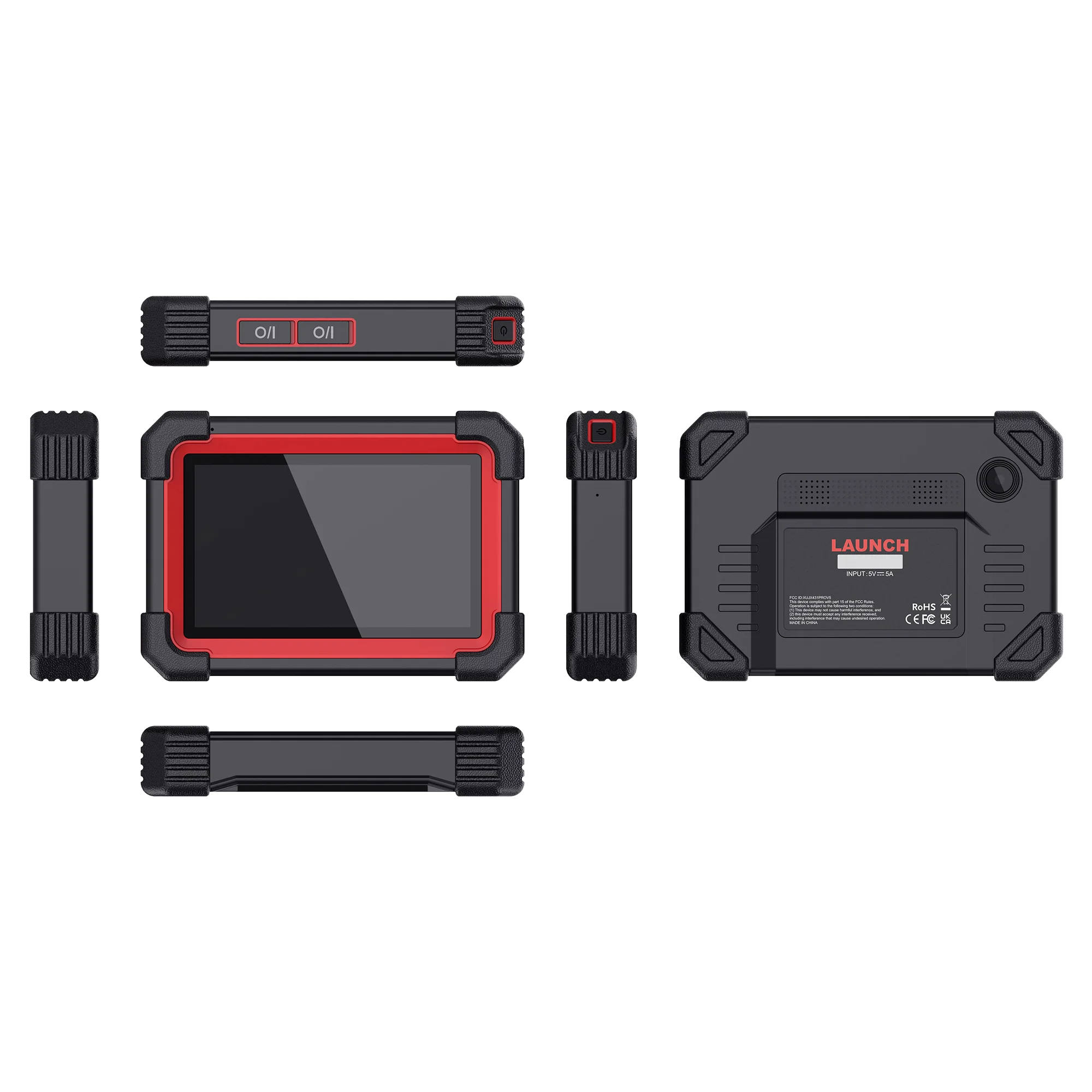

LAUNCH X431 CRP919E BT is upgraded version with 2024 Enhanced Hardwares & New Functions than CRP919E/CRP909E, FASTER and SMARTER! Alternative Bluetooth +USB connect, 4G+64GB, 2.0 Ghz 4-Core, High-efficiency Processor (5X Faster CPU),Android 10.0 OS, 5G & 2.4 GHz Dual WiFi, V.A.G Guided Function, ECU Online Coding, CANFD&DOIP, FCA AutoAuth,31+ Services, 3K+ Bi-Directional Control, Full Systems Diagnose, 2 Years Update, 150+ Vehicle Coverage.

It inherits from LAUNCH’s advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.

Through simple wireless/wired communication between VCI(Vehicle Communication Interface)device and the display tablet, it achieves full car model and full system vehicle trouble diagnosis, which include Reading DTCs,
Clearing DTCs, Reading DataStream, Actuation Test and Special Functions.

What should I do before using it for the first time ?

Charging & Turning On

1. Use the included power adaptor to charge the tablet.

2. After charging is complete, press the POWER button to turn the tablet on. The system starts initializing and then enters the home screen.

Note: If the battery remains unused for a long period of time or the battery is completely discharged, it is normal that the tool will not power on while being charged.
Please charge it for a period of 5 minutes and then turn it on.

How to change to the language I need ?

The tool supports multiple system languages. To change the language of the tool, please do the following:

1. On the home screen, tap Other Modules -> Settings -> System -> Language & input -> Languages.

2. Tap Add a language, and then choose the desired language from the list.

3. Tap and hold the desired language and drag it to the top of the screen andthen release it, the system will change into the target language.

Why for small buiness, home mechanics & auto enthusiasts must choose LAUNCH X431 CRP919E BT ?

[More Accurate Diagnostic Data] LAUNCH has established itself as a most reputable brand in the automotive industry, offering reliable and feature-rich scan tools with #1 extensive field-tested database, diagnosing 5 million cars per month, and outputting 10 million diagnostic reports.

[2-in-1 Connection Ways] LAUNCH X431 CRP919E BT can diagnose cars via USB cable as well as wireless bluetooth connection with 2024 LAUNCH Newest bluetooth tech-DBSCAR VII Connector, keep you from crowded.

[Wider Compatibility than Other Tools] Supports 99.99% vehicle coverage and car protocols from 1996-2024, including 12V cars, light duty trucks and SUVs, hybrid vehicles, etc, while rivals software behind us more than a year.

[Dealer Level Diagnose Software] OEM Full systems diagnostic and get more than 31+ Special functions on modules, while rivals may claim to offer full-system diagnostics, the systems and data stream they scan are not complete in reality.

[Features LAUNCH X431 CPR919E BT has more while others DOESN'T] ECU Coding(Online Coding/Offline Programming) , Support CANFD&DOIP New Protocols, V.A.G Guided Functions, 8-in-1 Live Data Stream, Built-in Google Browser, Larger Battery Capacity, and 2 Years Free software upgrade. so Why pay more to choose a less-featured tool?

LAUNCH X431 CRP919EBT is a new bluetooth version of CRP919E/CRP909E

Which has upgraded to cover more vehicles coverage, OE-level features and stronger hardware without any extra fees!

1. CRP919E BT is an upgraded version of CRP919E, added DBScar VII VCI , connect car via bluetooth

2. Support CANFD and DOIP new protocols car

3. Added Guide function of Audi ,BMW

4. More powerful configuration: 7’inch touch screen + Android 10.0 operating system, 4GB RAM + 64GB ROM Large storage and equipped with a 6300mAh high endurance battery, making diagnosis faster, more stable, and more durable

5. OE-Level Full system diagnose

6. ECU Coding + Active Test (Bi-Direction Control)

7. 31+ Reset Service , Keep Increasing

8. Auto VIN Scan

9. Exetend to work with FCA account (optional)

10. 23 languages support, Including Italian, English, German, Japanese, Russian, French, Spanish, Portuguese , Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian , Serbian, Finnish, Swedish, Czech, Simplified Chinese, chinese traditional

CRP919E BT has the following features:

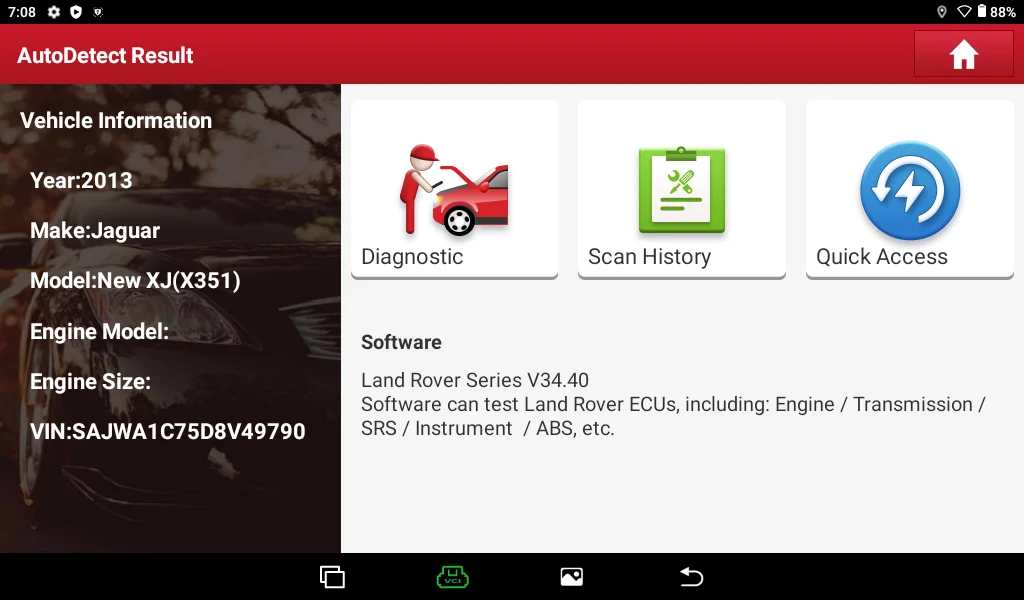

 Intelligent Diagnose: This module allows you to use the VIN information of the currently identified vehicle to access its data (including vehicle information, historical diagnostic records) from the cloud server to perform quick test, eliminating guesswork and step-by-step manual menu selection.

 Local Diagnose: Follow the on-screen prompts to start diagnostic session step by step.

 New Wireless Connection: Equipped with BT Tech, softwares monthly release, support wireless and wired diagnostics.

 Service Function: It offers coding, reset, relearn and more service functions, to help vehicles get back to functional status after repair or replacement.
Available tests vary by vehicle manufacturer, year, and model.

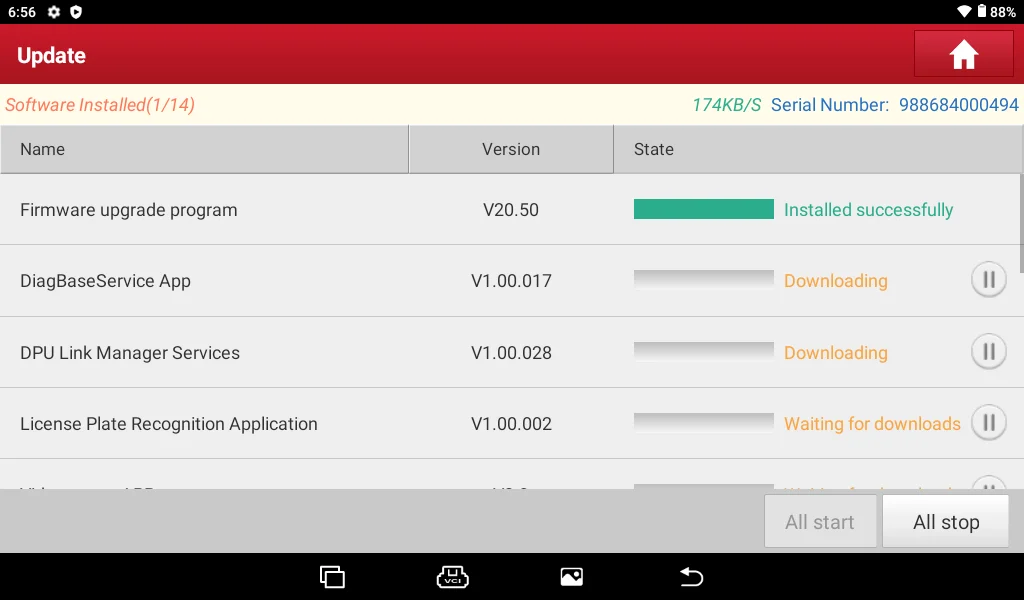

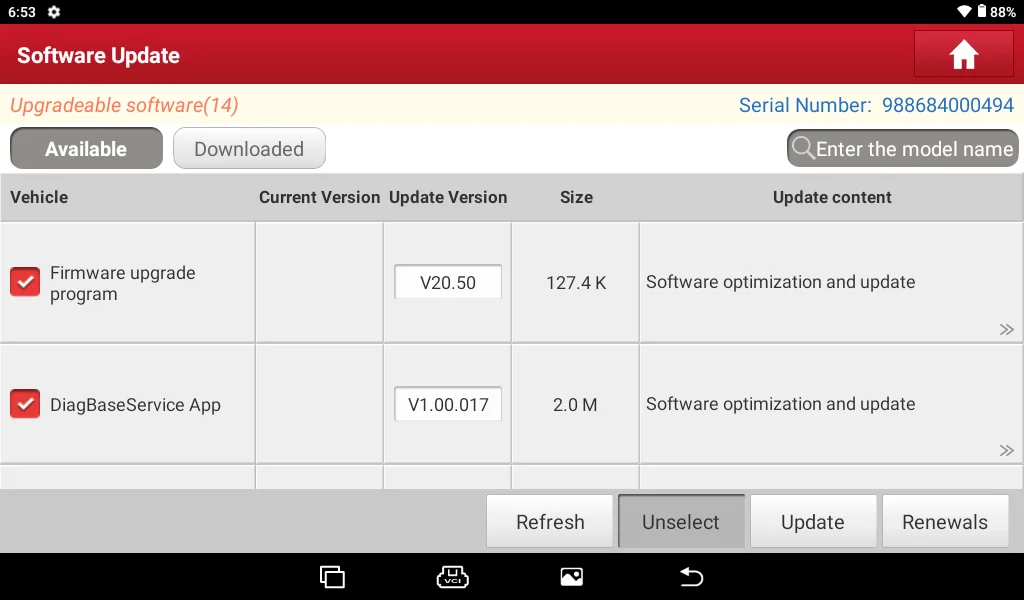

 One-click Update: Lets you update your diagnostic software online.

 New CAN FD & DOIP: 5X Faster data transmission, supports newest vehicle protocols for 2024 Models.

 Mall: Enables you to subscribe some extra software or service functions that are not integrated in the tool online.

 New V.A.G Guided Functions: Provide maintenance guide to complete matching, calibration, and basic settings.

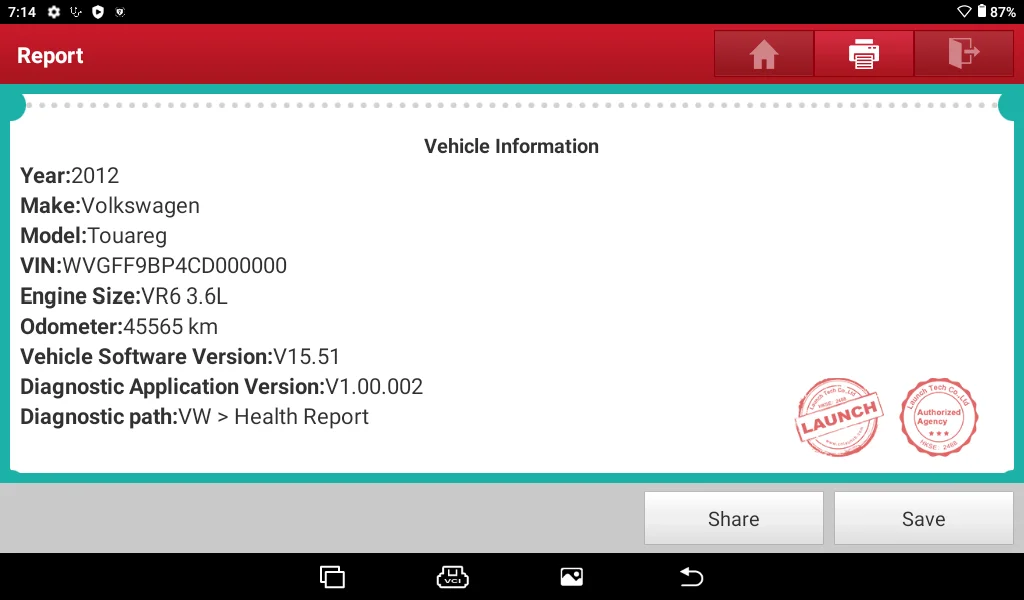

 Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without starting from scratch.

 Feedback: Enables you to submit the vehicle issue to us for analysis and troubleshooting.

 New Autoauth for FCA SGW: No need 12+8 adapter just register an “AutoAuth” account on it.

 Testable Models: Quick dial to view the vehicle models that the tool covers.

OE- Level Full System Diagnosis

As an OE level automotive diagnostic tool, LAUNCH CRP919E can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.

Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ，Air Conditioning System，Transmission System, etc…

Brief introduction of its capabilities in full systems diagnostic as follows:

1. For Engine System: help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. For Transmission: It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

3. For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.

4. For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.

5. To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

6. To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

7. To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

8. To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

9. To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

10.To diagnose Light System if you see rapid signal blinking or dimming lights. And many more ….

Professional All Systems Diagnose with All-Around & In-depth Diagnoses

LAUNCH X431 CRP919E BT automotive scanner can scan full modules like ECM(engine), TCM(Transmission), ABS(Anti-Lock Braking System), SRS(Supplermental Restraint System), EPB(Electric Parking Brake), BCM(Body Control Module), EPS(Eletronic Power Steering), HVAC(Heat, Ventilation and Air Conditioning), TPMS(Tire Pressure Monitor System Reset) and more to perform OE level diagnostics to Read Codes, Clear Codes, Smog Test, Read Live Data, Freeze Frame, Evap Test, DTC Look Up, Detection Help, On-Board Monitor Test Mode, I/M Readiness Check, O.2 Sensor Test, Retrieve Ecu Information, Matching & Adaptations, ECU Coding, Active Test, allows you to get a Faster snd More Accurate Test Result On All Electronic Systems.

Extra Full OBD2 Modes

It supports OBD ll functions to help you turn off the annoying instrument fault indicator and also can read/clear codes, O2 sensor test, I/M readiness, On-board monitor test, read data stream, display freeze frame data, EVAP system test, retrieve vehicle information (VIN, calibration ID, calibration verification numbers).

Supports CANFD and DIOP protocol now , it supports For GM after 2020 and other New cars !

Robust vehicle compatibility is one of the most important considerations when choosing an automotive diagnostic scanner. Are you still struggling with these issues with your old scanner? Limited vehicle compatibility? No support for GM newest models observing CANFD protocol? Can't access newest FCA vehicles' systems?

It is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

CANFD Protocol: CAN with flexible data rate (CAN FD) overcomes the limitations of the classical CAN bus in terms of data transfer rate. With advanced CRC algorithm and much wider compatibility, it will accommodate more data, run faster, improve communication speed, reduce the risk of missed.

Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

DoIP protocol(Need Purchase extra DOIP Connector)

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH CRP919E BT save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

Autoauth for FCA SGW

Use the latest software update function AutoAuth to provide systems diagnosis, active test, retrieve module info, ecu coding, etc., making the diagnostics more secure. Applicable to FCA vehicles(Chrysler, Dodge, Jeep, Fiat) equipped with a security gateway module (SGW) in 2017 and later. (Note: There is an annual 50 b.ucks fee for AutoAuth account, but the payment is charged by AutoAuth directly. LAUNCH is not involved in any transaction process.)

Comparison between wired and wireless, unrestricted use

Service(Reset) Function

It offers coding, reset, relearn and more service functions, to help vehicles get back to functional status after repair or replacement. Available tests vary by vehicle manufacturer, year, and model.

Due to continuing improvements, the available service functions are subject to change at any time. To enjoy more service functions, you are suggested to check for updates on a regular basis.

1. Maintenance Light Reset (Oil Reset)
This function enables you to reset the oil service for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.

It needs to be performed in the following cases:
A. If the service lamp is on, run car diagnostics first for troubleshooting. After
that, reset the driving mileage or driving time, so as to turn off the service lamp and enable a new driving cycle.
B. If the service lamp is not on, but you have changed the engine oil or electric appliances that monitor oil life, you need to reset the service lamp.

2. Electronic Parking Brake Reset (BRAKE RESET)
This function enables you to reset the brake pad after replacing the brake pad.

It needs to be performed in the following cases:
A. The brake pad and brake pad wear sensor are replaced.
B. The brake pad indicator lamp is on.
C. The brake pad sensor circuit is short, which is recovered.
D. The servo motor is replaced.

3. Steering Angle Reset (SAS Reset)
This function enables you to reset the steering angle, after replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body.

To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.

4. ABS Bleeding
This function allows you to perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS).

It needs to be performed in the following cases:
A. When the ABS contains air.
B. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

5. Crank Position Sensor Adaptive Learning (GEAR LEARN)
This function enables you to perform tooth learning for the car, to turn off the MIL.

It needs to be performed in the following cases:
A. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced.
B. The DTC ‘tooth not learned’ is present.

6. Anti-theft Matching (IMMO)
This function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

It needs to be performed in the following cases:
When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced.

7. Injector Coding (INJECTOR)
This function enables you to write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder, so as to more accurately control or correct cylinder injection quantity.

It needs to be performed in the following cases:
After the ECU or injector is replaced.

8. Battery Matching (BAT. RESET)
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

It needs to be performed in the following cases:
A. The main battery is replaced.
B. The battery monitoring sensor is replaced.

9. DPF Regeneration (DPF REG.)
This function enables you to clear PM (Particulate Matter) from the DPF filter
through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

It needs to be performed in the following cases:
A. The exhaust back pressure sensor is replaced.
B. The PM trap is removed or replaced.
C. The fuel additive nozzle is removed or replaced.
D. The catalytic oxidizer is removed or replaced.
E. The DPF regeneration MIL is on and maintenance is performed.
F. The DPF regeneration control module is replaced.

10. Throttle Matching (ELEC. THROTTLE RLRN)
This function enables you to make initial settings to throttle actuators and returns
the learned values stored on ECU to the default state. Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.

11. Gearbox Matching (GEARBOX)
This function enables you to complete the gearbox self-learning to improve gear
shifting quality.

It needs to be performed in the following cases:
When the gearbox is disassembled or repaired.

12. Headlight Matching (AFS RESET)
This function enables you to initialize the adaptive headlamp system.

13. Sunroof Initialization (SUNROOF)
This function enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.

14. Suspension Level Calibration (SUS RESET)
This function enables you to adjust the height of the body.

It needs to be performed in the following cases:
A. When replacing the body height sensor, or control module in the air suspension system.
B. When the vehicle height is incorrect.

15. EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

16. Seats Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

17. Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

18. Coolant Bleed
Use this function to activate the electronic water pump before venting the cooling system.

19. AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

20. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

21. AC System Relearn/Initialization
AC system relearn/initialization must be performed when the vehicle AC ECU or
actuator is replaced or the ECU memory is lost.

22. High Voltage Battery Detection (HIGH VOLTAGE BATTERY)
This function is used for high voltage battery diagnosis and status information detection.

23. Windows Calibration
This function is used to perform door window matching to recover the ECU initial memory, and recover the automatic ascending and descending function of power window.

24. Language Change
This function is used to change system language of vehicle center console.

25. A/F Reset
This function is applied to set or learn air/fuel rate parameters.

26. Transport Mode
To lower vehicle power consumption, user may perform the following operations:
limit vehicle speed, not wake up the network for door open and disable remote key etc. In this case, deactivating transport mode is needed to recover vehicle being normal.

27. Stop/Start Reset
This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is vehicle equipped with hidden function and hardware support).

28. Intelligent Cruise Control System Reset
This function is used to matching the intelligent cruise control module after it is replaced or repaired.

29. Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.

30. Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the
fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.

31. Motor Angle Calibration
This function is used to perform the motor angle calibration when the rotor position detected by the motor angle position sensor is different from the actual rotor field position.

Provide 31+ Funtions know better your car

Maximize Your Efficiency And Profitability With Our Top-of-the-Line Diagnostic Equipment, Always Keep Growing

LAUNCH X431 CRP919E BT diagnostic tool can perform 31+ frequently-used maintenance resets on Service Function option that every mechanic wants, such as Oil Reset, ABS Bleeding, Electronic Throttle Reset, Gearbox Reset, Battery Matching, etc. You will get 100+ hidden advanced functions under Vehicle Brand > System>Special functions, such as Zero-Point Calibration, HVAC/Seat/SUS Calibration, etc. PS: Features vary by car model&year, confirm compatibility before purchase.

ECU Coding can Personalize vehicle settings, and recode adaptive data for certain components after making repairs or replacements.

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc.

But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.

Full Bidrectional control/3000+ Active Test to do the real tests and repairs.

This option is used to access vehicle-specific subsystem and component tests. Available test vary by vehicle manufacturer, year, and model.

During the actuation test, the display tablet outputs commands to the ECU in order to drive the actuators, and then determines the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators, such as switching an injector between two operating states.

Bi-Directional Control is a feature that allows for two-way communication and control between scanner and car systems. It enables drive solenoids and actuators for active testing, sending commands to the system/component to test its operating status without using the vehicle controls. By utilizing Bi-Directional Control, technicians, mechanicians, car dealer, auto repair shop, DIYer or individual owner can actively monitor and control the behavior of a system, let you quickly understand whether a specific system, component, or subsystem is operating normally. It provides a more comprehensive and interactive approach to testing and troubleshooting, allowing for efficient identification and resolution of issues, pinpoint issues and greatly improve diagnostic efficiency.

Frequently-used Active Tests including: Evap Tests/ Purge Solenoid/ Fuel Injector Test/ Cycling A/C Clutch Relay/ Cycling Abs Motor Pump/ Cooling Fan Test/ Headlamp Test/ Sunroof/ Operate Mirrors/ Turn On The Sound Horn/ Turn On The Radiator Fan/ Open/Close Windows/ Turn On/Off The Lights/ Test Door Lock Actuators/ A/C Compressor Activation/ Modulate The Throttle/ Compression Test/ Turn On/Off Front And Rear Side Acm Solenoid/ Turn The Fuel Pump On And Off/ Cycling The A/C/ Clutch On And Off/ Left Clutch Electromagnetic Coil Test/ Acceleration Device Test/ Oil Pressure Control Test/ Dynamic Camera Aiming/ Vehicle Level Position Calibration/ Brake Vacuum Pump/ Inlet And Outlet Valve Tests/ Open Brakes Tests/ Parking Brake Botors/ Wheel Speed Sensor Supply/…

Support 5 Methods for Vehicles Identification

1. AUTO -VIN SCAN；2. CAMERA VIN；3. Manually Input VIN；4. Select Area and Vehicle- Automatic Detection；5. Select Area and Vehicle- Manual Selection.

LAUNCH X431 CRP919E BT bidirectional scan tool adopts the latest VIN-based Auto VIN Technology that enables auto technicians or home mechanics to identify vehicle information at a single touch, like Brand, Year, Make, Model, etc. Work with inspection camera, Camera VIN Scan can easily identify car model and year via taking a photo for cars. Not only with the Auto VIN and Auto Scan feature combined, but also support Choose Model and Year manually, X431 CRP919E BT can perform comprehensive diagnostics accurately and efficiently. Note: Auto VIN function can NOT work on all cars. You can always navigate your vehicle through the menu manually to perform diagnostics and services.

150 + Brands Coverage: Covers 150+ Car Makers and 10000+ Vehicles in American, European, & Asian etc brands from 1996-2024. (Including 12V cars, light duty trucks, SUVs, hybrid vehicles, minivans.)

US Models: For FORD, For LINCOLN, For GM, For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE,For JEEP, etc.

EUR Models: For MERCEDES-BENZ,For BMW, For VW, For SKODA, For AUDI, For OPEL, For LAMBORGHINI, For PORSCHE, For MAYBACH, For EUROFORD, For LANDROVER, For BENTLEY, For ROVER, For FERRARI, For FIAT, For RENAULT, For SAAB, For VOLVO, etc.

ASIA Models: For ACURA, For DAEWOO, For HOLDEN, For HONDA, For HYUNDAI, For INFINIT, For ISUZU, For KIA, For LEXUS, For MAZDA, For MITSUBISHI, For NISSAN, For SUBARU, For SUZUKI, For TOYOTA, For BYD, For CHERY, For TATA, For MARUTI, For MAHINDRA, etc.

One Click to Update，Save time

This module enables you to update the diagnostic software & App and frequently used software.

We provides 2 Years free update with high update frequency, new features/cars released monthly, one-Touch update via WiFi to enjoy more functions, get wider available vehicle coverage, add more languages, and improve the performance. Competitors have no software maintenance for a long time, vehicles model/ functions update less support less. The subscription fee after 2 years is $149/year, reach us at anytime to get dis~count. Note: You can work with CRP919EBT scan tool normally except online functions after it expires.

Health Report & Feedback

LAUNCH X431 CRP919E BT can automatically generate health reports via One-Click, the scanner will carry out in-depth inspections and calibrations for your vehicles, and you can send share, print via email, or local save the report in scanner.

LAUNCH X431 CRP919E BT allows you to submit online feedback of your diagnostic problems to LAUNCH for analysis and troubleshooting. You can submit the detailed failure description to get valuable solutions.

8-in-1 Live Data Stream

LAUNCH X431 CRP919E BT can combine 8 graph in a page which will allows you to see what happened at what time and in relation to what else you're interested in, such as fuel pressure, battery voltage, cylinder misfire data, long/short fuel trim, engine rpm, etc. And You’ll easily focus on any system-specific or suspicious data parameters, the automotive diagnostic scanner allows maximum of 4 live data streams to be merged in one graph, and maximum of 8 live data in one page. LAUNCH X431 CRP919E BT also supports exporting live data stream as CSV file, which can save for a long time and share to pc, it also can share diagnostic record to PC directly, as it only exclusive for CRP919E BT and help you further check potential problems of the vehicle.

Automatically generate

Each diagnosis vehicle automatically generates diagnostic records for easy viewing and comparison at any time, helping to locate faults

LAUNCH Tech Expert around you

When users encounter abnormal vehicle models and functions under special circumstances during use, they can provide feedback through diagnosis to Yuanzheng Company, and specialized technical personnel will track and handle the problems in a timely manner

Guidebook to check it easly

The maintenance information module provides rich database queries such as operating skills, fault code assistance, automotive maintenance manuals, and maintenance cases.

Renew Subscription

If the software subscription is due or expires, the system will prompt you to renew your subscription.

Customer Service

If you have any questions on the operation of the unit, please contact the seller, or customer service.

Technical Parameters

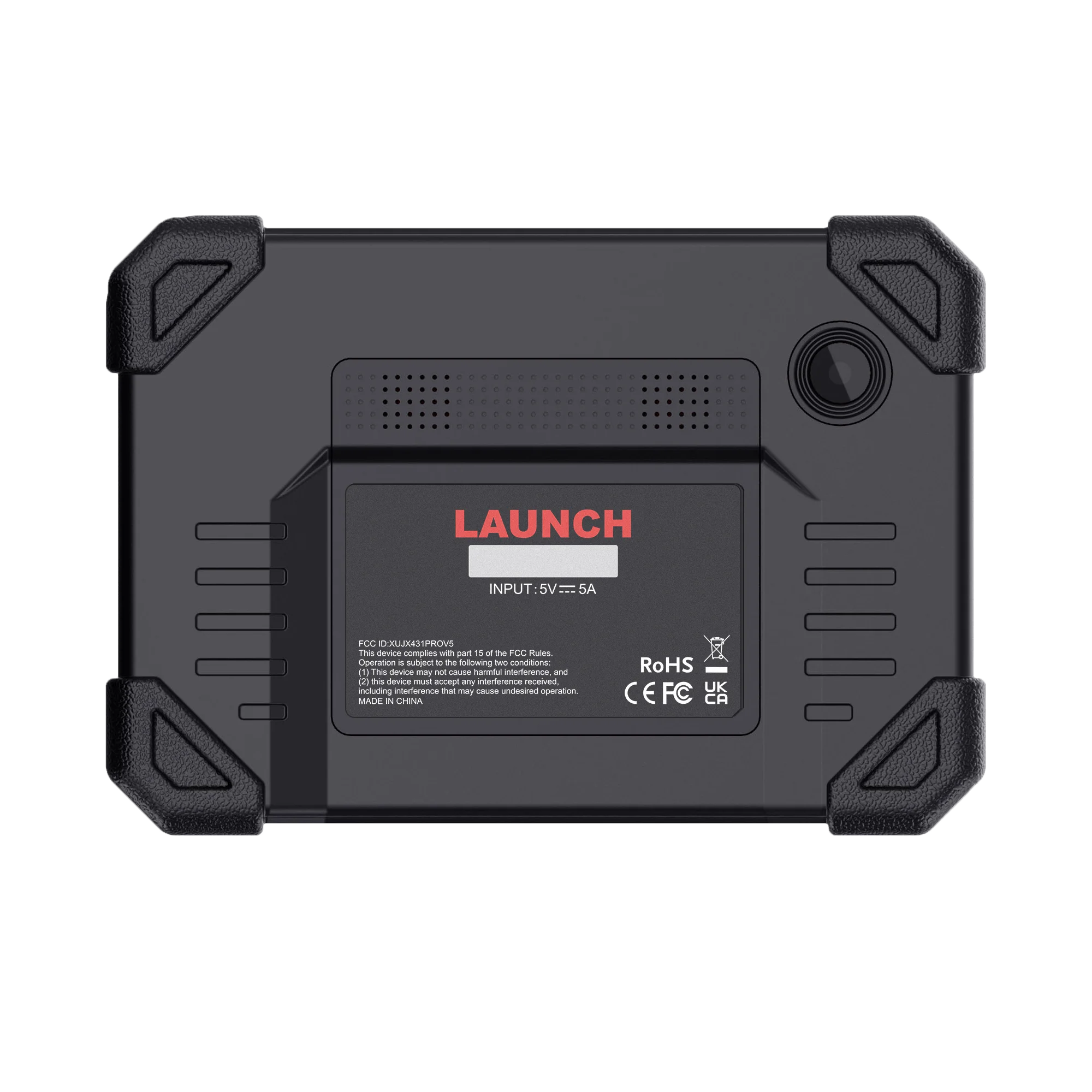

Display Tablet
Operating system: Android
Memory: 4GB
Storage: 64GB
Screen: 7 inch capacitive touch screen with a resolution of 1024 x 600pixels Camera: Rear-facing 8.0MP camera
Connectivity:
.Wi-Fi (802.11a/b/g/n/ac)
.Bluetooth
Working temperature: 0℃~ 50℃Storage temperature: -20℃~70℃

VCI Connector
Working voltage: 9 ~18V
Power consumption: ≤2.0W
Dimension: 118.3mm*69.5mm*32mm Working temperature: 0℃~ 50℃
Relative humidity: 20%~ 90%

Warranty

This warranty is expressly limited to persons who purchase LAUNCH® products for purposes of resale or use in the ordinary course of the buyer’s business.

LAUNCH®electronic product is warranted against defects in materials and workmanship for one year (12 months) from date of delivery to the user.

This warranty does not cover any part that has been abused, altered, used for a purpose other than for which it was intended, or used in a manner inconsistent with instructions regarding use.

The exclusive remedy for any automotive meter
found to be defective is repair or replacement, and LAUNCH shall not be liable for any consequential or incidental damages.

Final determination of defects shall be made by LAUNCH in accordance with stipulated procedures.

Packing List

The following packing listis for reference purpose only. For different destinations, the accessories may vary. For details, please consult from the seller or check the packinglist supplied with this tooltogether.

Display tabletx 1
Indicates the test result.

VCIconnectorx 1
A device for accessing vehicle live data.

iagnostic cablex 1
Connectsthe VCI connectorto vehicle’s OBD II diagnosticsocket.
It can be separated into two parts: HDB15F to HD15F data cableand HD15M to OBD II adaptor.

Password envelopex 1
Apiece of paper bearing the product Serial Number and Activation Code for product registration.

Power adaptorx 1+ Switching adaptors x 2
Charges the tablet via AC outlet.

Type-A to Type-C USB cablex 1
•Connects the diagnostic tool to AC outlet/ PC for charging / data exchange.
•Connects the VCI connector to the diagnostic tool to perform vehicle diagnosis.

Quick Start Guidex 1

FAQ

1. How to save power?
• Please turn off the screen while the tool keeps idle.
• Set a shorter standby time.
• Decrease the brightness of the screen.
• If WLAN connection is not required, please turn it off.
• Disable GPS function if GPS service is not in use.

2. Communication error with vehicle ECU?
Please confirm:
1. Whether the VCI is correctly connected.
2. Whether ignition switch is ON.
3. If all checks are normal, send vehicle year, make, model and VIN number to us using Feedback feature.

3. Failed to enter into vehicle ECU system?
Please confirm:
A. Whether the vehicle is equipped with this system.
B. Whether the VCI is correctly connected.
C. Whether ignition switch is ON.
D. If all checks are normal, send vehicle year, make, model and VIN number to us using Feedback feature.

4. How to download the Diagnostic App after resetting the tablet?
*Note: Before registration, please make sure the network is properly connected.
After the tablet has been successfully reset, follow the steps below to download the App:
A. Launch the browser and the default official Launch website opens (If a blank
page pops up, just type in www.x431.com in the input bar).
B. Tap Login, input the username and password and tap Log In.
C. Make sure that the serial number is correct, tap APP application programand tap the Download icon to start downloading.
D. After the download is complete, follow the on-screen instructions to install it.
E. After installation, use the existing username and password to login and go to update center to download the diagnostic software.

5. What to do if the language of vehicle diagnostic software does not match the system language?

English is the default system language of the tool. After the system language is set to the preference language, please go to the update center to download the vehicle diagnostic software of the corresponding language.

6. How to retrieve the login password?
Please follow below steps to proceed in case you forgot the login password:
A. Tap the application icon on the home screen to launch it.
B.Tap Login on the upper right corner of the screen.
C. Tap Retrieve password.
