KINGBOLEN K7 Car Diagnostic Tool Full System OBD2 Scanner ECU Coding Active Test 28 Resets AF Reset Lifetime Free Update Scan

KINGBOLEN K7 version update push time: March 26, 2025

Latest version: V1.1.4
– New Features:
1. Added the function of unlocking Renault Security Gateway.
2. Added language switching support to display the current minority language content
3. Added the function of purchasing FCA to unlock the account through the web page
– Function Optimization：
1. The data stream function has been optimized, and inHg supports switching between metric and imperial systems.
2. The data stream function has been optimized, and a data stream search box has been added.
3.The function of sharing diagnostic reports via email has been optimized.
-Fixed Bugs:
1. Fixed some known bugs.

Important software update for KINGBOLEN on June 17, 2025

1. Adjusted from the original 3-year free software to lifelong free software

2. The new version has added CANFD, which is more powerful in terms of functionality.

What's the difference between the global version and EU version ?

1.EU Version and Global Version support the same functions.The packing list of them also are same.

2. The EU Version is designed for European customers and only supports working in the European region ( including Russia and UK). It is with IP limited , can not work out of European , pls note. The price is cheaper than Global version , pls choose this version if you are from European.

3. The Global Version has no IP restrictions and can be used worldwide.

What are the advantages of K7 over other diagnostic tools at the same price?

1. 【All System, 28 Resets, Active Test, ECU Coding】Meet your needs for car diagnostics.

2. 【All Software free update】ECU coding and active Test also Free Update, For you to solve the trouble of buying software separately when doing advanced diagnosis for each car.

3. 【7-inch High-definition Tablet】larger screen and clearer display.

4. 【17 Languages Supported】English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Hungarian, Persian, Greek, Slovak, Dutch, Swedish, Traditional Chinese

5.【2G +32G Large Memory】Runs smoothly without lagging

6. 【28 commonly used Reset functions to meet your needs】RESET SAS, RESET BRAKE, RESET GEAR, RESET OIL, RESET IMMO, RESET INJEC, RESET TPMS, RESET BMS/BAT MATCH, RESET BLEED, RESET ETS/ELEC.TH ROTTLE RLRN, RESET DPF, SUS RESET, AFS RESET, SUN ROOF, GEARBOX LEARN, EGR Adaption, Language Change, A/F Resets, Coolant Bleed, NOx Sensor, Seats Calibration, Stop Start, Transport Mode, Tyre Reset, Windows Calibration, AdBlue Rest, ODO Resets, AIRBIG Reset

7. 【Mall Funciton】If you want more powerful functions, you can buy them in the mall.

Wide Vehicles Coverage:

Supports up to 70+ vehicle brands. Compatible with OBDII protocols, like ISO 14230-4 (KWP), IOS 15765-4 (CAN), ISO 9141-2 (IOS), SAEJ 1850 (VPW/PWM). Works on most of that manufactured after 1996 US-based, 2000 EU-based, 2005 Asian-based, or newer OBD II & CAN domestic or import vehicles; Supports AutoAuth for FCA SGW, allowing you to unlock protected FCA vehicle SGW module on Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat vehicles manufactured after 2019 and perform diagnostics, such as read/clear codes, data stream, etc.
(*Need AutoAuth subscriptions.)

For Amercian
for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM

For European
for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ

For Asian
Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan

For Chinese Car
For BAIC SENOVA , For BAIC WEIWANG, For BAIC , For BRILLIANCE , For BYD , For CHANGAN , For CHANGANFORD , For CHANGHE , For CHBUICK , For CHCADILLAC , For CHCHEVROLET , For CHERY , For CHSUZUKI , For DFCITROEN , For DFNISSAN , For DFPEUGEOT , For DFSK , For ECUAID , For FAW(TIANJIN) , For FOTON , For GONOW , For GWM , For HAFEI , For HAIMA , For HCBMW , For HONDA(GAC) , For JAC , For JINLONG , For JMC , For JOYLONG , For LIFAN , For LUXGEN , For LYNKCO , For MAXUS , For MG(SAIC) , For MITSUBISHI(GAC) , For NJFIAT , For POLARSUN , For QOROS , For SGMW , For TOYOTA(CHINA) , For XINKAI , For YQMAZDA , For ZOTYE , For ZX AUTO

Supports up to 70+ vehicle brands. Compatible with OBDII protocols, like ISO 14230-4 (KWP), IOS 15765-4 (CAN), ISO 9141-2 (IOS), SAEJ 1850 (VPW/PWM). Works on most of that manufactured after 1996 US-based, 2000 EU-based, 2005 Asian-based, or newer OBD II & CAN domestic or import vehicles;

FCA AUTOAUTH:

Supports AutoAuth for FCA SGW, allowing you to unlock protected FCA vehicle SGW module on Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat vehicles manufactured after 2019 and perform diagnostics, such as read/clear codes, data stream, etc.(*Need AutoAuth subscriptions.)

Supports 17 Languages:

It supports 17 languages, including English,French, Spanish ,German, Russian, Korean, Japanese,Portuguese, Italian, Polish ,Hungarian,Traditional Chinese,Persian, Greek, Slovak, Dutch, and Swedish. All languages are free to use, and you can switch back and forth between multiple languages as needed which can solve the language barrier you may encounter.

KINGBOLEN K7 supports Full system of the cars:

The KINGBLOEN K7 OBD2 scanner can perform comprehensive diagnosis through all available systems in the vehicle to read/clear codes, data stream, read control module information and bi-directional control for ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc.

Engines/Auto Transmission/Airbags/

Immobilizer/Key Coding/ABS/Cruise Control/

Instruments/ Self Leveling Suspension systems/

Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power/

Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/

Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air

Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central

Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear

Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat

Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation

System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux

Heating/Electronic Parking Brake/Clutch Electronics etc.( Great for car repair shops and mechanics to improve business)

ALL Systems Diagnostic Lifetime Free Update

Include: ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, etc…

KINGBOLEN K7 7inch Tablet ALL System Diagnostic Tools ECU Coding Active Test 28 Resets AF Reset 3 Years Free PK THINKSCAN MAX 2

1. 【For Engine System】Diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. 【For Transmission】 It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

3. 【For ABS System】Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.

4. 【For SRS System】SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.

5. 【To diagnose Brake System】 if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

6. 【To diagnose Emission System】 if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

7. 【To diagnose Fuel system】 if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

8. 【To diagnose Transmission】 if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

9. 【To diagnose Wiper System】 if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

10: 【To diagnose Light System】 if you see rapid signal blinking or dimming lights. And many more ….

Introduction of supported detailed Function:

–Read fault codes: read and decode the DTCs to identify where the fault location is;

–Clear fault codes: erase the DTCs to turn off the MIL after repairs;

–Retrieve ecu information: allows you to retrieve vehicle information;

–Graph live data stream: view the dynamic data stream to determine vehicle condition

–ECU Coding : Match, learn, or code the new ECU; Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs.

–Active Test ( Bi-directionnal Control ) : Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.

Provides 28 Most Used Maintenance Functions+ Guided Function:

The KINGBOLEN K7 OBD2 Scanner gets advanced 28 most used maintenance functions, such as Brake Reset, Oil Light Reset, SAS Reset, Electric Throttle Relearn, TPMS Reset, DPF Regeneration, Injector Coding, etc. . to do various daily automotive maintenance functions on certain systems, which can reduce repair and maintenance costs.And It also provides you with the Guided Function, especially for VW/AUDI/BMW. Offering on-screen instructions to guide you to operate the maintenance functions step-by-step through the complexities of the situation.

1. Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

2. Elec.Throttle Adaptation
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume.

3. SAS Resets- Steering Angle Reset
To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering. After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recoveringcar body, you must reset the steering angle.

4. Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, inwhich the original low battery fault information will be cleared and battery matching will be done.

5. ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system torestore ABS brake sensitivity. lf the ABS computer, ABS pump, brake master cylinder, brake cylinder, brakeline, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

6. Brake Reset
lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to theon-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

7. DPF Regeneration
DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

8. Gear Learning
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, orcrankshaft flywheel is replaced, or the DTC 'gear not learned” is present, gear learning must be performed.

9. IMMO Service
To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. When the ignition switch key, ignition switch, combined instrument panel, ECu, BCM, or remote control battery is replaced, anti-theft key matching must be performed.

10. Injector Coding
Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identifyinjectors to accurately control fuel injection.

11. TPMS Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.

12. Suspension Matching
This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.

13. AFS Reset
This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjustthe headlamp lighting angle while monitoring the vehicle speed and body posture.

14. A/T Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox isdisassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impactproblem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.

15. Sunroof Initialization
This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.

16. EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

17. ODO Reset
a) ODo reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.

b) Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODo reset after maintenance.

18. Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collidesand the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable, it is required that all new accessories must be replaced, but after performing this function, the data of theairbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and theairbag computer can continue to use.

19. Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

20. A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

21. Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).

22. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECu.

23. AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or flled up, urea reset operation is required.

24. Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

25. Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

26. Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

27. Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover theautomatic ascending and descending function of power window.

28. Language Change
This function is used to change the system language of the vehicle central control panel.

……Continuously updating

(Note: the special functions that can be performed may vary by car model.)

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:

For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.

For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.

For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.

For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.

For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

KINGBOLEN K7 supports ECU Coding(Offline Coding)

Why does the car not work normally after replacing ECUs/ modules?
When an ECU/module is damaged, you have to replace a new one. After replacing the ECU/module, you have to follow the strict procedures of the manufacturer to match, learn, code, or even program it before it functions normally. Otherwise, the car cannot start or some parts cannot work normally.

What can KINGBOLEN K7 Scanner do?
Featuring ECU/Module replacement functions, KINGBOLEN K7 Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track.

ECU Coding: Customize Your Car in Minutes
Same as other KINGBOLEN High-end OE-level scan tool , KINGBOLEN K7 has the capability of ECU coding to change preprogrammed options in the software, helping you customize your car faster as needed.

Optimally code your car by changing some settings to fit your needs, such as setting alarms, doors locking, etc.
Access the ECU to make full use of the hidden features or disable the car’s annoying functions, like activating the auto side mirrors folding function, disabling the automatic engine Start-Stop function, etc.

Provide excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car's performance.
Reprogram the adaptive data for certain components after repairs or replacements.
ECU Online Coding is available for BMW, VW, Porsche, Renault, etc.

Please Note: ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is not universally compatible and varies for different vehicles.

ECU Coding

Used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.You can use KINGBOLEN K7 to stimulate all the possibilities of the vehicles

After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.

Recode Changed Modules/ Optimize Vehicle Performance/ Re-Flash/ Hidden Functions/ Renew ECUs Coordination/ Reprogram/ Adaptive Data/ Improve Fuel Efficiency/ Reduce Power Loss/ Improve the Durability of Mechanical Parts

Active Test (BI-Directional Control)

KINGBOLEN K7 car scanner diagnostic tool Features Full bi-directional control ability, to send commands to vehicle’s systems/components, to verify system input/output without using the vehicle's controls, e.g. turn on the radiator fan, modulate the throttle, open/close windows, operate mirrors, Injector Buz Test,turn on interior & exterior lights, sound horn, test door lock actuators and such.

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests.

The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .

For example , KINGBOLEN K7 have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover.

The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage.

Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

Full OBD2/EOBD2 Function

It also supports all OBD2 test modes,such as read/clear codes,live data stream/freeze frame, I/M Readiness,O2 Sensor Test,etc. It's an ideal choice for the workshop/auto repair shops to do quick automotive repairs and maintenance.

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4) I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability

The other Function of KINGBOLEN K7:

AUTOVIN SCAN: click “diagnose” and “autosearch” after connecting to the vehicle. Then the thinktool mini automotive diagnosti tool will begin to scan the VIN automatically.

One-Key Wifi Update: no need to update on computer. Just click update after connecting wifi, then all softwares will start to update. (you will enjoy lifetime update through one-key wifi update, which is rare in diagnostic market as other diagnostic tools only offer one year free update.)

One-Key Screenshot: use the feature to capture and save the diagnostic process for you rather than take pictures by telephone.

One-Key Screen Recorder: you will hardly find this feature on other scanners. This is one of the biggest advantage of thinktool Mini, which will be a big surprise to those who like recording video of the whole diagnostic process. With this feature, you don't need to hand up a telphone during the diagnosis.

Featuring AutoVIN Function:

This diagnostic scanner has an Auto-VIN function. It can automatically identify the vehicle's VIN number and detail models and then enter the vehicle diagnostic menu. One-click 'Health Report' for a complete vehicle system scan to generate a detailed vehicle health report after diagnosis. Diagnostic reports records can be viewed and shared. Support a maximum of 4 live data to be merged into a graphic for easier comparison and data records to better monitor vehicle performance and analyzes abnormal parameters.

(Note: Some models may not support automatic scanning, please manually select the model software to complete the vehicle diagnosis. )

KINGBOLEN K7 Parameter:

Screen : 7 inch 1280*720 Touch Screen

Memory : 2GB + 32GB

Battery : 3000mA , 7.6V

Rear Camera : 1300W pixel

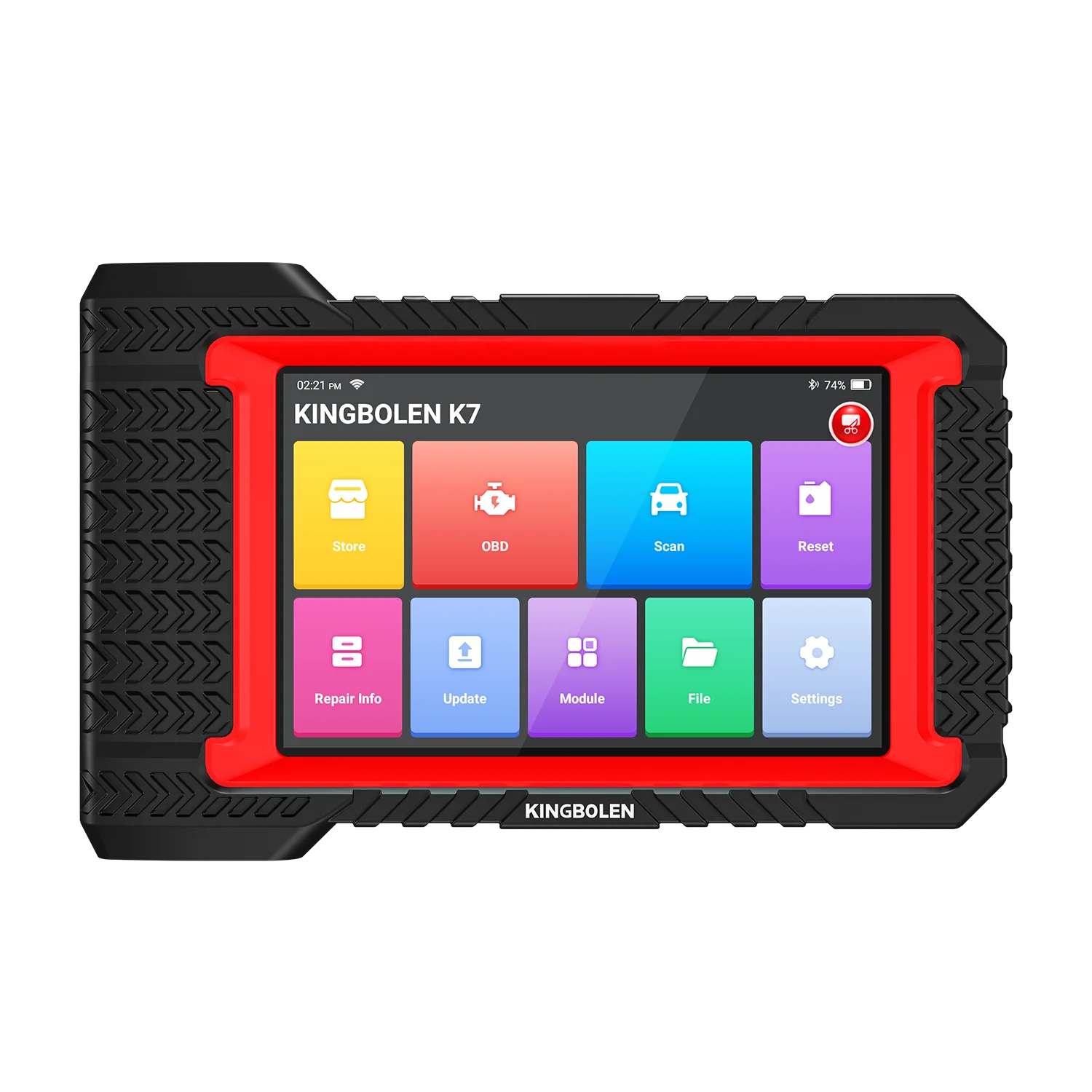

Product Show:

KINGBOLEN K7 After-service:

Update : Lifetime Free Update

Warranty : 5 Years Warranty

Technician supports : Lifetime technician Free Support

KINGBOLEN K7 Packing List:

1PCS * 7 inch K7 Tablet
1PCS* Dongle
1PCS * Handbag black
1PCS * Multilingual manual (English, French, Spanish, German, Russian, Italian, Portuguese, Polish, Japanese)
1PCS * carton box
3PCS * Other Accessories

FAQ

Here we list some common questions and answers related to this tool.

Q: Why does it have no responses when connected to a vehicle?
A: Check whether the connection with the vehicle diagnostic port is proper, whether the
ignition switch is on, and whether the tool supports the vehicle.

Q: Why does the system stop while reading the data stream?
A: This may be caused by loose diagnostic connection. Please unplug the connector
and reconnect it firmly.

Q: Communication error with vehicle ECU?
A: Please confirm:
1. Whether diagnostic connector is correctly connected.
2. Whether ignition switch is ON.
3. If all checks are normal, please send vehicle year, make, model and VIN number to
us by Feedback function.

Q: Why does the screen fl ash when the engine ignition starts?
A: It is normal and caused by electromagnetic interference.

Q: How to upgrade the system software?
A: 1. Start the tool and ensure a stable Internet connection.
2. Go to “Settings” -> “App Update”, click “OTA” and then click “check version” to
enter the system upgrade interface.
3. Complete the process by following the instructions on the screen step by step. It
may take a few minutes. After successfully completing the upgrade, the tool will
automatically restart and enter the main interface.
