What's the difference between K10, K10 PRO, K10 Elite？

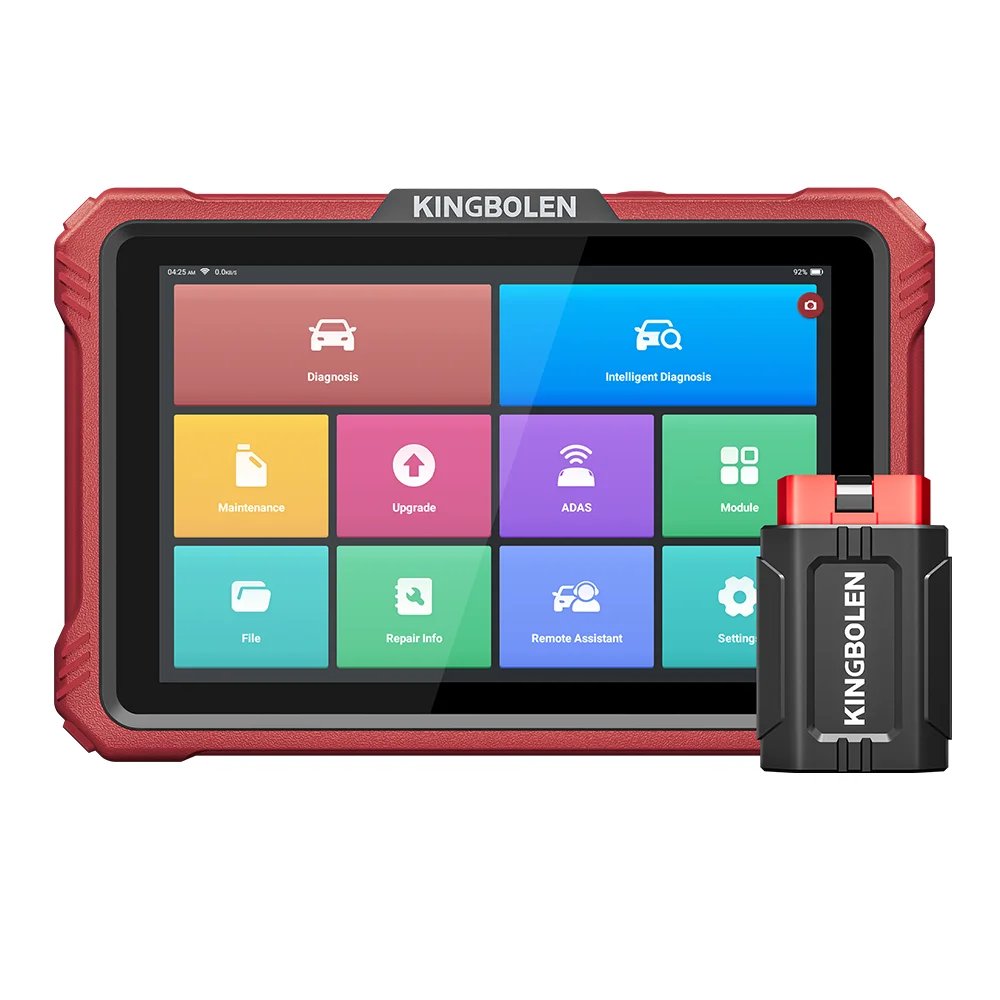

* Different connection methods: K10/ K10 PRO are Bluetooth connections; K10 Elite is a diagnostic cable connection

* K10 includes non-16 pin adaptor connectors; K10 PRO/K10 ELITE there is no non-16 pin adaptor connectors

* K10 does not support CAN FD, DOIP; K10 PRO/ K10 Elite support CAN FD, DOIP

Money-saving tips for EU buyers

For EU customers, please place an order from the Chinese warehouse, and we will ship from the EU warehouse, which is cheaper and faster!

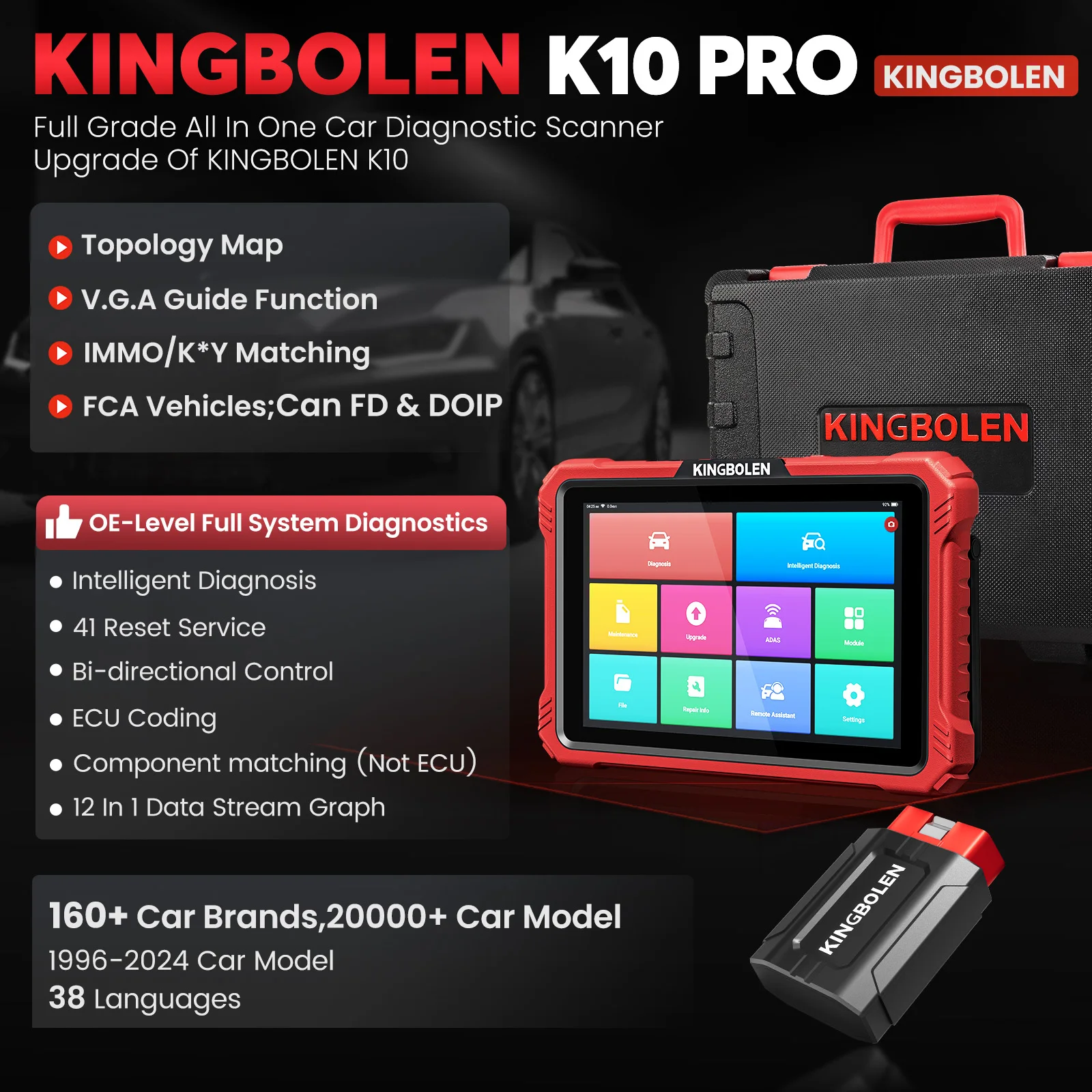

2025 New Arrival Global Version – KINGBOLEN K10 PRO, K10 Elite, Android 10 All System ALL Function Car Diagnostic Tools, Bi-directional Scan Tool, ECU Coding, Matching, Active Test, Topology Map, Gudie functions, 40+ Reset Maintenance Function, RAM 4GB+ ROM 128GB, 2 Years Free Update + 5 Years Warranty

KINGBOLEN K10 PRO, K10 Elite are upgraded versions of K10, adding CAN FD and DOIP protocols

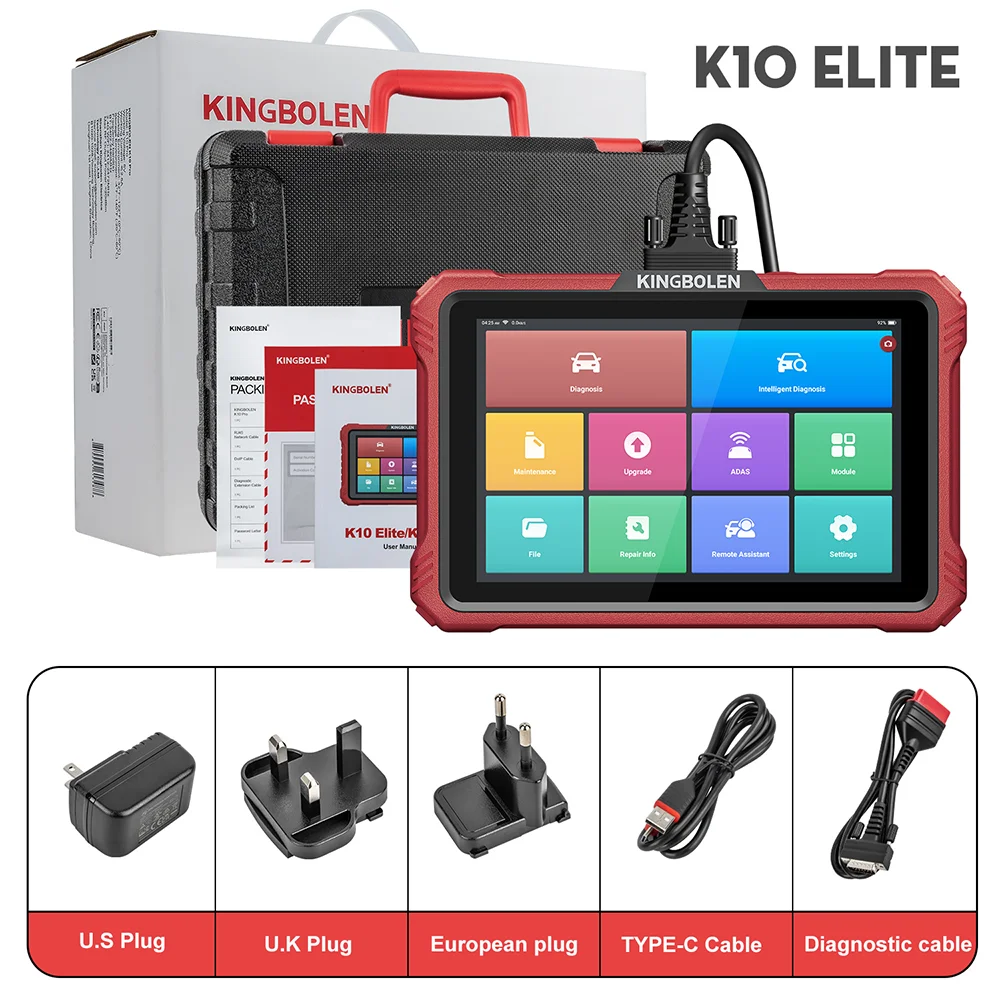

The only difference between K10 PRO and K10 Elite is the connection method.

K10 PRO, K10 Elite add CAN FD, DOIP protocols, it supports For GM after 2020 and other New cars !

Support CAN FD protocol cars connecting directly, need Purchase extra DOIP Connector, the application of new protocols CAN FD/ DoIP boosts 2x faster vehicle communication between modules, get much higher data rates & faster diagnostic speed than ever, for GM vehicles 2020-, and compatible for BMW F G Chassis models, for Jaguar & for Land Rover after 2017, for Volvo after 2018.

CANFD :

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

DOIP

With Diagnostics over DOIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes K10 PRO, K10 Elite save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications.

Compatible with for BMW (for F&G chassis), for Volvo models (2018 later), for Land Rover & for Jaguar models (2017 later).

K10 PRO, K10 Elite, Freely switch between 38 Languages

English, Arabic, Bulgarian, Polish, Persian, Danish, German, Russian, French, Finnish, Khmer, Korean, Dutch, Czech, Croatian, Romanian, Bengali, Burmese, Norwegian, Portuguese, Japanese, Swedish, Serbian, Sinhala, Slovak, Slovenian, Tamil, Thai, Turkish, Urdu, Spanish, Greek, Hungarian, Italian, Hindi, Indonesian, Vietnamese, Traditional Chinese

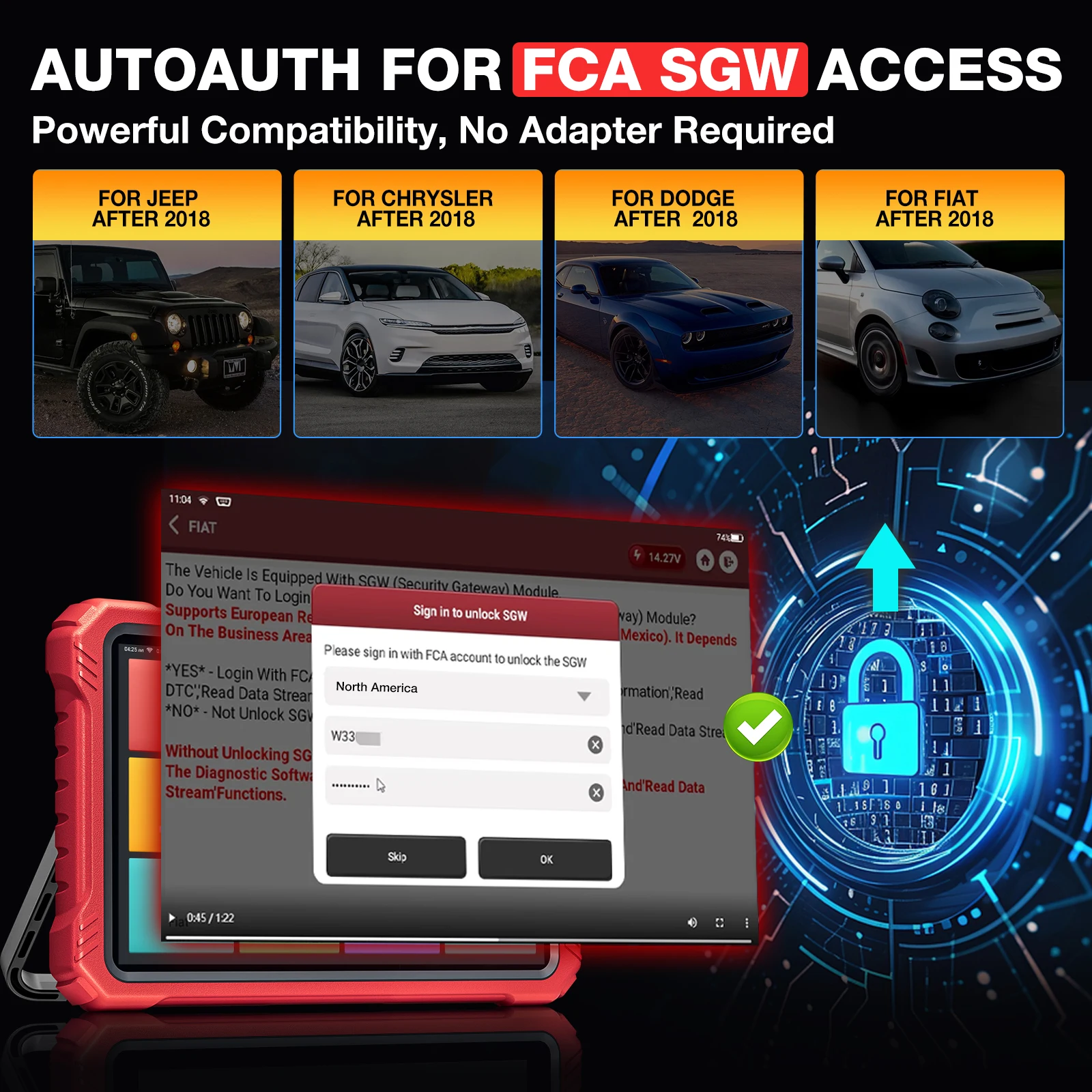

AutoAuth For FCA/ SGW (Brand Select “THINKCAR”), need to buy FCA Account by yourself

Use the latest software update function AutoAuth to provide OBDII diagnosis, active testing, calibration, etc. for modern FCA/SGW vehicles, making the diagnostics more secure.

Applicable to FCA vehicles equipped with a security gateway module (SGW) in 2017 and later (Please note that all regions need to pay to use)

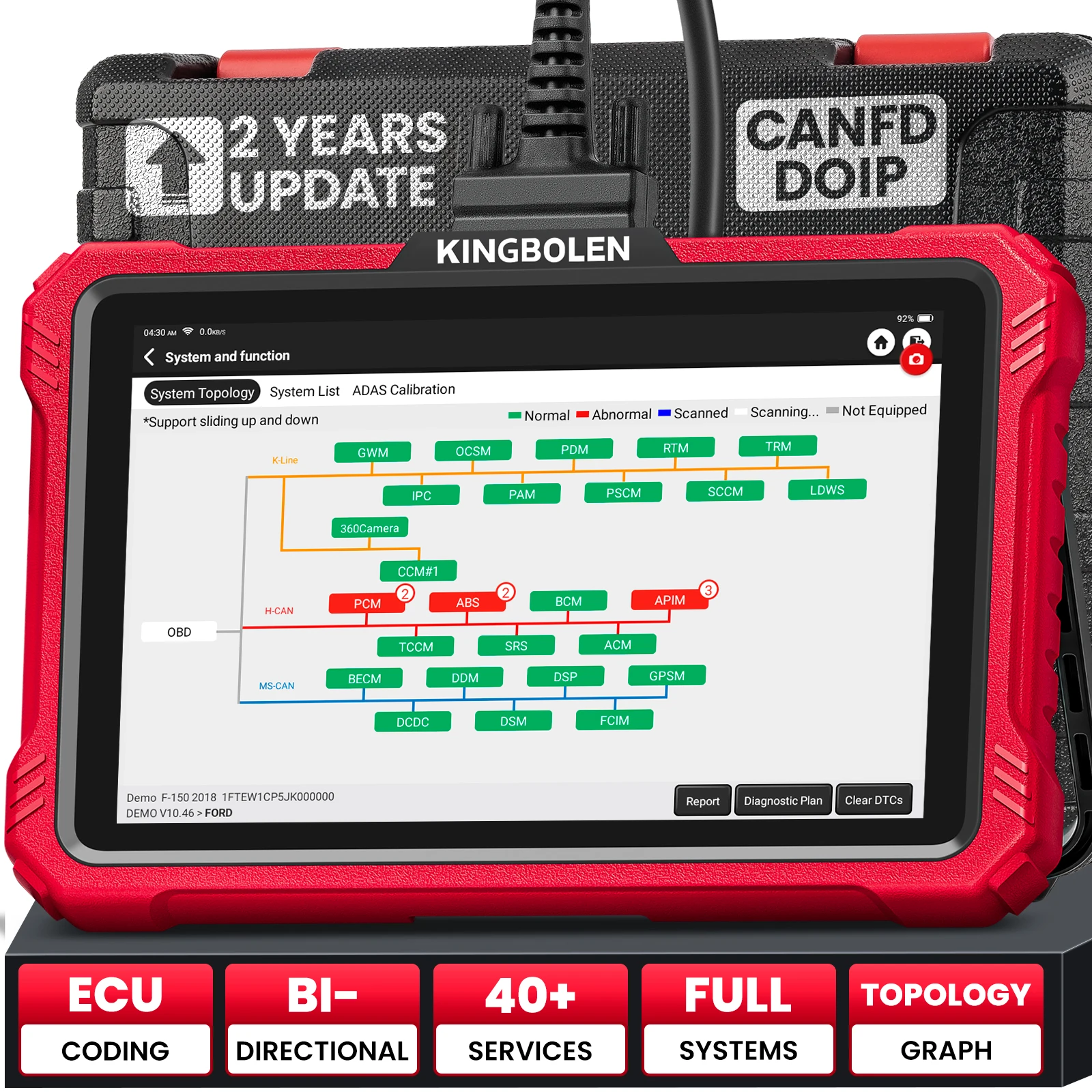

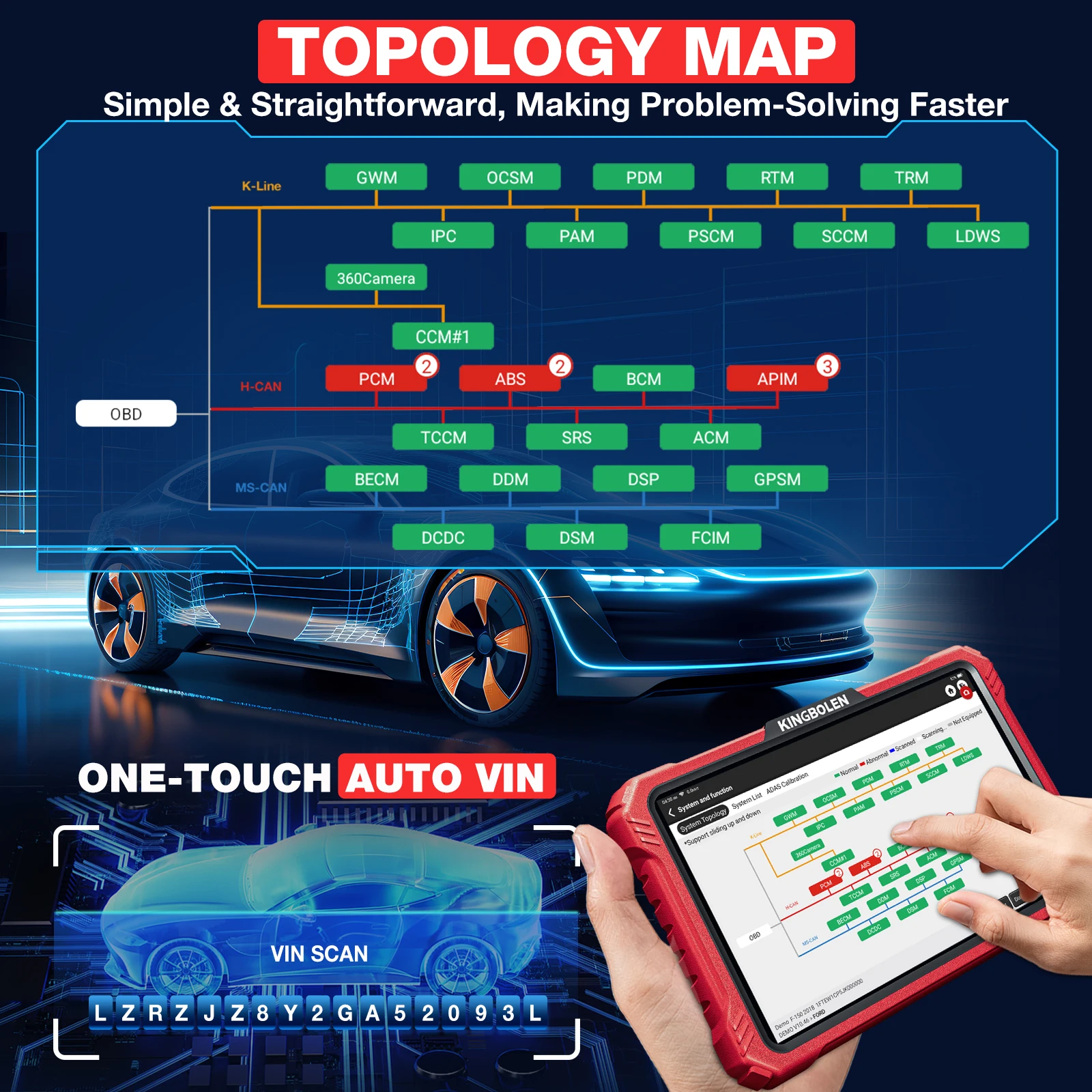

Unique Topology Map Design

The topology diagram shows the system distribution diagram of the vehicle control module. As the complex communication network is generated into a color coded topology display, you can simply click the module to check the fault and quickly determine the root cause. The diagnosis of the system topology diagram indicates whether the system is normal, faulty or not equipped, which can simplify the trouble shooting workflow.

OE-Level ALL Systems Diagnostic for your car

Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions. The diagnosis function is powerful and the test result is accurate.

Support System Including: ABS System, Engine System, SAS System , TPMS System, IMMO System, Battery System,Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, etc.

ECU Coding

Used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.You can use KINGBOLEN K10 to stimulate all the possibilities of the vehicles.

After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.

Recode Changed Modules/ Optimize Vehicle Performance/ Re-Flash/ Hidden Functions/ Renew ECUs Coordination/ Reprogram/ Adaptive Data/ Improve Fuel Efficiency/ Reduce Power Loss/ Improve the Durability of Mechanical Parts…..

· Offline Coding: Compatible for Mercedes-Benz cars;

· Online Coding: Compatible for Volkswagen, for Audi and for BMW cars;

· Unlock the hidden functions: To activate or disable some functions:

1. Deactivating the Start/ Stop function;

2. Beeping when unlocking and locking;

3. Locking the doors once a certain speed is reached(e.g. from 15 km/h);

4. Seatbelt warning sounds;

5. Mirrors automatically folding and unfolding;

6. Closing the windows after locking the car door with the key, etc.

…

Active Test (Bi-Directional Control)

KINGBOLEN K10 car scanner diagnostic tool Features Full bi-directional control ability, to send commands to vehicle’s systems/ components, to verify system input/ output without using the vehicle's controls,

For example, Turn on the radiator fan, modulate the throttle, open/ close windows, operate mirrors, Injector Buz Test, turn on interior & exterior lights, sound horn, test door lock actuators, etc.

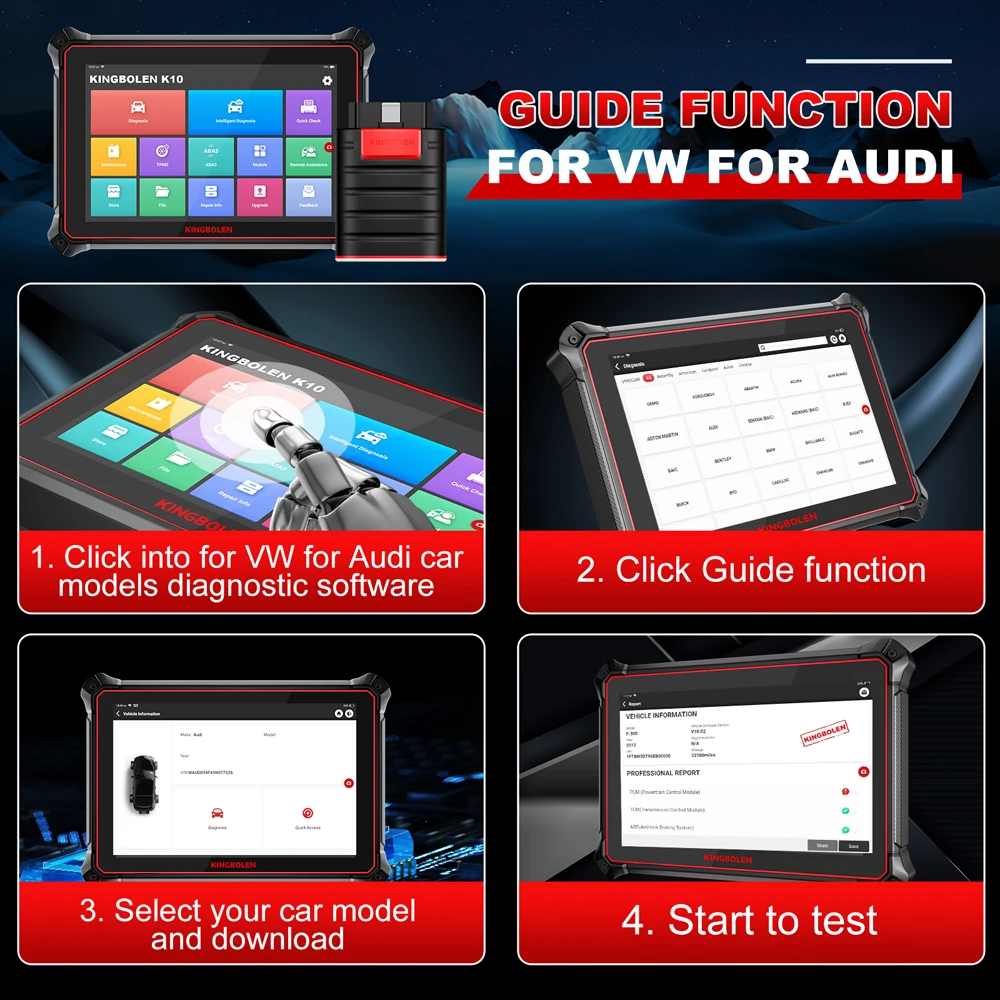

Guidance Function for Volkswagen/ Audi/ Skoda/ Seats

It can provides step-by-step maintenance guide for Volkswagen/Audi/Skoda/seats.

40+ Maintenance reset function, Almost all maintenance functions are covered. Will continue to update ！

Please note: not all vehicles support all these reset functions.

If you're not sure if your vehicle is supported, please send us your model and year and the reset function you want to know about, and we will verify it for you.

1. Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

2. Elec. Throttle Adaption

Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume. Situations when throttle matching is needed:

a. After replacing the electronic control unit, the relevant characteristics of the throttle operation have not been stored in the electronic control unit

b. After the electric control unit is powered off, the memory of the electric control unit's memory is lost.

c. After replacing the throttle assembly, you need to match the throttle.

d. After replacing or disassembling the intake port, the controlling of the idle speed by the coordination between the electronic control unit and the throttle body is affected.

e. Although the characteristics of the idle throttle potentiometer have not changed, the intake volume has changed and the idle control characteristics have changed at the same throttle openings.

3. Steering Angle Reset (SAS Reset)

To reset the steering angle, first find the relative zero-point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.

After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

4. Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

5. ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

6. Brake-pad Reset

If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

7. DPF Regeneration

DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

8. Gear Learning

The crankshaft position sensor leams crankshaft gear machining tolerance and saves to the computer to more accurately diagnose engine misfires. If gear learning is not performed for a car equipped with Delphi engine, the MIL turns on after the engine is started. The diagnostic device detects the DTC P1336 'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car.

After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'gear not learned' is present, gear learning must be performed.

9. IMMO Service

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote-control battery is replaced, anti-theft key matching must be performed.

10. Injector Coding

Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

11. TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.

12. Suspension Matching

This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.

13. AFS Reset

This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

14. A/T Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.

15. Sunroof Initialization

This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.

16. EGR Adaption

This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

17. ODO Reset
a. ODO reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b. Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODO reset after maintenance.

18. Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collides and the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable, it is required that all new accessories must be replaced, but after performing this function, the data of the airbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and the airbag computer can continue to use.

19. Transport Mode
In order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote-control key, etc. At this 24
time, the transport mode needs to be deactivated to restore the vehicle to normal.

20. A/F Reset
This function is applied to set or leam Air/Fuel ratio parameters.

21. Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).

22. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

23. AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

24. Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

25. Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

26. Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

27. Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

28. Language Change
This function is used to change the system language of the vehicle central control panel.

29. AC System Relearn/ initialization

If the ECU or actuator of the vehicle air conditioner is replaced, or the memory of the ECU memory is lost, air conditioner initialization learning is needed.

30. Intelligent Cruise Control System
For replacement of intelligent cruise control system of vehicle and matching after repairing.

31. Engine Power Balance Monitoring
At the power stroke of each cylinder, power balance monitors crankshaft acceleration, thus determining the relative power provided by each cylinder.

32. Motor Angle Calibration
There is a deviation between the rotor position detected by the angle position sensor of the motor and the actual rotor magnetic field position, so it is necessary to calibrate the motor angle.

33. High Voltage Battery Diagnostics
For diagnosis and state information detection on high-voltage accumulator.

34. Gas Particulate Filter Regeneration (GPF Regeneration)
After long-term use of the particle catcher, fuel consumption can be increased, engine output power can be decreased, then in this case, the GPF needs to be replaced or regenerated.

35. Reset ECU
36. Reset FRM
37. Reset CLUTCH
38. Reset GATE
39. Reset URBO
40. RESET RL-SENSOR

…. Will continue to update more resets

IMMO PROG (optional)

Anti-theft editor supports vehicle key chip read and write, EEPROM chip read and write, MCU chip read and write, engine ECU and transmission ECU EEPROM and FLASH read and write.

12-in-1 Live Data Stream

Display real-time data and parameters from vehicle ECU. Select the necessary items (up to 12 items can be selected at the same time), the screen will immediately display the waveform corresponding to these items, and different items will be marked with different colors. And has the Screen Recorded Function, which can record during the use of the KINGBOLEN K10 to record the diagnosis results at any time.

ADAS Function

Advanced driver assistance systems (ADAS) is an electronic component in vehicles that include a variety of vehicle safety functions such as automatic emergency braking (AEB), lane departure warning (LDW), lane keeping assistance, blind spot elimination, night vision cameras, and self-adaptive lighting. For this function, it is necessary to use the ADAS calibration device produced and activate ADAS software.

Notes: ADAS function requires additional hardware (optional), which needs to be purchased.

With THINKCAR brand accessories, it supports more expansion functions

The device adopts a unique modular design to meet various application scenarios, including diagnostic module, printer, videoscope, work light, thermal imager, scope box, moduledock and TPMS tool.

* Endoscopy Extension：helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment.

* Printer Extensions (USB Printers): Connect to THINKCAR USB printer to quickly print diagnostic reports

* TPMS extension: with THINKCAR TPMS G2, a professional tire pressure diagnostic tool that integrates TPMS sensor activation, reading, learning and pro-gramming. It activates reading tire pressure information by receiving signals at low or high frequencies. Check for abnormal conditions in time to prevent tire pressure problems.

* Oscilloscope Extensions:

* Battery Tester Installation (Bluetooth): work with the device to complete tire pressure diagnosis related functions.

Quick Check

It adopts smart detection mode. After the vehicle is connected, the system will automatically recognize the vehicle information, automatically check the vehicle, and automatically generates a report. Automatic printing can be set so that no human intervention is needed throughout the process.

Remote Assistance, Our professional team to help you solve maintenance problems

In this function, you can request remote assistance through third-party software. By sending your device ID number to the remote technician or after-sales personnel, you can authorize the other party to remotely operate the device, so as to guide you to the problems encountered in the process of using the device.

Support Intelligent Diagnosis and Auto VIN

Connect the vehicle first, tap “Intelligent Diagnosis'' on the homepage, the device will start the smart diagnosis program and automatically read the vehicle VIN.

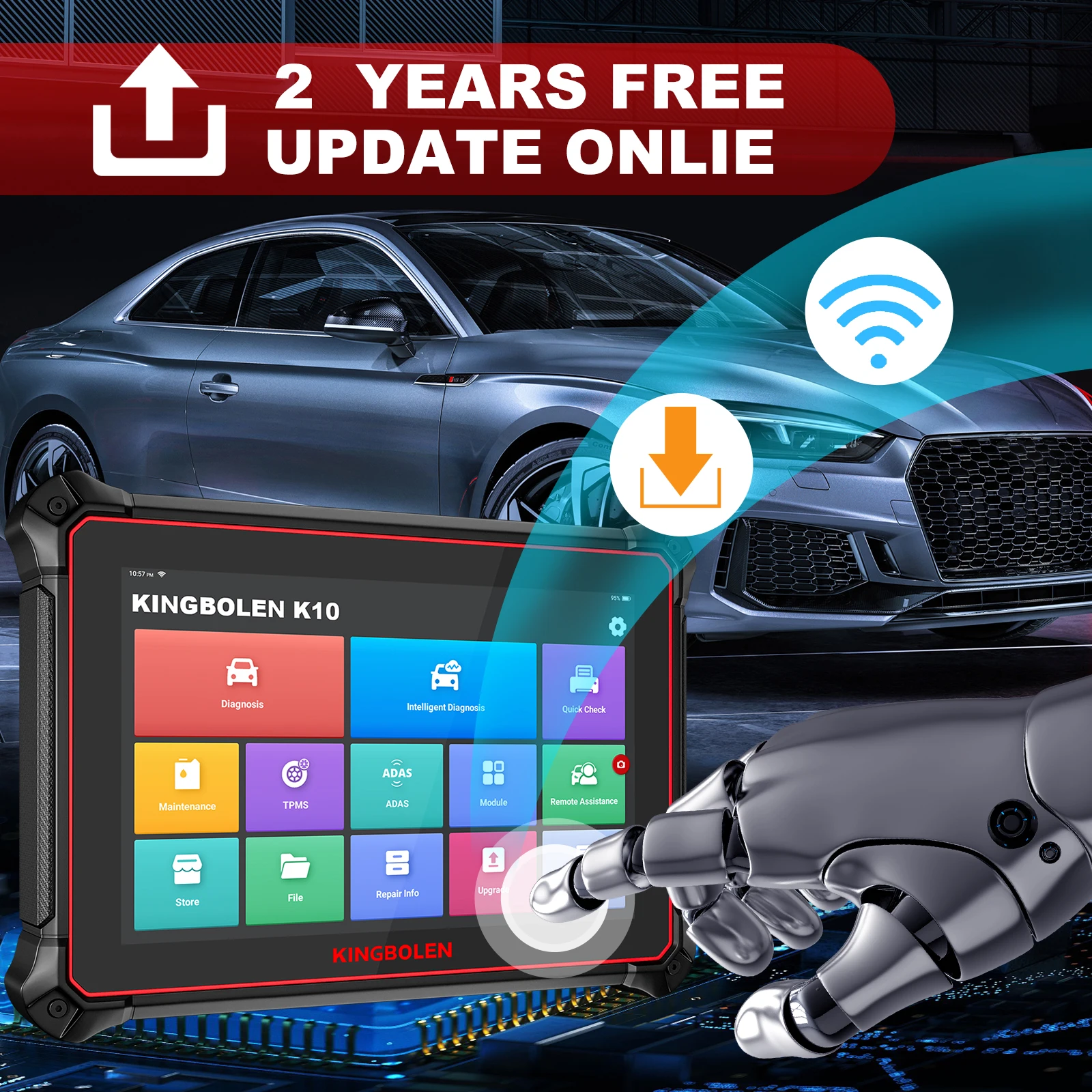

2 Years Free Update Online

comes with a 2-year update. One-Touch update via WiFi to enjoy more functions, get wider available vehicle coverage, add more languages, and improve the performance.

* You can still use your device after 2 years and it won't be locked. You need to upgrade if you want to use new software.

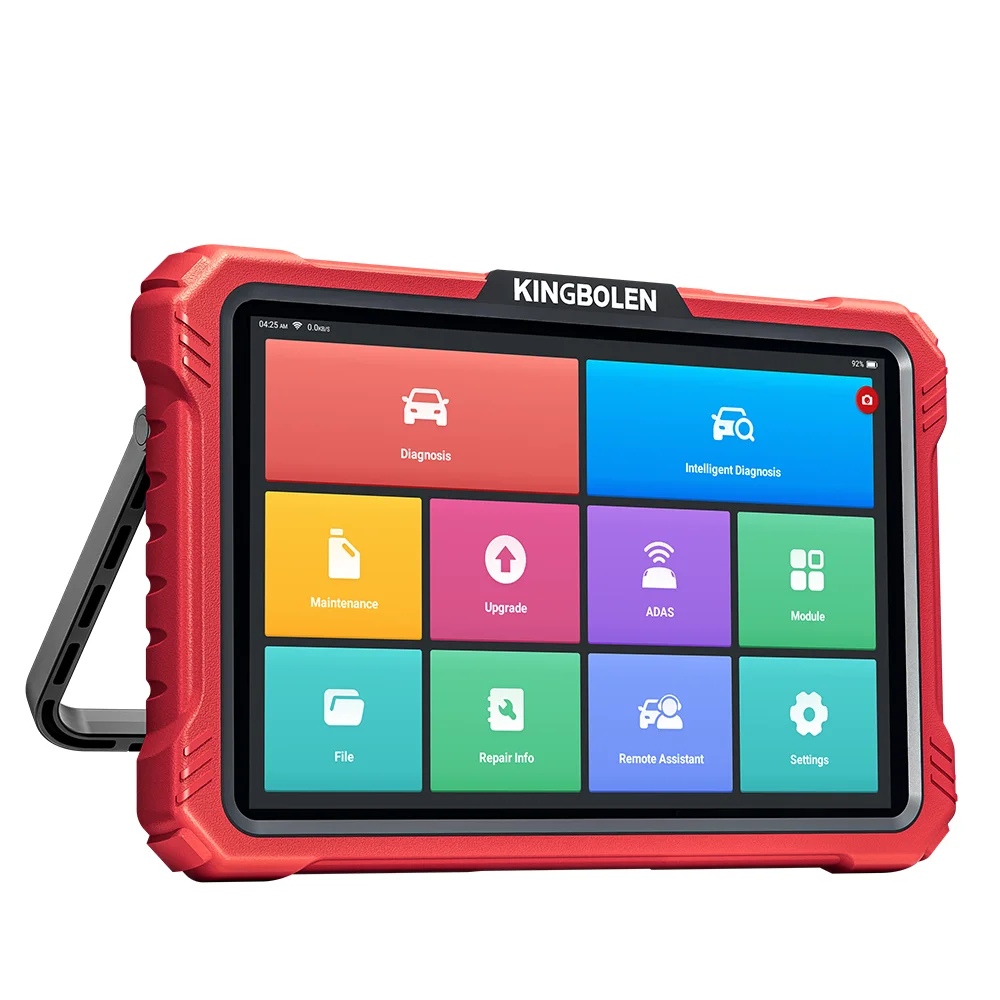

K10 Hardware Configuration

* Tablet size: 10 inches, 1280*800
* System version: Android 10
* CPU version: MT8365
* Running memory: 4GB
* Storage memory: 128GB
* Battery capacity: 3.7V/12600mAh,
* Camera: rear 800W
* Wifi network: 2.4GHz, 5.0Ghz dual-band
* Packing size: 468*320*143mm
* Product gross weight: 5.27KG
* Charging power: 5.0V — 2.5A 12.5W

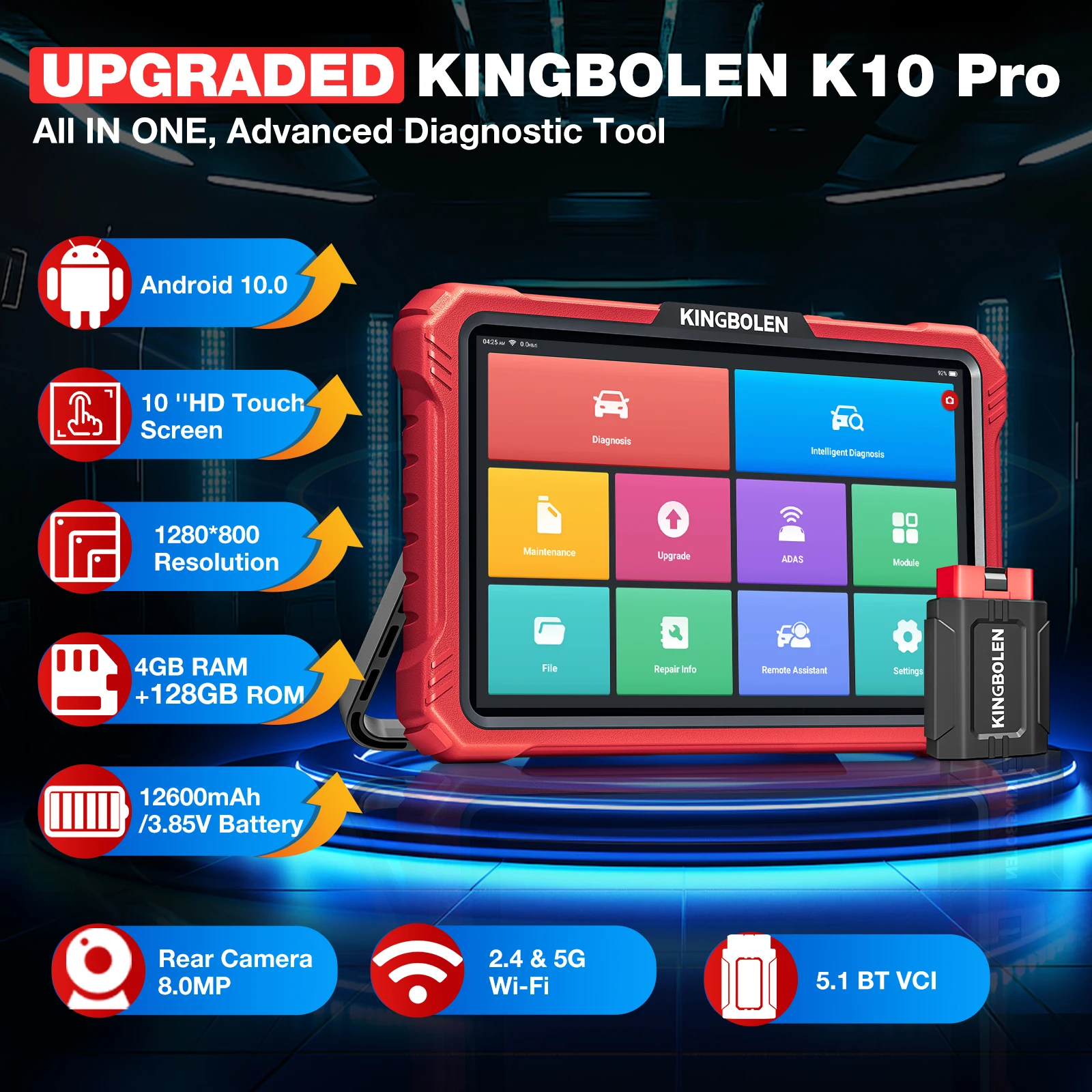

K10 PRO, K10 Elite Powerful Hardware Configuration

* Tablet size: 10 inches, 1280*800
* System version: Android 10
* CPU version: MT8365
* Running memory: 4GB
* Storage memory: 128GB
* Battery capacity: 3.7V/12600mAh,
* Camera: rear 800W
* Wifi network: 2.4GHz, 5.0Ghz dual-band
* Packing size: 468*320*143mm
* Product gross weight: 5.27KG
* Charging power: 5.0V — 2.5A 12.5W

K10 PRO, K10 Elite Powerful Hardware Configuration

Covering 99% of global car models

For Aston Martin
For Audi
For Ford (Australia)
For Holden (Australia)
For BAIC/ For Senoua (BAIC)/ For Weiwang (BAIC)/ For BJEV
For MERCEDES-BENZ
For BMW/ For Rolls Royce/ For Mini
For Fiat (Brazil)
For GM (Brazil)
For Changan
For Citroen
For CMC
For Changhe
For Chrysler
For Daewoo
For Daihatsu
For DFSK/For Fengguang (For Dongfeng)
For DR
For Dodge
For GWM
For Jeep
For Soueast
For Ferrari
For Fiat
For Abarth
For Alfa Romeo
For Lancia
For BYD
For Fuso
For Foton
For GAZ
For GM
For Chevrolet
For Cadillac
For Buick
For Hafei
For Shineray
For Hino
For Haima
For Honda/Acura
For Brilliance
For Hyundai
For Hyundai Plus
For IKCO
For Force (Indian）
For Mahindra (India)
For Maruti (India)
For Tata (India)
For JMC
For Iveco
For IZH
For JAC/JAC Refine
For Gonow
For Geely (Customized)
For Jinlong
For Joylong
For Isuzu/Isuzu (Thailand)
For KIA
For KIA (Korea)
For Land Rover
For Jaguar
For Lifan
For SGMW/ United Pakistan
For Luxgen
For Mahindra
For Perodua (Malaysia)
For Proton (Malaysia)
For Maruti
For Maserati
For Maxus
For Mazda
For Mitsubishi
For MVM
For Nissan/For Infiniti/For GTR (Nissan)
For Opel/For Vauxhall/For Opel (South Africa)
For PAZ
For Perodua
For Peugeot
For Porsche
For Proton
For Chery
For Qoros
For Renault/For Dacia/For Samsung Renault
For Rover
For Saab
For MG (SAIC)
For Saipa
For Samsung
For Seat
For SeAZ
For SGM/ Buick (China)
For Skoda
For Smart
For Spark
For Sprinter
For Ssangyong
For Subaru
For Suzuki
For Tata
For TESLA
For Toyota/Lexus
For Trumpchi
For UAZ
For Ford
For VAZ
For Volvo
For VOLKSWAGEN
For Weili
For FAW (Tianjin)
For Xinkai
For ZAZ
For Polarsun
For Zotye
For ZX Auto

KINGBOLEN K10 Packing List

1Pc * KINGBOLEN K10 Tablet
1Pc * VCI Diagnostic Connector
1PC * OBD 1 Adaptor
1PC * Diagnostic Extension Cable
1PC * Clipper Cable (LCDSS)
1PC * For Cigarette Lighter Cord
1PC * 3-IN-1 Charger (Matched with US, UK, and EU Plugs)
1PC * Charging Cable
2PC * Fuse (AC250V/5A, 6*30mm)
4PCS * Fuse (AC250V/5A, 5*20mm)
1PC * TA-17
1PC * TA-22
1PC * BZ-37
1PC * B-20
1PC * HA-3
1PC * G/V-12
1PC * FT-3
1PC * CR-6
1PC * NN-14+16
1PC * M/H-12+16
1PC * User Manual (English)
1PC * Packing List
1PC * Password Letter

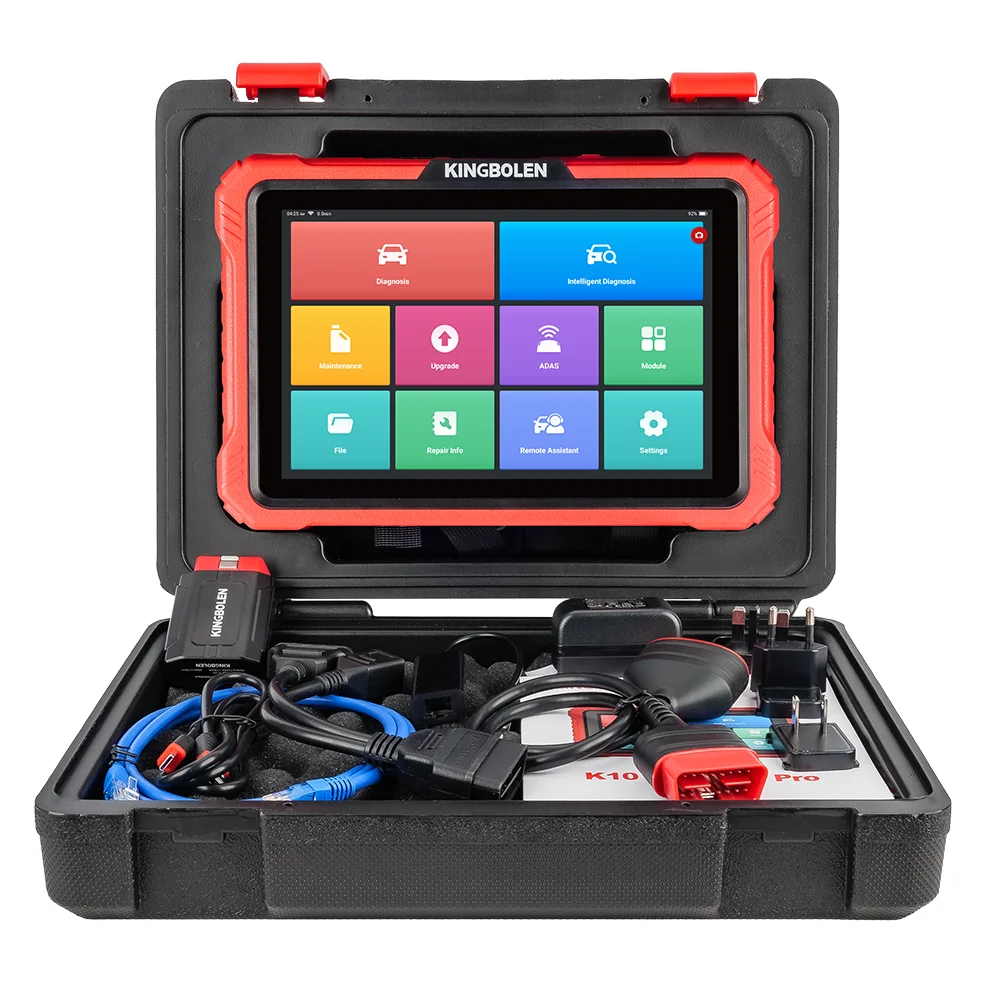

KINGBOLEN K10 PRO Packing List

1pc * KINGBOLEN K10 PRO Tablet
1pc * Ediag Pro connector
1pc * DoIP cable
1pc * RJ45 Network Cable
1pc * USB 2.0 to 10/100 Network Cable
1pc * Diagnostic extension cable
1pc * Type C cable
1pc * 3-in-1 Charger (Matched with US/UK/EU Plus)
1pc * packing list paper
1pc * password letter
1pc * User Manual
1pc * Portable protective box

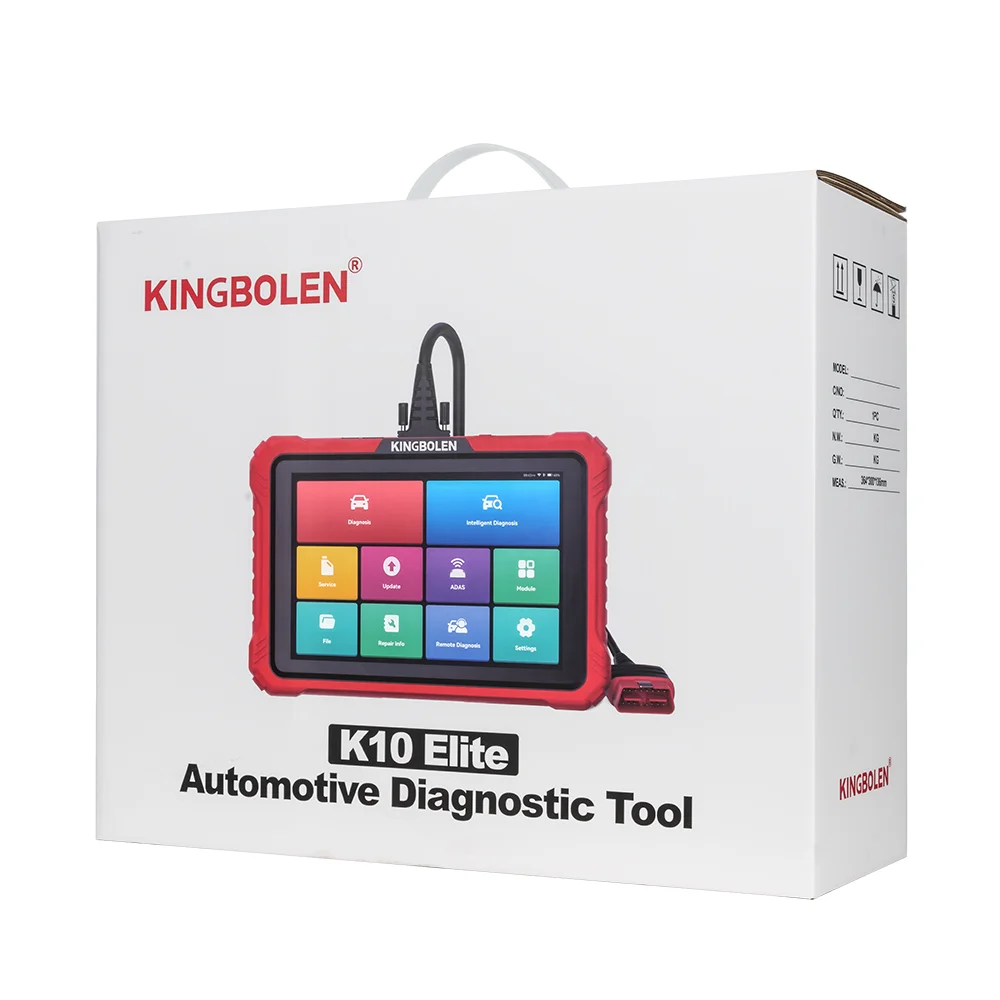

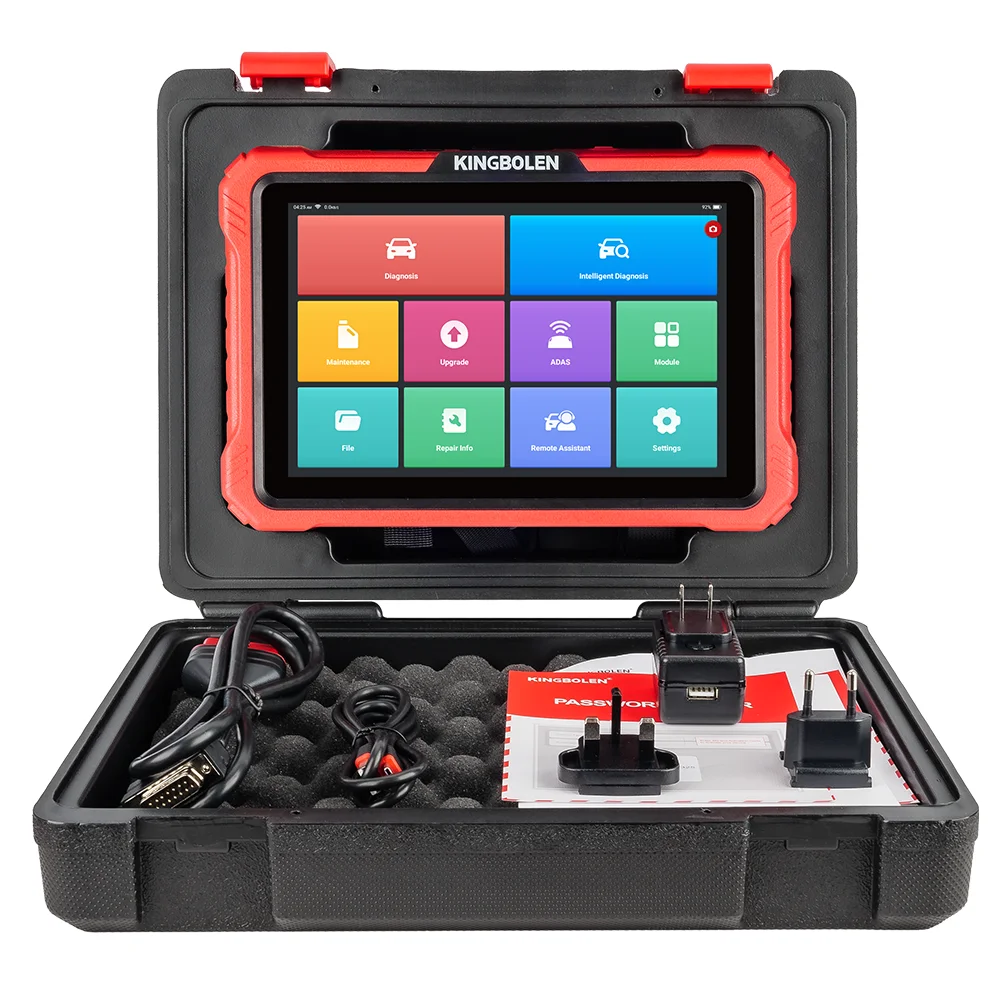

KINGBOLEN K10 Elite Packing List

1pc * KINGBOLEN K10 PRO Tablet
1pc * DB15 to OBD 16 Diagnostic cable
1pc * DoIP cable
1pc * RJ45 Network Cable
1pc * USB 2.0 to 10/100 Network Cable
1pc * Diagnostic extension cable
1pc * Type C cable
1pc * 3-in-1 Charger (Matched with US/UK/EU Plus)
1pc * packing list paper
1pc * password letter
1pc * User Manual
1pc * Portable protective box
