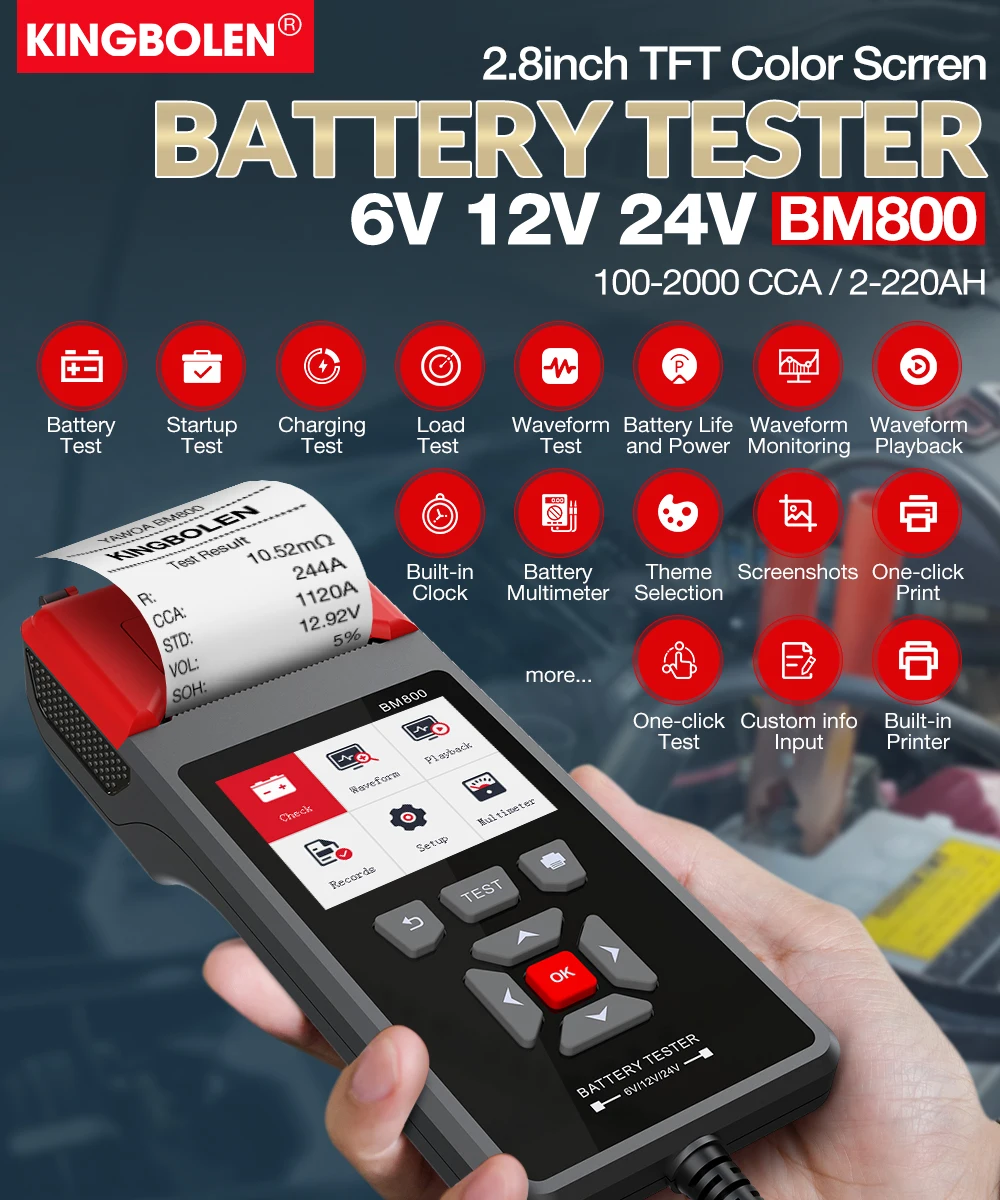

KINGBOLEN BM800 Car Battery Tester with Print function 6V 12V 24V Battery Analyzer Cranking Test Charging Test Max Load

KINGBOLEN BM800 Color Screen Professional Car Battery Tester with Printer 6V 12V 24V Voltage Charger Analyzer Charging Cricut Load Tools
BM800 is the most high-end battery diagnostic equipment with printer function that we have launched at present, with powerful functions and simple operation.

Top Reasons to choose the BM800
1. 【Powerful Diagnostic Function】BM800 support Battery Test, Startup Test, Charging Test, Load Test, Waveform Test , Battery Life and Power Test, Waveform Monitoring, Waveform Playback, 10 Waveform Record, Screenshots Function, Theme Selection, Battery Multimeter, Built-in Clock, Built-in Printer, Custom info Input, One-click Test, One-click Print, Reverse Polarity Test, Life-time Upgrade.

2.【Color Screen & One-Click Data Printing】With built-in thermal printer, you can get a diagnostic receipt in seconds and share it with your customers, which only needs one press. With its color screen and unique pattern design, it will be easier to view data.

3. 【Support 10 languages】Russian, Portuguese, English, German, French, Spanish, Italian, Japanese, Polish, Chinese to meet your different needs.

4. 【Multi-language printing】BM800 not only supports diagnosis in 10 languages, but also supports printing in 10 languages.

5.【Reverse Polarity Test】BM800 does not distinguish between positive and negative poles, and can perform reverse connection test.

6. 【Real-time display of voltage fluctuations】you can view the current, minimum, and maximum voltages.

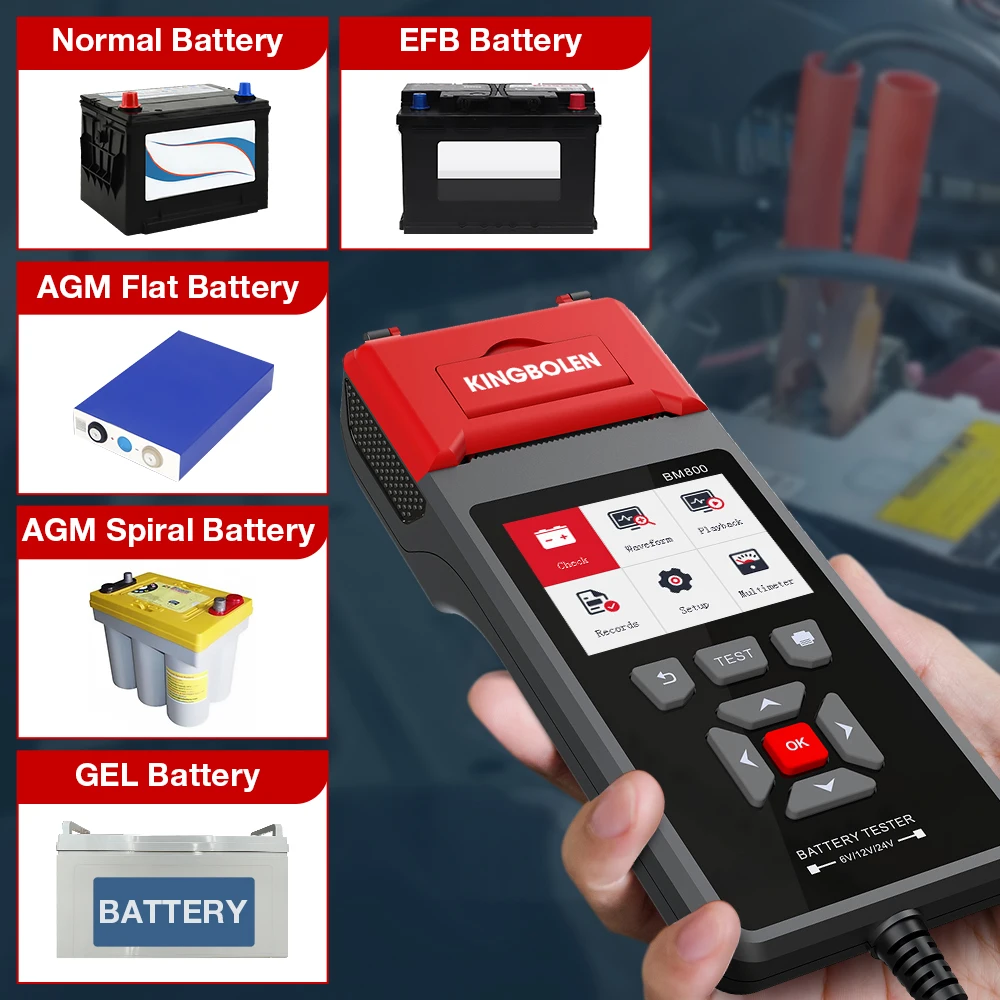

7. 【Support a variety of batteries】BM800 car battery tester support regular flooded, AGM flat plate, AGM spiral, GEL and deep cycle batteries.

8. 【Support 10 standards】CCA BCI CA MCA JIS DIN IEC EN SAE GB

9. 【Life-time Free Update】It support life-time Free Update

10.【Durable Case packaging】BM800 comes with durable box packaging, you can better protect your equipment.

BM800 not only supports diagnosis in 10 languages, but also supports printing in 10 languages.
It is more intuitive and efficient than other devices that only print in one language.

English, French, Spanish, Italian, Portuguese, Russian, German, Polish, Japanese, simplified Chinese, traditional Chinese.

Four Main Function of BM800 Battery Tester 6V 12V 24V
1. Startup test:

* lf the starting voltage reading is greater than 9.6v (for a 24V system, the reading is greater than16V), it means that the walking system is good.

* lf the starting voltage reading is less than 9.6v (for a 24V system, the reading is less than 16V), it means there is a problem with the starting system.

* Please check related parts such as connection points, wires and starters, and battery terminals forcorrosion.

2. Charging Test

* lf the voltage reading is greater than 15.0V ( for a 24V system, the reading is greater than 30.00-v ), please check the voltage regulator.

* lf the voltage reading is less than 13.3V ( for a 24V system, the reading is less than 26.60V), please check the connection points, wires and engine.

3. Battery Test

it is recommended to replace the Battery when the Battery life is less than 45%.

4. Loading Test

Check whether the battery has enough load capacity to run all electrical equipment such as playing car music etc.

This handy auto battery analyzer makes sure your summer road trips won’t end on a flat.

Test results at a glance
Simple and clear UI interface design, better experience during

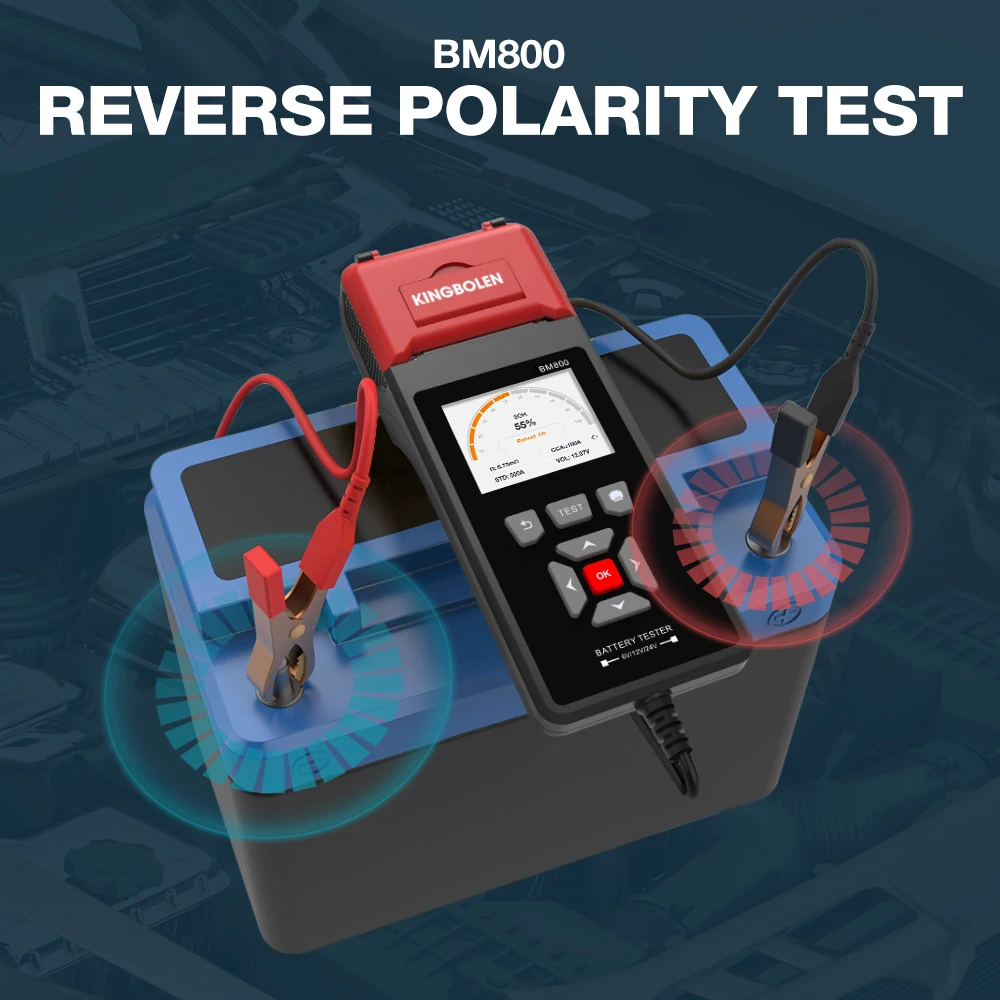

Reverse Polarity Test
BM800 does not distinguish between positive and negative poles. Even if the positive and negative poles are connected incorrectly, the diagnosis can be carried out normally, and the battery and equipment will not be damaged.

Real-time Waveform Monitoring
Real-time display of voltage fluctuations, you can view the current, minimum, and maximum voltages.

1. Automatic Storage: Can store 10 waveform monitoring records.

2. Waveform Feedback: Can view saved waveform data.

3. One-click clear: Delete all saved waveform data.

BM800 Packing List

1 x Battery Analyzer BM800 Main Unit
1 x User's Manual
1 x USB Cable
3 x Thermal Paper (Noted: One of the volumes has been installed in the BM800 mainframe.)
1 x carton Box
1 x Box

* The size of the printing paper is 57*30mm
