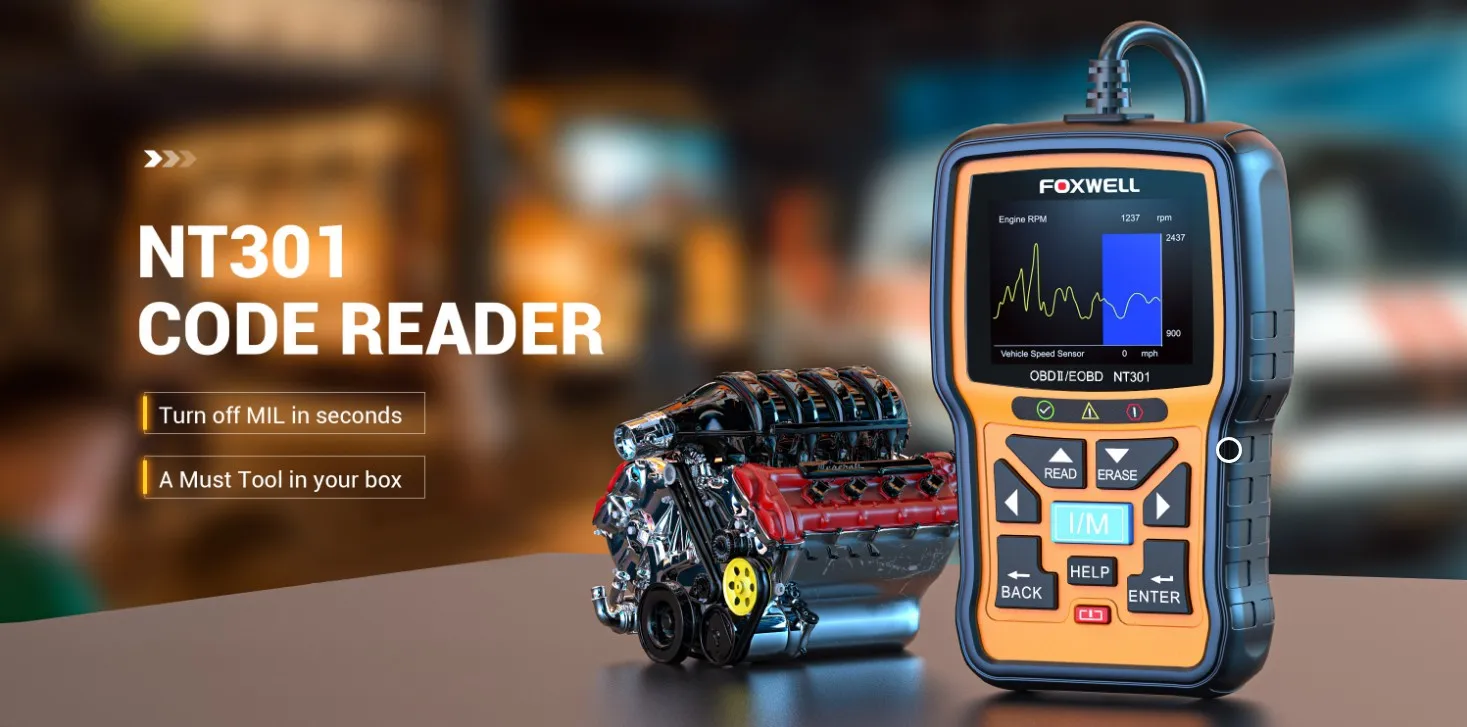

FOXWELL NT301 CAN OBDII/EOBD Code Reader
As everybody who has cars knows, people always spend hundreds of even thousands of dollars on their vehicles just because the engine light was on. However, most of them don't know they could make it off themselves with dozens of dollars – using NT301 obdii code scanner. This auto code reader could resolve most reasons which caused engine light on, and tell you what’s wrong with your car engine, and if it is necessary to be sent to workshop.
Does your car have these problems ?
Don't Worry! NT301 will help you!
The Foxwell NT301 obd2 code scanner can read and erase codes which can also retrieve a wealth of information from the Engine Control Unit (ECU). The ECU is what triggers the Check Engine Light when there is a problem with your car. Parts might cause your check engine light on include:
#1. Gas Cap #2. Oxygen Sensor #3. Air Fuel Ratio Sensor #4. Mass Air Flow Sensor #5. Ignition Coils #6. Spark Plug Wires #7. Spark Plugs #8. Thermostat #9. EGR Valve #10. Evaporatative Emission Canister Purge Valve(EVAP) #11. Catalytic Converter.
Product Features:
1. Supports multiple code requests: Generic, manufacturer specific and pending codes.
2. Clears codes, turns off Check Engine Light (CEL) and resets monitors.
3. DTC definition can be automatically displayed after reading, press “HELP” button with DTC guide for possible causes if codes show the small “?” icon.
4. Reads freeze frame data which shows engine conditions such as fuel trim, fuel pressure, engine coolant temp, etc. at the time the Malfunction Indicator Lamp(MIL) was set.
5. Reads, records, graphs & playbacks(data logging) live sensor data.
6. Reads live O2 sensor/on-board monitor test data.(Full OBD modes including Mode 6 and Mode 8)
Enhanced OBD II functions
NT301 obd2 scan tool can not only read and clear engine fault codes, save money for you, but also have some enhanced functions which could help you find some deep problems so that makes your diagnosis easier.
LED Notifications: Red-Yellow-Green LEDs and build-in speaker indicate the readiness status for smog check. This engine diagnostic tool can also help catch intermittent problems or confirm repairs during a drive cycle.
Data Log: The NT301 engine code reader records PIDs for later use to help you diagnose intermittent driving performance problems which can not be determined by any other methods.
DTC Help: Press “HELP” button with DTC guide for possible causes if codes show the small “?” icon.
VIN Retrival: Automatic VIN acquisition and decoding make it much easier to read manufacturer specific codes and enhanced mode 6 data.
Print Data: If you are unable to determine the problem, you can print out the diagnostic data and send the data to your mechanic for help.

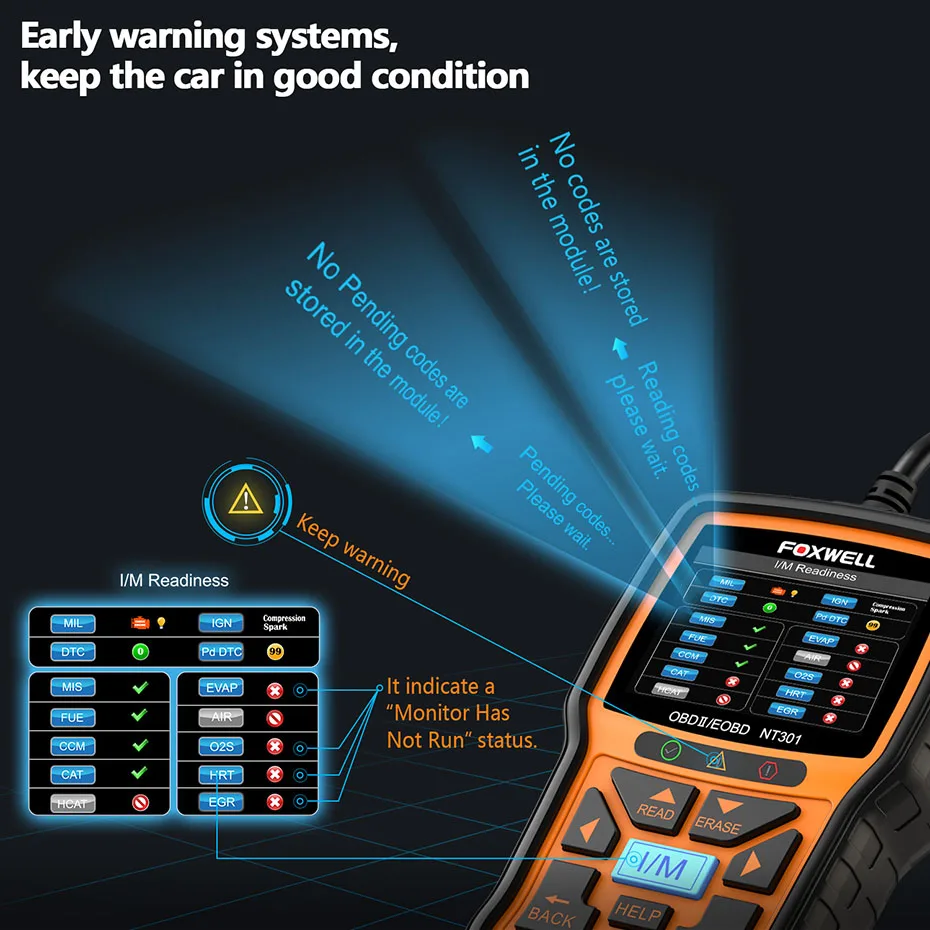

I/M One-Key Fast Check
Quick state emissions readiness check and drive cycle verification.
red-yellow-green leds and build-in speaker indicate emissions monitor status,
they can also help catch intermittent problems or confirm repairs during a drive cycle.
One-Key Smog Test
Emission readiness status and trouble codes with just one single click

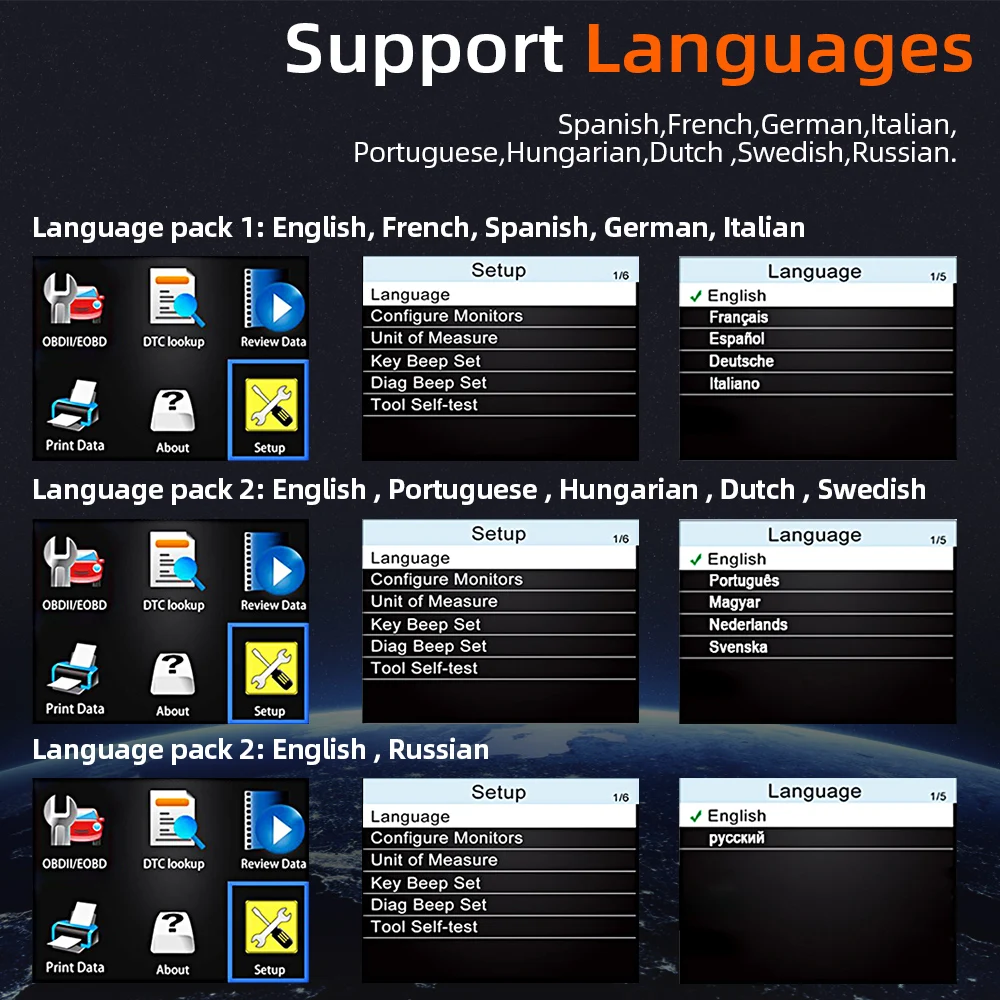

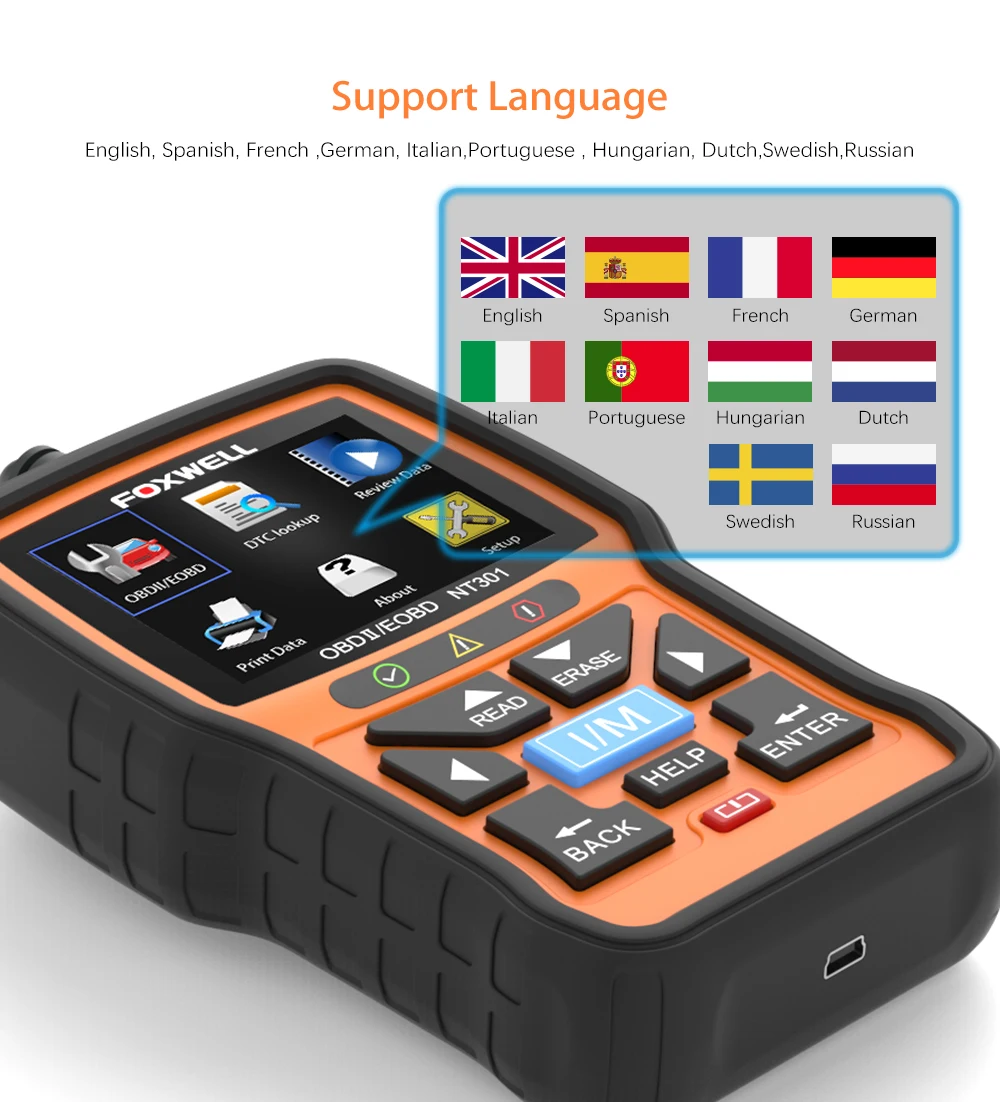

FOXWELL NT301 Diagnostic Tool Support Languages :
Three multilingual package for options:
(1) English, français, Español, Deutsche and italiano
(2) English, Português, Magyar, Nederlands, svenska
(3) English, русский,
FOXWELL NT301 Diagnostic Tool Support Car List :
1. America Car List: (include Brazil)
Need standard obd2 , and release from 2001 years to now
Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep
2. Europe Car List:
Need standard obd2 , and release from 2004 years to now
Fit for Alfa Romeo ,Fit for SAAB ,Fit for Acura ,Fit for Opel, Fit for Audi ,Fit for Seat ,Fit for Peugeot ,
Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover
Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar
3. Asia Car List: (include Australia)
Japanese car Need standard obd2 , and release from 2006 years to now
Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda
Fit for Nissan ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota
4. Chinese Car List
Chinese car Need standard obd2 , and release from 2011 years to now
Fit for BYD, Fit for Chery, Fit for Geely, Fit for Great Wall, Fit for Karry
NOTE:
for Ssangyong Actyon, Kyron, Rexton, from 2011-2017 years.
for Ssangyong Korando, from 2013-2017 years
for Renault cars from 2016-2018 years.
Does not support for Renault / Dacia Logan , Clio.
Does not support for LADA, UAZ, VAZ
No Car OBD2 Scanner can work for all cars, If the device does not fit for your car, please try to test on another newly car.
FOXWELL NT301 Free Update Forever
Stpe1: Download the update tool from foxwell official website, connect the NT301 to PC and login in the foxwell program , the device will be automatcially detected.
Stpe2: You can go to setting , select the language of your software package.
Step3: Click online update, it will download the software, then click on Offline update, you may install the patch.
Notice:
All of our user manual are English in the package,
But we have French ,Spanish ,German language user manual on the foxwell office website, (foxwelltech.com).
you can download it yourself, thanks
Package Including:
1 x FOXWELL NT301 Diagnostic-Tool
1 x English User Manual
1 x USB cable
