MaxiTPMS TS508 Wi-Fi:
The MaxiTPMS TS508 Wi-Fi is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read
TPMS sensor status, check TPMS system health condition, program MX-sensors, and conduct TPMS relearn. With Quick Mode and Advanced
Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work.
Languages:
English, Traditional Chinese, French, German, Spanish, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Hungarian, Czech, Portuguese
TS508 Wi-Fi Advantage:

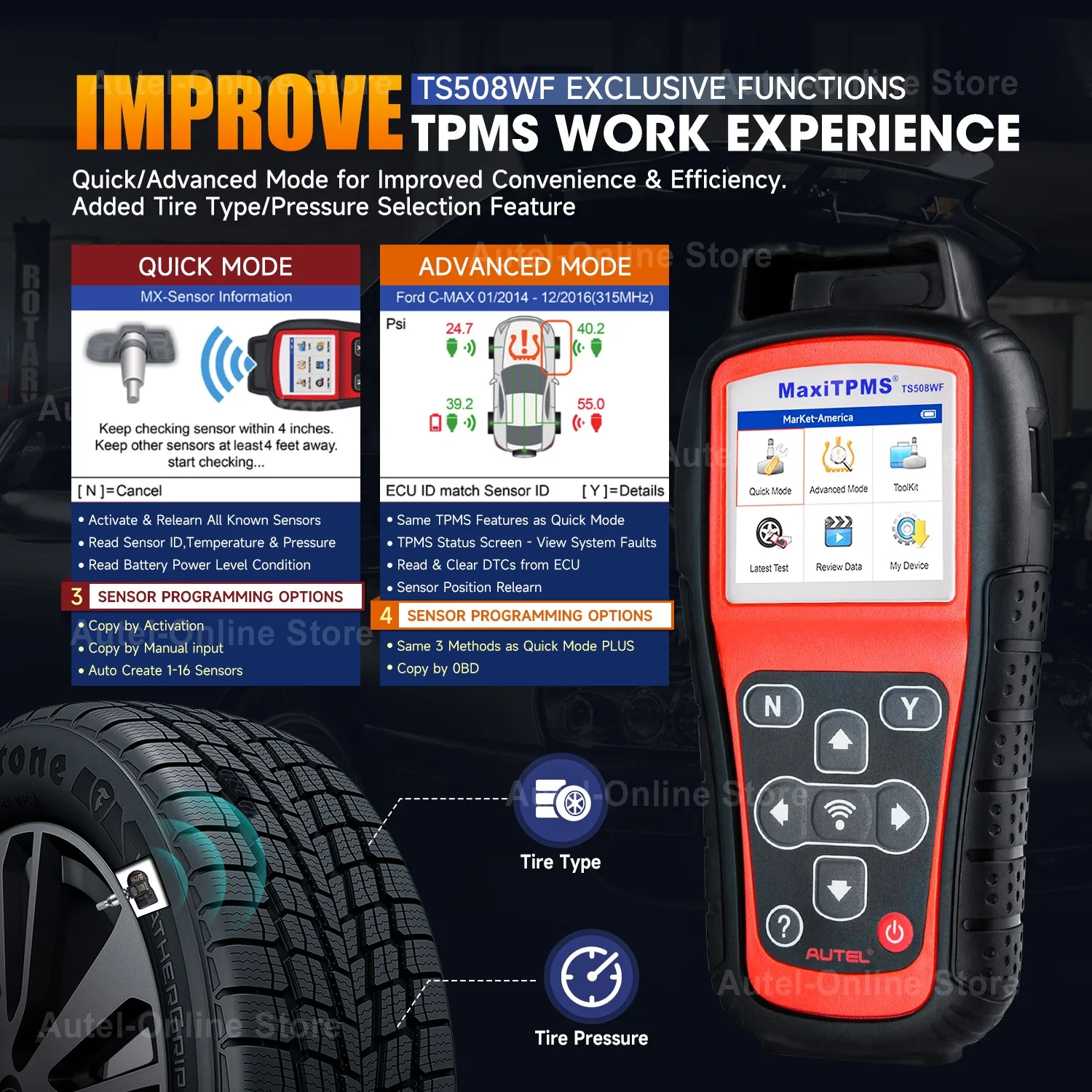

TPMS SERVICE MODES
TS508 Wi-Fi is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
QUICK MODE / ADVANCED MODE
1. TPMS Quick Mode:
Basic TPMS functions to check
2. TPMS Advanced Mode:
Complete TPMS functions to perform sensor check, TPMS diagnosis, MX-Sensor program, and sensor position relearn.
Exclusive TPMS Status Screen:
1. Read ECU sensor ID;
2. Check sensor ID and ECU ID matching condition;
3. Read DTCs from ECU and erase DTCs;
4. View DTCs detail description;
Four MX-Sensor Programming Options:
1. Copy By Activation;
2. Copy By Manual Input;
3. Auto Create 1-16;
4. Copy By OBD;
Features:
1. Vehicle Specific Database (Domestic, Asian, and European)
2. Auto Selection of Frequency for Fast Scanning
3. Quick Mode for Fast Installs designed for tire/wheel shops
4. Advanced Mode To diagnose, repair and replace TPMS for repair shops
5. TPMS Status Screens for Easy Diagnosis
6. Shows ID matching in color
7. Low Sensor Battery Indicator
8. Code Notification
9. Relearn procedures at the touch of the help button
10. Program multiple sensors with one touch (up to 16 sensors at a time)
11. Programs vehicle ECU to learn sensor IDs and positions
12. Activates ALL magnetic, frequency, and tire deflation triggered sensors using 125Khz continuous or modulated wave signals
13. Read the TPMS sensor status and check the TPMS system health condition
14. Read / clear DTCs of TPMS and resets Malfunction Indicator Light
15. Reads/writes sensor IDs from vehicle ECU
16. Reads/clears DTC's of TPMS and resets Malfunction Indicator Light
17. Programs Autel MX-Sensors 433MHz wirelessly
18. Checks Remote Keyless Entry (Key FOB) for transmissions
19. Reads Data including sensor IDs, tire pressure, temperature, and battery condition.
20. OEM Part number and relearn information
21. Displays different sensor relearn procedures for different OEM sensors
22. OEM sensor information display based on vehicle Make/Model/Year
23. Displays OBD locations for test vehicles
24. Pre-selection process offers faster activation and diagnostics
25. Provides visual and audible responses to confirm sensors are working properly
26. Proper LF signal to prevent being fooled by other RF signals
27. Automatic power-off to preserve battery life
Specifications:
Display: TFT color display (320 x 240 dpi)
Power: 3.7 V Li-polymer battery; 3200 mAh
Operating Temp.: 0°C to 50°C (32°F to 122°F)
Storage Temp.: -20°C to 70°C (-4°F to 158°F)
Dimensions: 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
Weight: 0.39 kg (0.86 lb.)
Connectivity: Mini USB 2.0
Warranty: 1 year
Software Update: Free
TS508Wi-Fi Package List:
1 * MaxiTPMS TS508Wi-Fi
1 * OBD II cable
1 * USB cable
1 * AC Adapter
1 * Carry case
1 * User manual
