Autel Scanner MaxiPro MP900-BT, 2025 Android 11 ECU Coding Scan Tool

Upgrade from Autel MP808BT & DS808S-BT, Autel MP900-BT get greatly improved in hardwares: Add 8MP Rear Camera; Larger Battery Capacity (7700 mAh); Larger & Sharper touchscreen (8″ 1280×800 Resolution). Alll New Functions are accessible out of box with no need extra Updates: ECU Coding; 40+ services; Special Functions; VIN / License Scan; Wi-Fi Printing; DoIP / CAN FD Protocols; Pre & Post Scan. The main functions are almost the same as Autel 906 series.

21+ Multiple languages：

MP900-BT Main Features: Top-level Software Configurations:

● 8-inch LCD capacitive touchscreen with 1280 x 800 resolution display
● MaxiVCI V150 for wireless connection
● Read/clear codes for all available systems
● Display live data in text, graph & analog for easy data review
● Expansive 40-plus menu of service and maintenance tasks
● Features DoIP and CAN FD protocols
● AutoVIN technology can automatically identify the vehicle's make, model and year information in no time
● Support Pre & Post Scan function
● Reset service mileage and service intervals
● Relearn parking brake pad after replacement
● Forced regeneration and adjusting injectors
● Support battery registration and reset
● Reset Steering Angle Sensor (SAS)

Autel MaxiPRO MP900BT: One-Stop Complete OBD2 Diagnostic Scanner

Exceptional OE-Level system coverage for all electronic systems, complete code, live data, ECU information, active test, and special function capabilities, support upports the latest communication protocols, including DoIP and CAN FD; Smart AutoVIN technology for quick and accurate vehicle identification; Automatic system and software updates with real-time Wi-Fi push notifications. Extensive vehicle coverage for U.S., Asian, and European vehicle makes

● Advanced ECU Coding
● VAG Guided Functions & Hidden Functions
● OE-level All System Diagnostic
● Bi-directional Control/ Active Test
● 40+ Maintenance & Reset Services
● Auto VIN / Scan VIN / Scan License
● Pre&Post Scan / WiFi Printing
● Battery Test(With BT506)/Endoscope(With MV108S)
● DolP&CAN FD Latest Protocol

ECU Coding:

Autel MaxiPRO MP900BT diagnostic scanner is its ECU Coding perform advanced ECU Coding and Adaptation functions . You can use it to recode elements of a car's CPU. This is particularly useful when you need to make car customizations or setup actuators after repair or replacement:

Fine-tune the vehicle's performance like activate higher-level functions to bring out car’s maximum potential. For example:

● Make the moving pointer perform self check, Display the amount of fuel consumption, Activate beep sound, One press to close all windows, Flash all brake lights during emergency braking, Make turn signal light and rear fog light alternatively flash, Activate & deactivate daytime running lights.
Disable annoying functions like auto start & stop etc. to improve the driving experience.

● Successfully setup new actuators so the vehicle systems can work in harmony together.

● Fix complex ECU-controlled issues like low f-u-e-l efficiency, mysterious power loss, unknown fault in mechanical parts.

VAG Guided Functions & Refresh Hidden Functions:

● Coding supported on BMW, VW, Porsche, Hyundai, Kia, Peugeot, Citroen vehicles.
● Refresh Hidden Functions renewal supported on BMW, VW, Audi, Nissan, and Toyota vehicles.
● VAG Guided Function for VW and Audi vehicles.
● Component Matching: rematch ECU (control module unit) after the replacement. Compatible with VW, Audi, Skoda, Seat, Ford, Opel, Mazda, Chrysler, Jeep, Honda, Nissan, Hyundai, Kia, Subaru, Mitsubishi.

OE-Level All System Diagnostics, Fix 99.9% of Repair Issues：

Autel MaxiPRO MP900BT OBD2 scanner can read/ clear codes, view live data, freeze data frame, turn off the light to resolve vehicle issues on all electrical systems like ABS, SRS, TPMS, Engine, IC, Transmission, BCM, Chassis, Steering, Airbags, Air Conditioning, IMMO, Air Suspension, Air Suspension, Cruise Control, etc.

● ECU Information — displays detailed ECU information. Select to view the information screen.
● Trouble Codes — contains Read Codes and Erase Codes. The former displays detailed DTC information retrieved from the vehicle control module, the latter allows you to erase DTCs and other data from the ECU.
● Live Data — retrieves and displays live data and parameters from the vehicle's ECU.
● Special Function — performs various component adaptations.

Bi-Directional Control/Active Test:

Autel MaxiPRO MP900BT diagnostic scan tool. Its active testing (bi-directional control) can help you quickly figure out whether a specific subsystem goes well, without checking its functional status by tearing a bunch of auto parts apart.

For example:

If a part is not working and leads to the failure, it could be a faulty component, wiring, relay, or command. By commanding component to do active tests, like switch on/off, via MP900BT Pro scanner you can quickly determine whether it’s a wiring, relay, or component issue without removing any parts.

Active tests are often widely performed on different parts, such as:

A/C Configuration; Adaptive Headlamp Adjustment; Window Wipers Setting; Doors Turn on/off; Sunroof Switch on/off; Mirrors Folding/Unfolding; Active tests on Interior lights, inside mirrors, steering wheel heating, windows, horn, etc.

40+ Service Functions:

MaxiPRO MP900BT scanner come with 40+ service functions Such as Oil reset; EPB; TPMS; BMS; Brake bleed; Aftertreatment; Immo keys; Injector; SAS; Suspension; Throttle; WIN DR; ROOF; Seats; Odometer; Lang change; Headlamp; CHG tire size; TEC learn; ABSSRS; Cylinder; VGT learn; Speed & PTO; Clutch; Trans adaptation; Airbag reset; A/F Setting; Automatic Start/Stop; Electronic Water Pump start; EGR; VIN; FRM RESET; Transport Mode; HV Battery; ACC; A/C; Rain/Light Sensor; Reset control unit; CCS/ACC, Relative Compression, HV DE-energization/Energization, Coolant/Refrigerant Change, Sunroof initialization and etc.

● Oil Light Reset: reset the oil service lamp after changing the engine oil; re-calculate the optimal oil life change interval.
● Steering Angle Reset: reset the steering angle to zero to keep the car running straight.
● Injector Coding: write the new injector code into the car system for the correct cylinder injection quantity.
● Electronic Parking Brake Reset: help replace and reset the brake pad.
● Throttle Adaptation: initialize the throttle actuators to the default state.
● Battery Matching: register the battery after replacement.
● Tire Pressure Reset: reset the tire pressure.
● Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.
● Headlight Matching: initialize the adaptive headlamp system.
● Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.

10+ High-End Advanced Functions to Win Your More Business:

1.Battery Test (Use With BT506):

This OBD2 Automotive diagnostic scan tool has been designed with built-in battery test ability. With the additional Autel MaxiBAS BT506 Battery Testser, MP900BT can help you test all 6V and 12V 100-2000CCA batteries including the most regular Flooded, AGM, AGM Spiral, EFB and GEL batteries. It can perform in-vehicle & out-of-vehicle tests to determine the health status of the battery, the starter, and the generator respectively.

2.Videoscope (Compatible with Autel MV108S/MV105S)

This is a very pratical and useful functions, which allows you to have a futher wear situation check on your car engine/transmission,etc internal structure, to avoid further damage or avoid potential dangerous driving.

3.FCA AutoAuth:

No more extra cost to buy the 12+8 adapter! Now Autel has released FCA AutoAuth Function for FREE on FCA cars after 2017 (Chrysler, Dodge, Jeep, Fiat) in the US, Canada and Mexico, which covers wider vehicles and helps technicians win more business.

4.Power Balance:

effectively identify the less productive cylinder. Compatible with Chrysler (Cylinder balance test), GM, Ford …

5.VAG Guided Functions:

Save your manual input of the Security Access Code & Channel Number for successful matching/calibration; and to make basic settings. Compatible with VW, Audi, Skoda, Seat …

6.Support DoIP/ CAN FD Protocol:

V150 VCI empower DoIP/CAN FD Protocols to support more new vehicles to 2021-2023 (including BMW E/F Chassis).

7.Anti-theft IMMO Service:

Disable the lost vehicle keys and add new keys for 3.5th gen. VW, Audi, Skoda, Seat etc., and most Asian cars with low-level antitheft systems.

8. Autel Cloud Management:

Through Autel Cloud Service, you can uploade Data and Diagnostic Reports to Autel Cloud Management without loss and share reports with customers through QR Code/ email/ text message easily, so that customers can view the reports at cellphone anytime.

9.Pre Scan & Post Scan:

Scan all the systems for DTCs and help create a repair plan, via Post Scan, you can ensure no new faults caused during repair.

10. Wi-Fi Printing:

Autel 2025 newest scan tool MP900BT supports to print reports directly from any page, no need to connect to PC, click the “Print” from your MS906 Pro and you'll get the report right away. No need to link a PC to print.

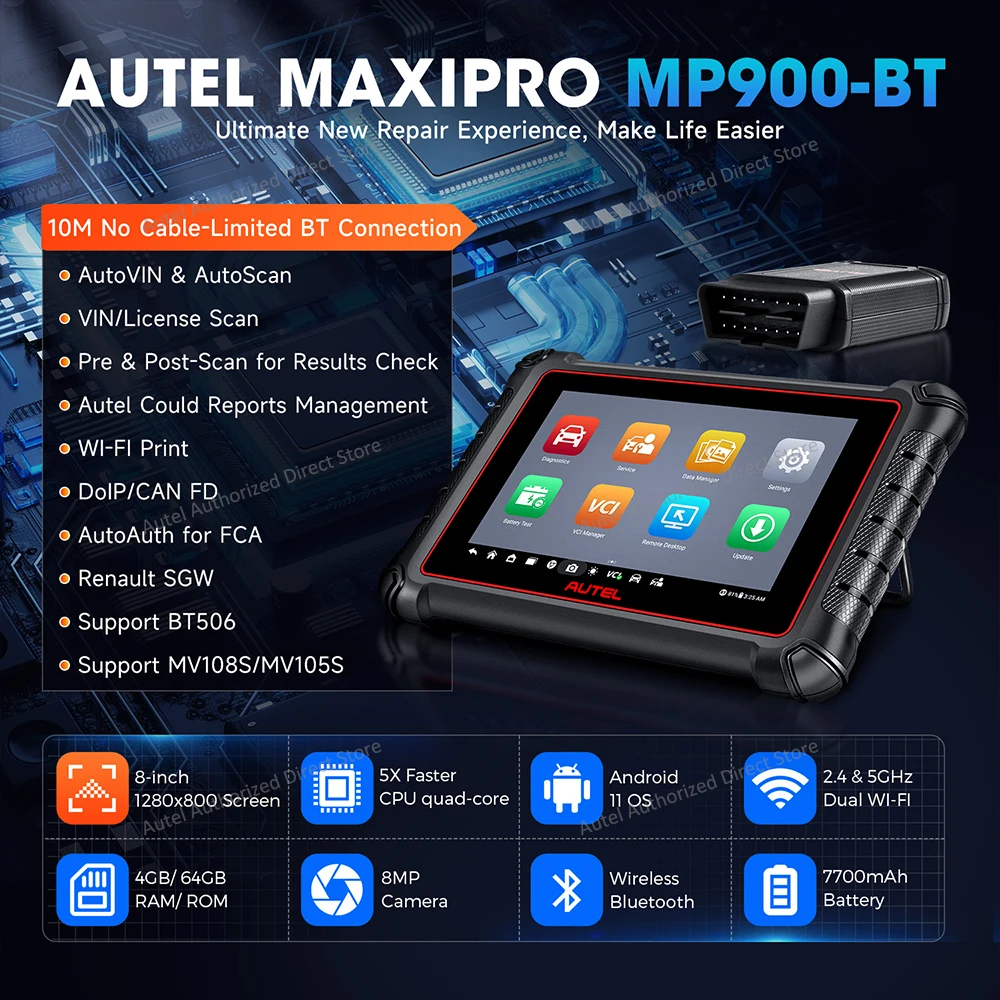

Specifications:

• Operating System: Android 11
• Processor: Quad core Processor(1.8GHz)
• Memory: 4GB RAM & 64GB ROM
• Display: 8-inch LCD capacitive touchscreen with 1280×800 resolution
• Rear Camera: 8 MP
• Connectivity: USB Type-C; USB 2.0; Wi-Fi; Bluetooth; Mini SD card (supports up to 64GB)
• Audio Input/Output: Input: N/A; Output: buzzer
• Power and Battery: 3.7 V/7700mAh lithium-polymer battery; Charges via 5 VDC power supply
• Battery Charging Input: 5 V/3 A
• Operating Temp: 0 to 50°C (32 to 122°F)
• Storage Temp: -10 to 60°C (14 to 140°F)
• Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

MaxiPRO MP900-BT Package Listing:

1* Main Unit
1* MaxiVCI V150
1* Power Adapter
1* USB Type-C
1* Cable
1* Soft Cloth
1* Quick Reference
1* Guide
1* Packing List (This document)

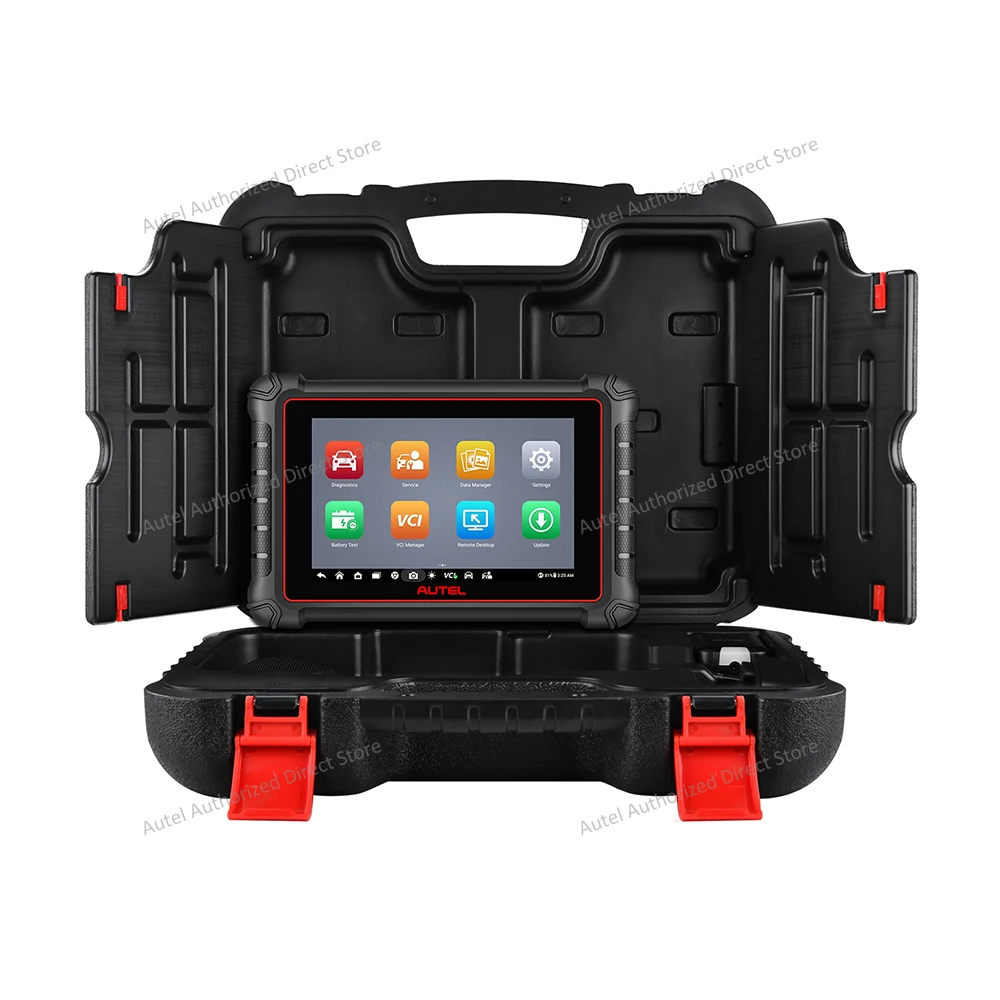

1* Carrying Case
