Autel Maxiim IM508S Car Key Generation Key Programming Tool Read/Write EEPROM MCU Bi-Directional Diagnostic Tool PK IM508 KM100

Autel MaxiIM IM508S  1 Year Update Service

 Price: $245

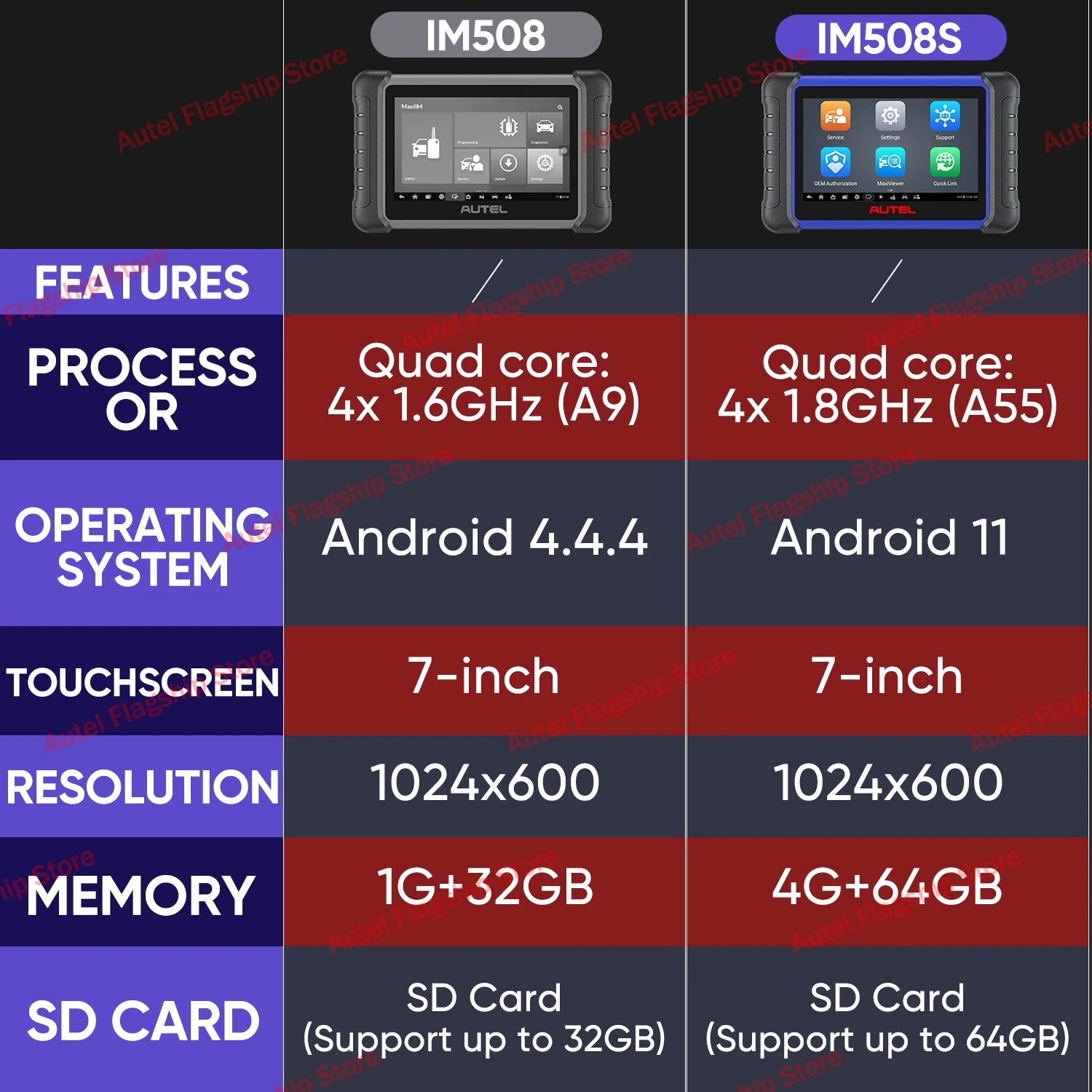

The difference of IM508S and IM508

IM508S is IM508's updated version.
IM508S Free Update Online：2 Year
IM508S have more advanced hardware.You can check the following difference:

■ IM508S Hardware
Processor: Rockchip RK3566 Quad core, 4x 1.8GHz(A55)
RAM: 4G
ROM: 64GB
Android Version: Android 11
DB16 DLC: Support

■ IM508 Hardware
Processor: Rockchip RK3188 Quad core, 4x 1.6GHz(A9)
RAM: 1G
ROM: 64GB
Android Version: Android 4.4.4
DB16 DLC: Not Support

Autel MaxiIM IM508S Professional All-in-One Key Programming Tool

MaxiIM IM508S is a 7-inch, Android-based touchscreen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu. The tablet, which features a quad-core processor and 64 G.B. onboard memory and runs on the powerful Android 11 operating system, offers faster bootup and operation speed. Equipped with the XP200 key programmer, the IM508S can perform key and immobilizer functions, including Key and Remote Control Learning and basic EEPROM and MCU Read and Write capabilities. The IM508S also enables technicians to complete an all-systems diagnostic scan and read and erase codes, view Freeze Frame and Live Data on U.S., Asian, and European vehicles, 1996 and newer. The tablet also features an extensive menu of the most often performed maintenance and service tasks, including oil light reset, brake bleed, battery registration, steering angle sensor reset, and occupancy seat calibration. The IM508S also offers report cloud management, making saving and sharing reports easy.

Highlight Features：

• Powerful combination of key and immobilizer programming, all system diagnostics, extensive service menu
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all keys lost) key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• Bi-Directional Control/ Active Test
• All Systems diagnostics for U.S., Asian, and European vehicles, 1996 and newer
• 40+ Extensive Service Menu, including EPB, DPF, SAS, Oil Light Reset, and BMS etc…
• Cloud-based report management, allowing you to view device and test records anytime, anywhere
• Quad-Core processor
• Internal reliable 64GB Memory
• Android 11.0 Operating System for fast bootup and multitasking
• 7-inch LCD touchscreen with 1024 x600 resolution, Multi-Language

2023 Most Worth Buying IMMO Tool – IM508S

Autel IM50S It's the most cost-effective IMMO tool on the market, it is not only a professional key fob programming tool, but also an excellent bidirectional scanner! The newest version of IM508s will bring you a new experience:👍pro-level IMMO&Key fob Programming👍real active tests👍all systems diagnostic👍28+ Services👍wider coverage, etc. Awesome product for workshop & DIYers.

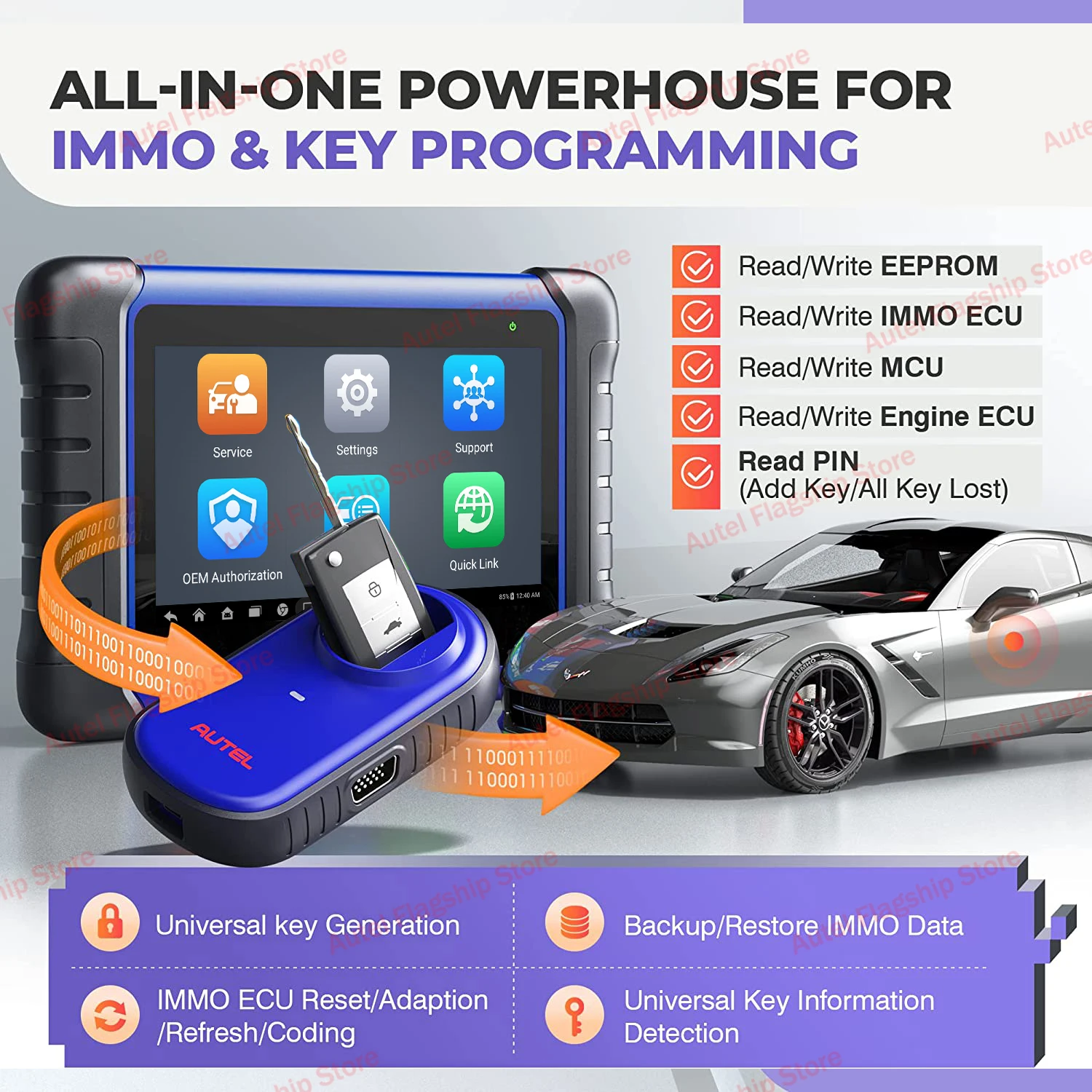

IMMO & Key Fob Programming

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.
This application can access the key chip, read, retrieve and write key information, support read PIN/CS (all key lost), key generation, key learning, remote learning, IMMO ECU Reset/Adaptation, IMMO ECU Refresh/Coding, Backup/Restore IMMO Data, BMW FEM/BDC Key Learning and ECU Adaptation.

The Programming application requires connection between the tablet and the XP200, and no vehicle connection is required. This application can access the key chip, read, retrieve and write key information, as well as other key related functions

1.Read PIN/CS (AII key Lost)
2.Key Generation
3.Key Learning/Remote Learning
4.Backup/Restore IMMO Data
5.IMMO ECU Reset/Adaptation,Refresh/Coding
6.For BMW FEM/BDC Key Learning and ECU Adaptation
7.For VW/For AUDI MQB Key Learning,48 Transponder(96-bit)Add Key ,All Key Lost,A6 AII Key Lost

Intelligent IMMO Mode – Smart Mode & Expert Mode

IM508S comes with comprehensive IMMO functions that provides Smart Mode and Expert Mode to guide both professional technicians and home mechanics performing IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, All Key Lost and etc.

Smart Mode: Guided and automated key learning for home mechanics.((for DIYers & beginners & novice)

Expert Mode: Advanced key learning for professionals((for skilled technicians)

NOTE: The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.

Work With XP400Pro Key Programmer

(Purchase Separately) You don’t have to pay $3000+ for a more advanced scanner but can enjoy the same IMMO and Key fob Programming capabilities as IM608 Pro. When connected to XP400 Pro, IM508 can extend its capability to support✅IMMO functions such as BMW CAS4 K~y Learning, and✅Programming functions such as IMMO ECU Read & Write, MC9S12 Encryption Chip Read & Write, IC Card Read & Write, Mercedes Infrared K~y Read & Write, Remote Frequency Detect, etc.

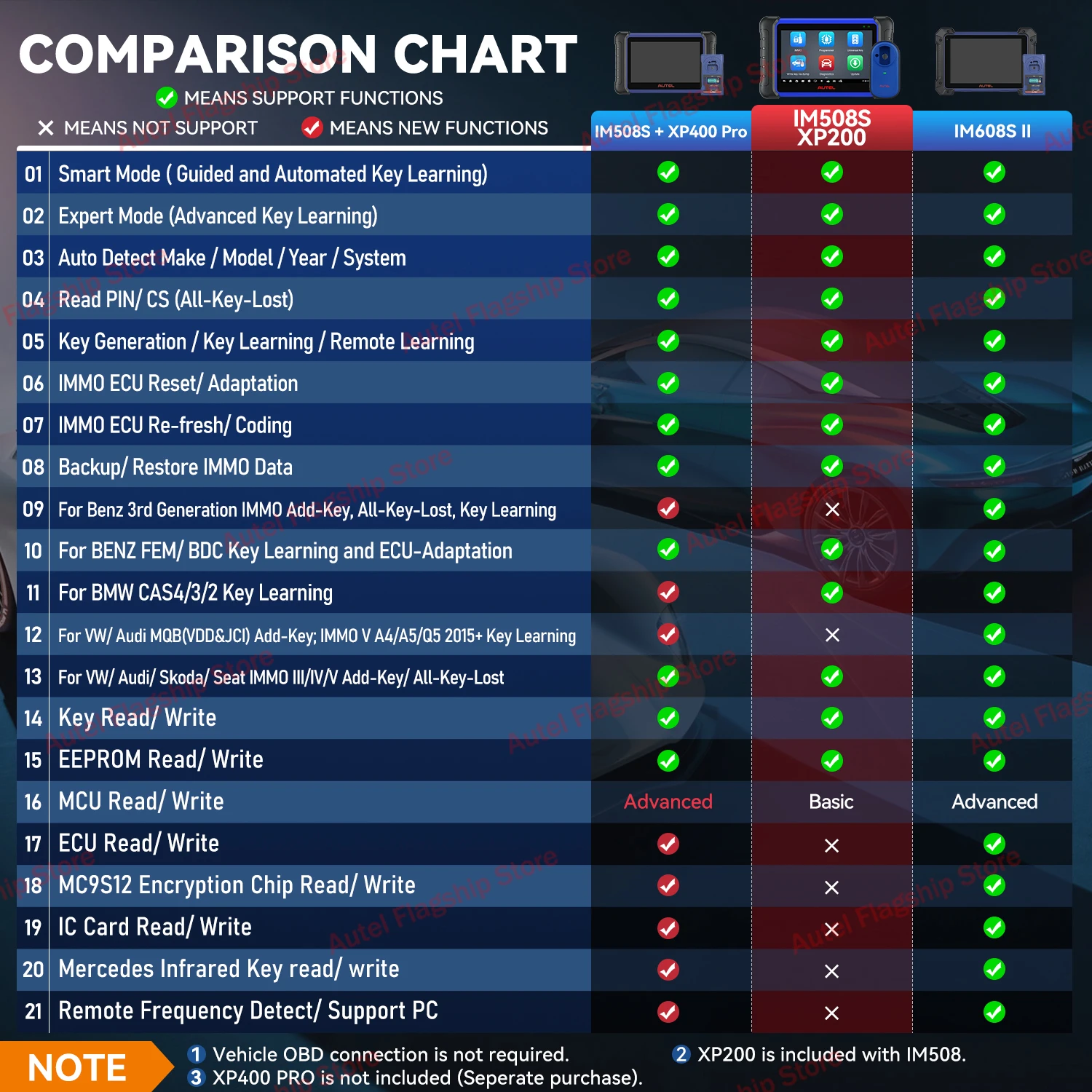

Advanced Key Programming Combined With XP400PRO:

Benz:
– One-tap Key Programming via OBD
– 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost
BMW:
– Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
– Add Key/All Key Lost
Volkswagen/ Audi:
– One-tap Online Programming
– Add Key/All Key Lost Via OBD for 2013 – 2020 Models
GM:
– Read IMMO Password, Add Key/ All Key Lost up to 2020
Ford:
– Add Key/All Key Lost (No PIN Needed) up to 2020
Mazda:
– Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
– Read IMMO Password, Add Key/All Key Lost up to 2020
Renault:
– Add Key/All Key Lost (No PIN Needed) up to 2020
LandRover/Jaguar:
– Add Key/All Key Lost up to 2019

Volvo:
– Semi-smart Key Learning via OBD up to 2018
– Smart/Blade/Fobik Key Learning via Dump

Work With G-BOX2/G-BOX3/APB112/IMKPA

The G-BOX2/3 realizes fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using ths DAS3 EIS/EZS are lost. The use of the G-BOX2/3 reduces the time needed and eliminates the process of insertion and removal.
The G-BOX2/3 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volks wagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced.
The G-BOX2/3 is compatible with the Autel's advanced diagnostic tablets support IMMO and key programming functions.

APB112 collect the data sent from the ignition coil, identify the ignition coil troubles , 46, 4D key chip data collection and key simulation,Toyota/ Lexus smart key all key lost.

IMKPA is a Key Programming Adapter Kit, compatible with the XP400Pro Key & Chip Programmer. Includes 12 adapters for the XP400Pro that enable Read/Write/Erase for Mercedes Benz ESL_W209 / W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and. Volkswagen/AUDI/BMW/Benz Key Unlock.

Bi-Directional Control(Active Test)

What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Bidirectional control tool IM508 can perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues.

Note: Functions NOT universal, please send VIN(17 digits),car makes, model, year to check compatibility before purchase.

All System Diagnostics & 40+ Service Functions

Autel IM508s features the same ability as MX808, MK808, & MK808BT on general diagnose and services functions, able to get quick access to all modules on most global car models to perform comprehensive diagnose, retrieving DTCs, ECU info, freeze frame data and live data, perform various maintenance & reset services such as ABS bleed, Oil reset, EPB, SAS Calibration and etc.Each service save you a lot of money and energy! Best investment for workshop, DIYers and home mechanics.

2024 Newest version updated

Bi-Directional Control(Active Test):
What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Bidirectional control tool IM508S can perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues.

FCA “Auto Auth” Access:
Supports FCA “Auto Auth” gateway for 2018 and newer FCA cars(Chrysler/Dodge/Jeep,etc) for US/Canada & Mexico.

CLOULD REPORT MANAGEMENT:
This is a long-awaited feature for old customers!! With it, you can upload diagnostic reports to Autel Cloud and share reports with your customers through QR Code/email/text message easily, and they can view the reports anytime. Like other cloud space, it is a back garden for your diagnostic reports to help you enhance data centralization, share simply and quickly, reduce memory burden and improve work efficiency.

Vehicle Coverage&Muti-Language

Autel MaxiIM IM508S Car Key Programming Tool can perform powerful OE level diagnostics for more than 80 US, Asian and European makes and models.

NOTE: IMMO & Key Programming and Service Functions are NOT universally compatible. To check compatibility, please consult via message

Supports Muti-Language: English / Portuguese / Germany / Japanese / French / Spanish / Italian/ Dutch/ Polish/ Swedish/ Turkish/ Vietnamese/ Russian/ Korean/ Arabic/ Thai
(Note：Please send the S/N number (The S/N number is at the back of the device) to me after you get the device to authorize the Languages to the one you need.
As the Autel policy, the default language is Enlgish)

Specifications:

1.Operating System: Android11
2. Processor:Rockchip RK3566 Quad core, 4x 1.8GHz(A55)
3.Memory:4+ 64GB
4.Display:7-inch LCD capacitive touchscreen with 1024×600 resolution
5.Connectivity:Mini USB 2.0,USB 2.0,Wi-Fi,Micro SD card
6.Sensors:Ambient light sensor for brightness auto changing
7.Audio Input / Output:Input: N/A,Output: buzzer
8.Power and Battery:3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
9.Tested Battery Life:Around 4.5 hours of continuous use
10.Battery Charging Input:5 V/1.5 A
11.Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
12.Operating Temp:0 to 50°C (32 to 122°F)
13.Storage Temp:-20 to 60°C (-4 to 140°F)
14.Operating Humidity:5% – 95% non-condensing
15.Net Weight:788 g (2.42 lb.)
16. DB16 DLC: Support

IM508S Package included:

1 X MaxiIM IM508S Tablet
1 X AAC001 – MED17 Cable
1 X KIA-20 Adaptor
1 X Mazda-17 Adaptor
1 X Carrying Case
1 X Quick guide
1 X Honda-3 Adaptor
1 X KIA-10 Adaptor
1 X XP200 Key Programmer
1 X USB External Power Adapter
1 X Main cable
1 X Mini USB Cable
