LAUNCH X431 CRP919E BT Car Diagnostic Tool DBScar VII VCI Auto OBD OBD2 Scanner Bi-Directional ECU Coding CANFD DOIP 31+ Reset

What is the Different between EU version and Global Version

1. EU Version can Only be used in European countries and cannot be used in other countries

2. The Global Version supports use anywhere in the world

👉 👉 👉 Please select the correct version you need to avoid affecting normal delivery

1.CRP919E BT is an upgraded version of CRP919E, added DBScar VII , connect car via bluetooth

2.Support CAN FD and DROP new protocols car, (TOP optional)

3. Extend to work with FCA account (optional)

4.Added Guide function of Audi ,BMW

5.More powerful configuration: 7’inch touch screen + Android 10.0 operating system, 4GB RAM + 64GB ROM Large storage and equipped with a 6300mAh high endurance battery, making diagnosis faster, more stable, and more durable

6. OE-Level Full system diagnose

7. ECU Coding + Active Test (Bi-Direction Control)

8. 31+ Reset Service , Keep Increasing

9. Auto VIN Scan

10, Lifetime Free Use + 2 Years Free Update
after 2 years free update, the product will not be locked and you can still use all functions normally.

11. Compatible with X-PROG3, TPMS , BST360, VSP-600,Key programmer， RESET PROGRAM,etc.

and more…

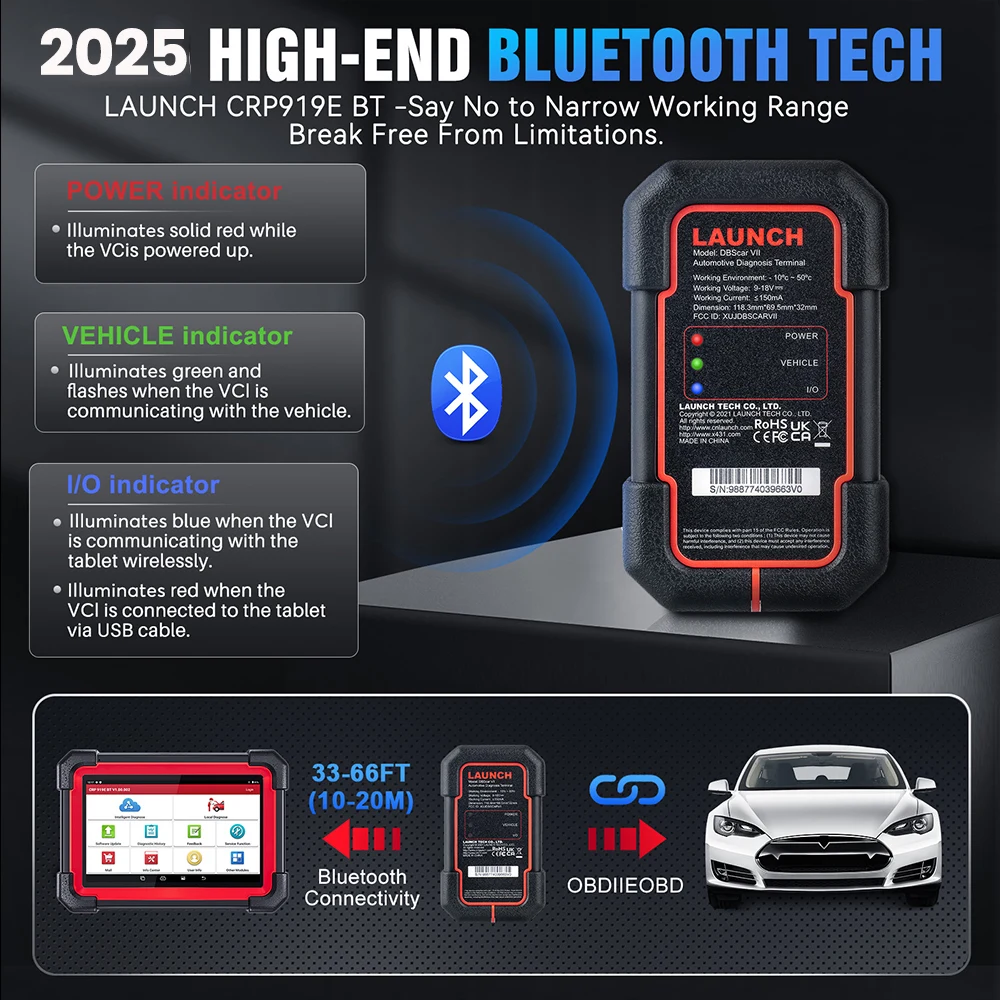

BScar VII VCI connector parameters support CANFD and DOIP (DOIP requires purchase of adapter cables)

■ Working voltage: DC 9~18V
■ Communication method: Bluetooth
Working temperature:- 10~50℃
■ Size: 118.3*69.5* 32 (mm)

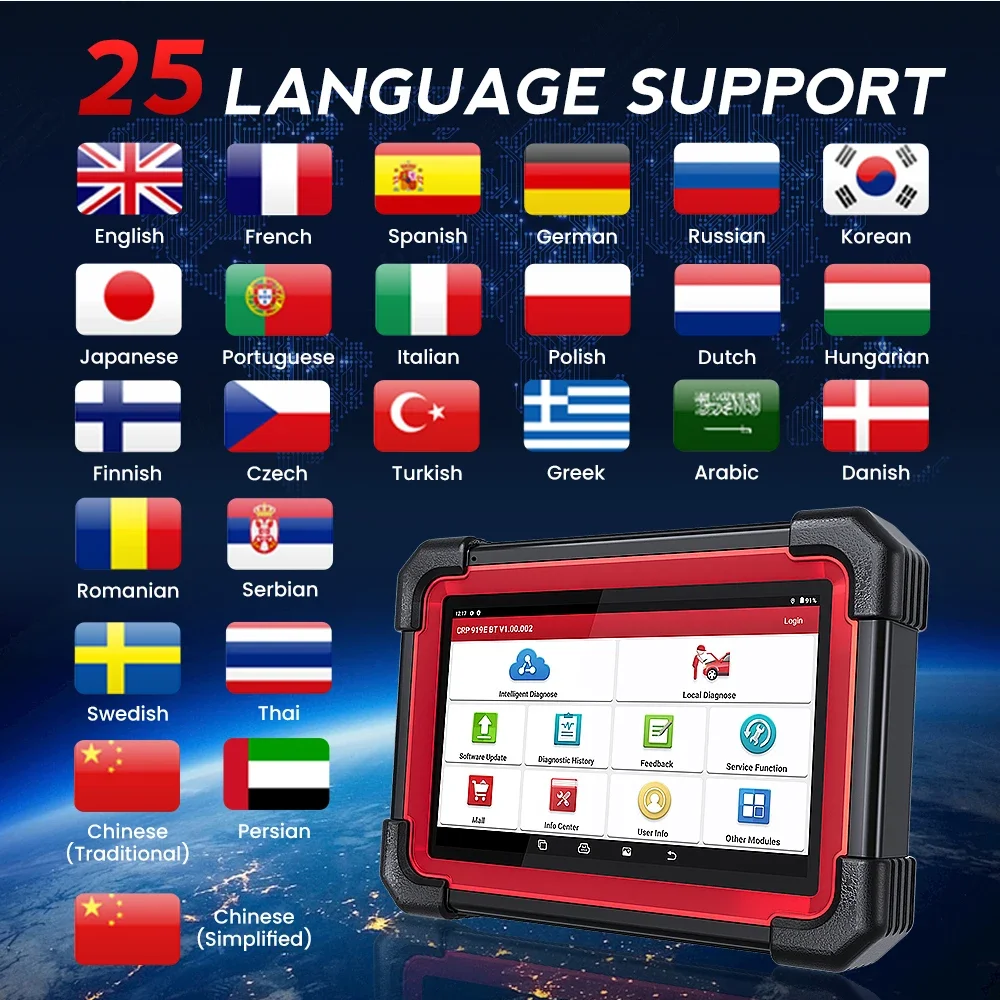

25 Language Support,

1. English 2. French 3. Spanish 4. German 5. Russian 6. Korean 7. Japanese 8. Portuguese 9. Italian 10. Polish 11. Traditional Chinese 12.Simplified Chinese 13.Arabic 14.Turkish 15.Dutch 16.Greek 17.Hungarian 18.Danish
19.Persian 20.Serbian 21.Finnish 22.Swedish 23.Czech

CAN FD & DOIP new pror

Experience the future of diagnostics with our la-test innovation – the ability to seamlessly connect with CAN FD protocol cars, with the option to acquire the DOIP Connector for expanded capabilities. These groundbreaking protocols revolutionize vehicle communication, achieving up to 2x faster communication between modules.

Guided Function for VAG Vehicles

Exclusive to VAG (Volkswagen, Audi, Skoda, and Seat) vehicles, the Guided Function provides step-by-step repair guidance for technicians and individuals alike. Avoid potential car fault settings caused by incorrect operations and ensure precise and accurate repairs. This invaluable feature enhances your diagnostic accuracy and eliminates guesswork, saving you time and preventing costly mistakes.

Autoauth for FCA SGW

Experience hassle-free diagnostics on FCA (Chrysler, Jeep, Dodge, and Ram) vehicles with the Autoauth feature for FCA SGW. Say goodbye to frustrating security gateway limitations and gain seamless access to essential diagnostic functions. This added convenience saves you time and enhances your diagnostic efficiency.

Support automatic VIN code identification

Auto VIN functions allowing you to quickly figure out Vehicle Identification No. (VIN) to perform fast diagnostic.(Note:it does not work for all vehicles) If the auto scan is not supported,please try to 1.manually input vin 2.automatic detection 3.manual selection

OE- Level Full System Diagnosis

As a universal scan tool, the Launch scanner X431 CRP919E BT automotive obd2 scanner can diagnose all systems on 99% of vehicles on the road and does so to OE levels. Rather than using separate OE diagnostic tools, the Launch scanner CRP919E BT helps you increase efficiency and control costs. The systems include but are not limited to:

PCM (Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Gear, and more…
Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS, and more…
BCM (Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head-up Display, Wipe Control System, Roof, Seat & Door Motor system, ABS ESP system, Air Condition. Electric Windows, and more…
Electrical System: Centralized Control System Chassis Integrated Control and Safety System, Intelligent Body Electronic System, Communication and Information/Entertainment System.

Active Test ( Bi-directional Test )

With this diagnostic tool’s Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control:
[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

ECU Coding

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.

31+ commonly used repair & maintenance services, keep creasing

1.ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

2.TPMS Reset
When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

3.Oil Lamp Reset
Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

4. Electronic Throttle Sensor Reset
To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

5.Injector Coding
After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

6. SAS Reset
It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7.Brake-pad Reset
To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

8.Gear Learning
Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

9.IMMO Service
To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

10.Battery Matching
Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

11.DPF Regeneration
It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.

12.EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.

13.Suspension Matching
When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

14.NOx Sensor Reset
If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

15.Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

16.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory.

17.Stop-start Reset
This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support)

18. AC Initialization
AC system relearn/initialization must be performed when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.

19. AdBlue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.

20. AFS Headlamp Reset
This function enables you to initialize the adaptive headlamp system.

21. A/F Reset
This function is applied to set or learn air/fuel rate parameters.

22. Gearbox Reset
This function enables you to complete the gearbox self-learning to improve gear shifting quality

23. Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

24. Transport Reset
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key, etc. In this case, deactivating the transport mode is needed to recover the vehicle being normal.

25. Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

26. High Voltage Battery Detection
This function is used for high voltage battery diagnosis and status information detection.

27. Sunroof Initialization
This function enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car ,etc.

28. Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.

29. Language Change
This function is used to change system language of vehicle center console.note:you need to have language pack to do language change

30. Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.

31. Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it is replaced or repaired.

(Note: Available maintenance functions vary depending on the vehicle make, year, and model.)

Share Report via Wi-Fi & print Report

Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi ( email address ) . They would take a look at the full, clear, and accurate diagnostic report, and then understand what would need to be done. No more Googling unreliable fixes that would waste your energy.

Over 115 Car Brands ,10000+ Models

– American cars
for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, for DODGE, for FIAT(BRAZIL), for FORD, for GM, for JEEP, for LINCOLI, for GM(BRAZIL)

– European car
, for ABARTH, for ALFA ROMEO, for AUDI, for BENTLEY, for BMW, for BUGATTI, for CITROEN, for DACIA, for IZH, for EURO FORD, for FERRARI, for FIAT, for GAZ, for OPEL(SOUTHAFRICA), for IVECO, for JAGUAR, for LAMBORGHINI, for LANCIA, for LANDROVE, for MASERATI, for MAYBACH, for MERCEDES, for MINI, for OPEL, for PEUGEOT, for PORSCHE, for RENAULT, for ROLLSROYCE, for ROVER, for SAAB, for SEAT, for SKODA, for SMART, for SPRINTER, for VAUXHALL, for VAZ, for VOLVO, for VW, for ASTONMARTIN, for VW_CV

– Asian cars：
for CURA, for DAEWOO, for DAIHATSU, for HOLDEN(AUSTRALIA), for HONDA, for HYUNDAI, for INFINITI, for ISUZU, for KIA, for LEXUS, for LUXGEN, for MAHINDRA(INDIAN), for MARUTI(INDIAN), for MAZDA, for MITSUBISHI, for NISSAN, for GTR(NISSAN), for PERODUA, for SAMSUNG, for SSANGYONG, for SUBARU, for SUZUKI, for TATA(INDIAN, for TLISUZU, for TOYOTA

Technical Specifications

Operating system: Android 10.0
Processor: 2.0GHz, quad core
Memory: 4GB
Storage: 64GB
Display screen: 7-inch, LCD screen
Resolution: 1024 * 600
Camera: 8 megapixel rear mounted
Wi Fi: 2.4GHz
Battery: 6300mAh

Packing List
