LAUNCH X431 PRO V5.0 Bidirectional Scan Tool with NON 16 pin adapter kit , Support Canfd Doip ,Online Coding&38+Reset

✔️2025 NEW UPGRADE LAUNCH X431 V Pro 5.0 Elite,Dealer-Level ALL IN ONE Global Version Bidirectional Scanner for ALL VEHICLES

Compare to other LAUNCH products with the same price, our X431 V PRO 5.0 has an exclusive advantage: you will receive 2 suitcases, one of which contains 12PCS NON-OBDII Adapters, while other products with the same price contain only one suitcase without NON-OBDII Adapters, which means with the same price,If you buy our X431 V 5.0 Kit, you can get extra 150$ worth of NON-OBDII Adapters (12pcs), which means You can work on Almost Old Cars you come across ！！Upgrade of LAUNCH X431 CRP919EBT！

Level-up Hardware:

1)A multi-touch, Android 10 tablet-style capacitor screen for quicker, smooth and comfortable experience.

2)Upgraded 2.0 GHz Quad-core CPU processor ,with larger 4GB RAM and 64GB ROM,speed up your diagnosis work and store more vehicles repair datas for you .

3).2.4&5GHz dual WI-FI for fast downloadings/uploadings.

4)8-Inch LCD Touchscreen with 1024 x 800 High-Resolution:Brings a clear and vivid viewing.

5) 6300mAh Rechargeable Battery:Long-lasting,makes it running faster, avoid frequent charging.

6)Comes with FULL SET OBD1&OBD2 connectors and cables,easily deal with almost every car that comes through your shop.

7)Configure the latest CarVII Bluetooth diagnostic connector,Conducting wireless diagnostics through Bluetooth VCI so as to set you free from entangled wires,provides easy connection to vehicles in any location to work comfortably, leaving bad weather outside.

Unmatched SOFTWARE:

(1)Full systems Full Bidirectional control/ active teststo do the complete functional test on all modules.

(2) Advance ECU Coding,More Coding Options than most rivals.: Online Coding & Offline Coding/Adaptation; Code/Match Componet after repairs and replacements. Refresh Hidden Features; Modification,retrofit.

(3) 31+ Hot services for All Global Vehicles and 100+ advanced special functions for specific-vehicle.

(4) FCA Autoauth & FREE V.A.G GUIDE Function,Cover More Vehicles and simplify your diagnosis process .

(5) New DBScar VII VCI Device supports CAN FD & DOIP protocols.that communicate with more vehicles at a higher speed and also achieves Bluetooth + USB dual connection. The latest compatible models, for example: 2020-2024 GM Onix, Tracker, 2021-2024 GM Suburban, Escalade, Escalade ESV, 2024 GM Silverado, 2021-2024 Chrysler Grand Cherokee(WL), Grand Wagoneer, etc.

(7) More Frequent Updating, Always Up-to-date.1974-2024 newer and wider vehicle coverage/ softwares monthly release/ Quarterly large amount data release/ specified vehicles functions adding, etc.You’ll get extended 2 YEARS of unlimited subscription-fr-ee updates for new vehicles, enhanced features, bug fixes, etc.,Unlike the expensive snap-on scanners,the renewal isn’t necessary for normal use.

(8) Massive Online Resources: Electric Circuit Diagram cases+ Operation Tips + DTC Help and Repair Tips + Automotive Technology Handbook + Repair Case + How-To Videos.

(9) IN-APP live-chat Technicial Suppor-t and 24/7 Service.

(10) Add-on Modules to Achieve Double efficiency:All are sold separately to meet your various needs: ADAS Tool Kit to assist ADAS calibration; VSP-600 VideoScope to check unseen parts of the engine, fuel tank, braking system, etc.; S2-2 SensorBox to simulate vehicle sensor faults; O2-1 ScopeBox Oscilloscope to quickly acquire circuit signals; X431 Printer to print out diagnostic reports; X431 TSGUN to activate all 315/433MHz sensors, relearn & program LAUNCH sensors; BTS360 Battery Tester to get a thorough battery test; X-PROG & X-PROG3 Immobilizer to turn this tpms programming tool into a locksmith-level IMMO service tool.

A picture quickly understands its advantages

Detailed Information About LAUNCH X-431 PRO V 5.0

1. All System Diagnosis

This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
-Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.
-Read & erase DTCs to locate problem areas and clear the codes.
-View Live Data of each parameter item.
The following is a list of modern vehicle systems that this scan tool can get access to:
-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems
-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System
-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle
-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics … and more.
This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

2. 31+ Reset Functions

Oil Reset Service – Close the oil service light and reset service mileage & service interval after replacing the engine oil.
Steering Angle Calibration – Clear memories of the previous steering angle sensor and store the replaced one.
Electronic Parking Brake Reset – Reset the new electronic parking brake for braking wheels safely again.
Battery Register & Battery Maintenance – Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.
ABS Bleeding – Get a firm brake pad after air exhaustion.
Electronic Throttle Position Reset & Learn – Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.
Diesel Particulate Filter (DPF) Regeneration – Clear particulate matter from the DPF filter to stabilize the filter performances
Tire Pressure Monitor System Reset – Relearn TPMS sensors so that new sensors can be recognized by ECU.
Tooth Learning – Finish tooth learning after changing crankshaft in the car engine, so the new part can be used.
Anti-Theft Matching (IMMOBILIZER) – Add a new programmed key. PIN code is required.
Injector matching – Write the new injector numbers into the ECU for accurate communication and injection control.
AFS Reset – It detects the light of the environment, then decides whether to automatically turn on the headlights or not. It can also adjust the headlights in time by monitoring the driving speed and body posture of the vehicle.
EGR Adaption – Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
Gearbox Matching – Test the gearbox based on the driving conditions after the gearbox is disassembled or repaired, for a more comfortable and ideal shift quality.
Sunroof Service – Set the sunroof lock switch to be on / off according to weather, temperature, and memory.
SUS Reset – When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong, this function needs to be performed to level the body height sensor.
Windows Calibration
Seats Calibration
Tire Reset, Language Change
A/F Reset, Coolant Bleed
Transport Mode
NOx Sensor Reset
Dblue Reset
Stop/Start Reset
And More … …

3.Active Test ( Bi-directional Test or Actuation Test)

With this diagnostic tool’s Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control:
[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

4.ECU Coding

From manufacturer-specific reprogramming to full diagnostic capability, this LAUNCH diagnostic scanner also has the magic power “ECU Coding” to keep you on the cutting edge:
1)You can match, relearn, and code the newly installed ECU module after making repairs or replacements.
2)You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.

5.VAG Guided Functions for VW, Audi, Skoda.

When performing some matching, calibration, and basic Settings functions of the VAG vehicle system, you need to log in to the vag vehicle system securely before performing common operations. After successful login, go to the Basic Settings or matching menu and enter the corresponding channel number to perform matching or basic Settings. The security login code and channel number need to be searched through the maintenance manual, which is generally difficult to obtain.
Using the Guided Functions, you can avoid the step of securing login and entering the channel number. Just follow the device prompts step by step operation, simple and convenient.

6.Multi-Languages Support

25 Languages Free to Use:
English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional.

7.Car Brands Coverage

American cars:
For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE, For FIAT(BRAZIL), For FORD, For FORD(AUSTRALIA), For GM
For JEEP, For LINCOLI, For GM（BRAZIL）,For TESLA

European car:
For ABARTH, For ALFA ROMEO, For AUDI, For BENTLEY, For BMW, For BUGATTI,For CITROEN , For DACIA, For DR, For EUROFORD, For FERRARI, For FIAT, For GAZ, For OPEL(SOUTHAFRICA), For IVECO, For JAGUAR, For LAMBORGHINI, For LANCIA, For LANDROVE, For MASERATI, For MAYBACH, For MERCEDES, For MINI, For OPEL, For PEUGEOT, For PORSCHE, For RENAULT, For ROLLSROYCE, For ROVER, For SAAB, For SEAT, For SKODA, For SMART, For SPRINTER, For VAUXHALL, For VAZ, For VOLVO, For VW, For BORGWARD, For ASTON MARTINA,

Asian cars：
For ACURA, For DAEWOO, For DAIHATSU, For HM, For HOLDEN(AUSTRALIA), For HONDA, For HYUNDAI, For IKCO, For INFINITI, For ISUZU, For KIA, For LEXUS, For LUXGEN, For MAHINDRA, For MAHINDRA(INDIAN), For MARUTI, For MARUTI(INDIAN), For MAZDA, For MITSUBISHI, For MVM, For NISSAN, For GTR(NISSAN, For PERODUA, For PERODUA(MALAYSIA,
For PROTON, For PROTON(MALAYSIA, For SAMSUNG, For SAIPA,
For SSANGYONG, For SUBARU, For SUZUKI, For TATA, For TATA(INDIAN, For TLISUZU, For TOYOTA, For UNITED PAKISTAN,
For VINFAST

Chinese car：
For BRILLIANC, For BYD, For CHANGAN, CHANGAN-FORD, , For CHANGHE, For CHBUICK, For CHCADILLAC, For CHCHEVRO-KET, For CHERY, For CHSUZUKI, For DFCIROEN, For HONDA(DF), For DFNISSAN, For DFEUGEOT, For ECUAID, For FAW(TIANJIN, For FOTON, For GOLDEN(XIAMEN, For GONOW, For MITSUBISHI(GAC, For GREAT WALL, For HONDA(GAC, For HAFEI, For HAIMA, For HCBMW, For JAC, For JIANGHUAI, For JMC, For JOYLONG, For LIFAN,
For LYNKCO, For MG(SAIC, For NJFIAT, For QOROS, For MAXUS,
For SGM, For TOYOTA(CHINA, For VENUCIA, For WULING, For XINKAI,
For YQMAZDA, For ZHONGGSHUN, For ZHONGXING, For ZOTYE, For SOUEAST, For ROEWE(SAIC), For JIQING(FAW), For HUANGHAI, For LANDWIND, For EXEEDTY, For NISSAN(ZHENGZHOU), For DFPV,
For JETOR, For DFFX, For CHERY EV

Support Car List

8. othre frienly function

Vehicle Health Report Share and Print

With Launch X431 V V5.0 ,you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card .

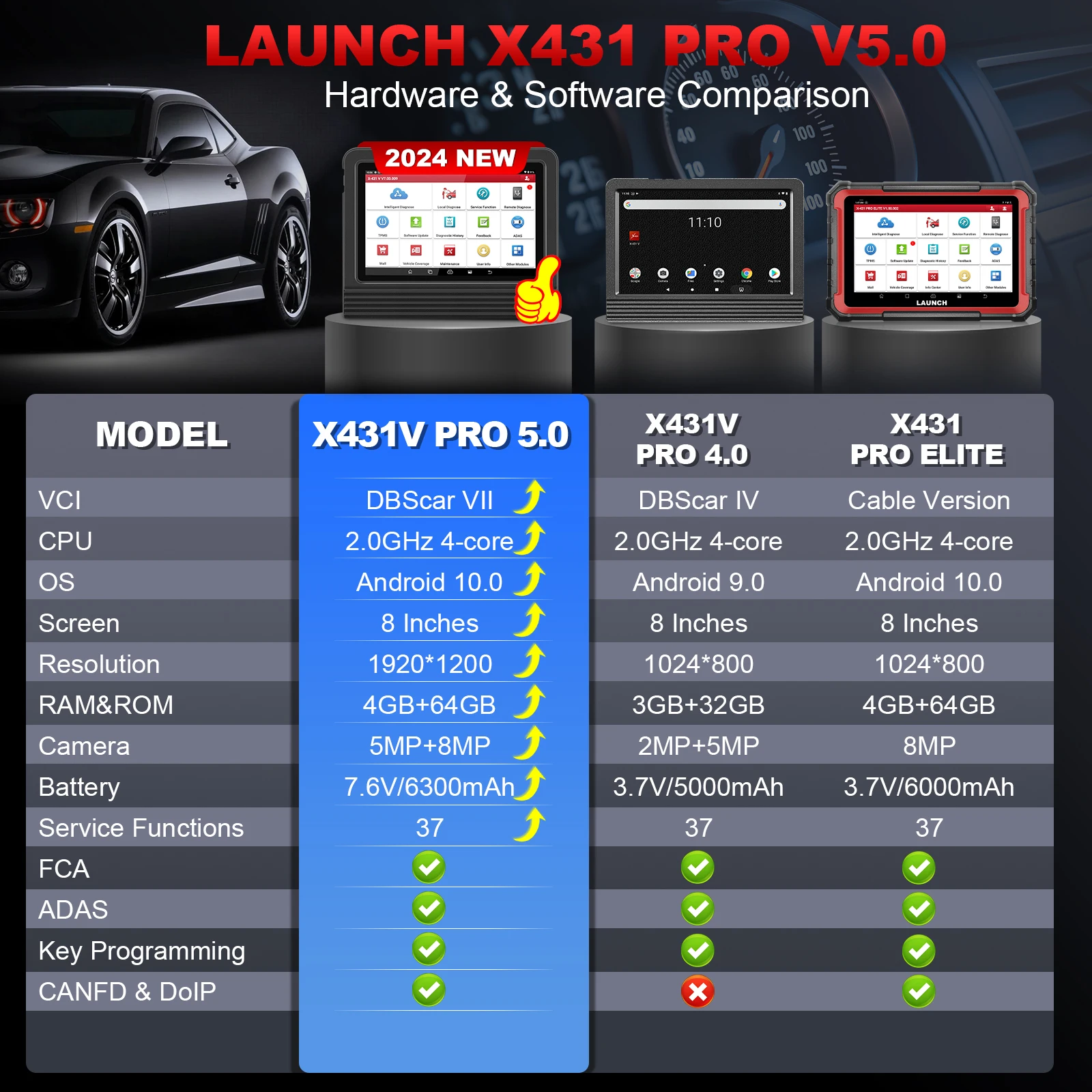

9. Item Parameters of X-431 PROS V5.0

Processor: 2.0GHz 4 cores
Operating system: Android 10.0
RAM: 4GB
Storage: 64GB
Battery: 47880mWh (7.6V, 6300mAh)
Display: 8 inches 1280*800
Camera :rear 8 million pixels
WIFI: 2.4GHz/5GHz (dual frequency)
Interface: TYPE A*1 &TYPE C*1
Working temperature: 0~50℃
Size: 228*160*37.4(mm)

10. Package list of X431 PRO V5.0

Main Box

1. X431 PRO V5.0 tablet
2. Bluetooth Adaptor
3. Diagnostic cable
4. EU/UK/US Plug
5. Type-A to Type-C USB cable
6. User Manual
7. PIN envelope
8. Quick Guide
9. Plastic Suitcase

OBD1 Adaptors Box

1. B-20
2. BZ-14
3. BZ-38
4. CR-6
5. FD-6+1
6. GV-12
7. HA-3
8. K-20
9. MH-12+16
10. NN-14+16
11. TA-17
12. TA-22
13. fuse
14. Cigarette lighter Cable
15. Battery Clamps Cable
16. Suitcase
