* KINGBOLEN S600 support 4 System and 10 Resets Lifetime Free Update

【10 Resets】Oil Reset, Brake Reset, TPMS Reset, Steering Angle Reset, Battery Matching, ABS Bleeding, Electronic Throttle Position Reset,DPF Regeneration (Diesel Particulate Filter), inject Reset, AFS RESET

* After receiving the goods, please update the software first

Global version KINGBOLEN S600 Car diagnostic Tools ECM/ TCM/ ABS/ SRS 4 Systems 10 Resets (OIL/ BRAKE/ SAS/ ETS/ BMS/ DPF/ TPMS/ BLEED/ inject/ AFS Resets) Lifetime Free Update

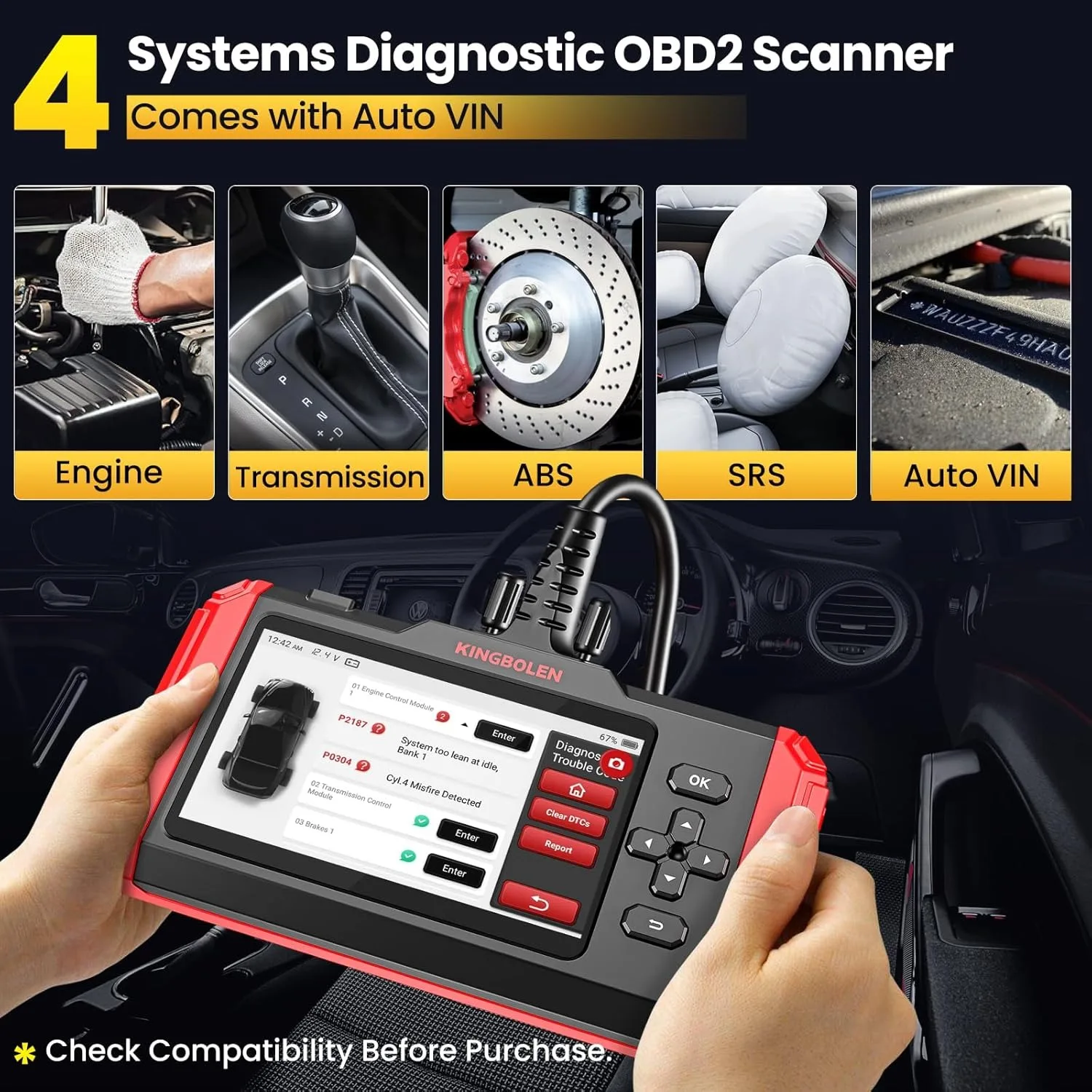

Enhanced 4 Systems Diagnostic Tool 】KINGBOLEN S600 OBD2 Scanner can scan ABS, SRS(airbag), Engine(ECM) and Transmission (TCM/Trans) Systems to view Live Data Stream of multiple sensors, read and clear Fault Codes, turns off Warning Light. It also One-click generates a complete Automotive Diagnosis Report to record the information or share with email. This car diagnostic code reader can help Mechanics to repair the vehicle's failure, and permanently F-ree upgrade the Latest Version

4 Systems Lifetime Free Update

1. Check Engine System Lifetime Free

The diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. Check ABS System Lifetime Free

Read and clear DTCs data flow in the ABS system. Performs various tests to check the operating conditions of Anti-lock Braking System, and turn off the warning light.

3. Check SRS Airbag System Lifetime Free

Safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status. Read and clear fault code in SRS (Airbag) system and turn off warning light of airbag for making sure engine work properly and safely.

4. Check Transmission System Lifetime Free

Read and clear codes and view live data in transmission systems, keeps the transmission systems output optimally adapted to the speed and load. Retrieve the error information from Automatic Transmission (AT) which is a type of motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears manually.

10 Maintence Reset Service Lifetime Free

Please note: Not all car models support all maintenance functions, if you want to know more, please send us your car model and year

1. Oil Reset

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.

lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for trouble shooting. After that, reset the driving mileage or driving time, so as to turn off the service lamp and enable a new driving cycle.

2. lf the service lamp is not on, but you have changed the engine oil or electric appliances that monitor oil life, you need to reset the service lamp.

2. Brake Reset

lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to theon-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

3. SAS – Steering Angle Reset

To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering. After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

4. Electronic Throttle Position Reset– RESET ETS

This function enables you to make initial settings to throttle actuators and returns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

5. TPMS Service

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.

6. Diesel Particulate Filter (DPF) Regeneration

clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

It needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MIL is on and maintenance is performed.
6. The DPF regeneration control module is replaced

7. ABS Bleeding

perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS). It needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced.

8. Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, inwhich the original low battery fault information will be cleared and battery matching will be done.

9. inject Reset

Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder soas to more accurately control or correct cylinder injection quantity.

After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

10. AFS RESET

This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

Full 10 Mode OBDII/ EOBD/ JOBD Car Diagnostics Functions

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

1. Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4. I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6. View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8. On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Multiple languages can be changed at will

English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Turkish, Korean, Dutch, Hungarian, Arabic, Greek, Slovenian, Czech, Danish, Croatian, Romanian, Swedish

Timely diagnostic Feedback Online

You can submit diagnostic feedback on the device if you have no idea how to fix the problem. This obd2 scanner can reach the cloud servers and A professional team will answer your questions.

Recommend to message us to get quick response if you have any issues.

Real Time Battery Voltage Monitor

KINGBOLEN S600 diagnostic device for all vehicles has Real-time monitoring of Battery voltage:

thanks to the graphic voltage current, you can effortlessly check the instantaneous voltage when the car is off, and display the charging voltage across the battery when the car is running to ensure that the battery is in the normal range.

Live Data Stream Analyse in Graph

It can shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.

AUTO VIN Scan

KINGBOLEN S600 OBD2 diagnose tool can Auto detect vehicle information with one click, scan and read ECU version information.

Other Function of KINGBOLEN S600

1. screenshot
2. Quickly share diagnostic reports via email
3. Voltage monitoring
4. Repair shop information settings
5. Fault code library

Lifetime Free WiFi Upgrade

KINGBOLEN S600 OBD2 diagnostic device support Lifetime Free Update. you can One-click upgrade your diagnostic software via WiFi. No computer is required. Then you can experience more vehicle coverage and get more smooth software.

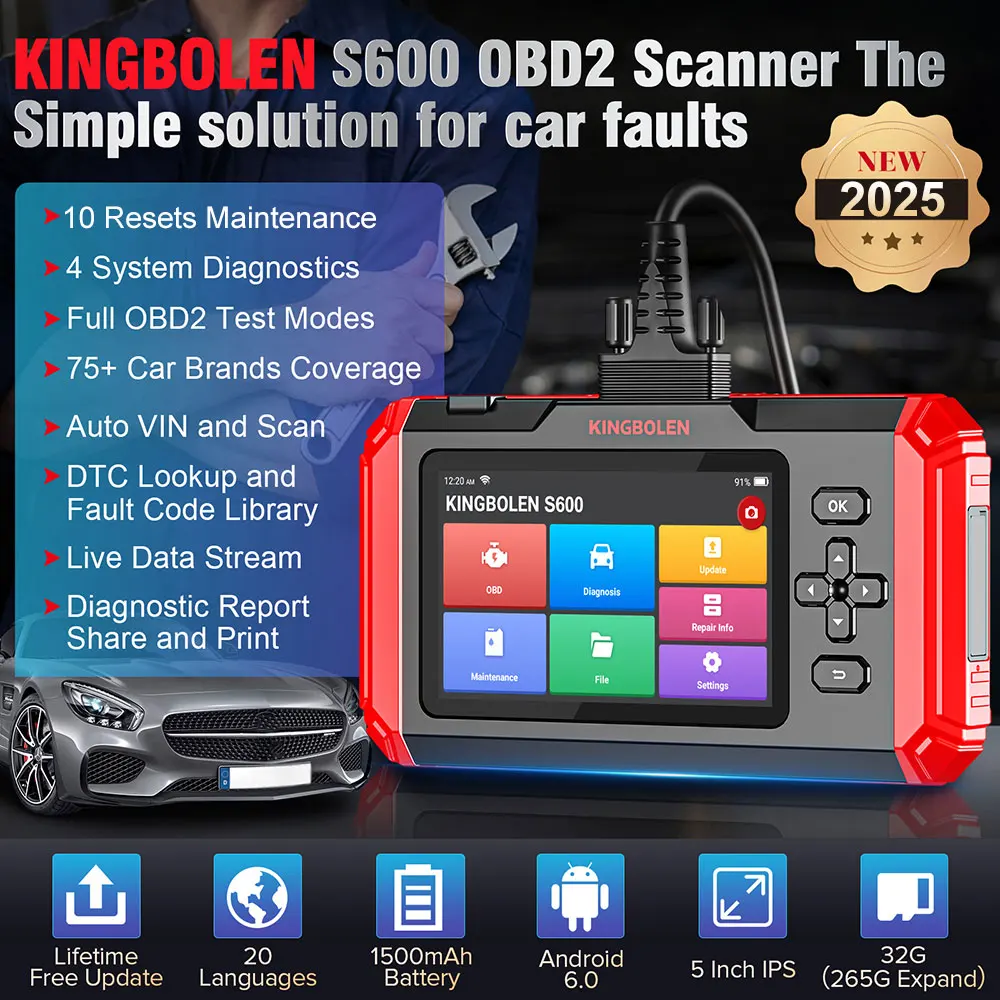

Product parameters of KINGBOLEN S600

* Size: 5 inches (resolution 480*854)
* System version: Android 6
* CPU version: MT6580 CORTEX-A7 1.3GHz 4 cores, Y9-V3
* RAM: 2GB
* ROM: 16GB （Can up to 256G)
* Battery capacity: 1500MAH
* Camera: no
* Wifi network: 2.4GHz
* Packing size: 255mm X 155mm X90mm

Package List of KINGBOLEN S600

1pc x Main device S600
1pc x diagnostic cable
1pc x USB cable
1pc x carton box
1pc x user's Guide (Instruction Manual Language: English, French, German, Japanese, Italian, Portuguese, Spanish, Russian, Polish)

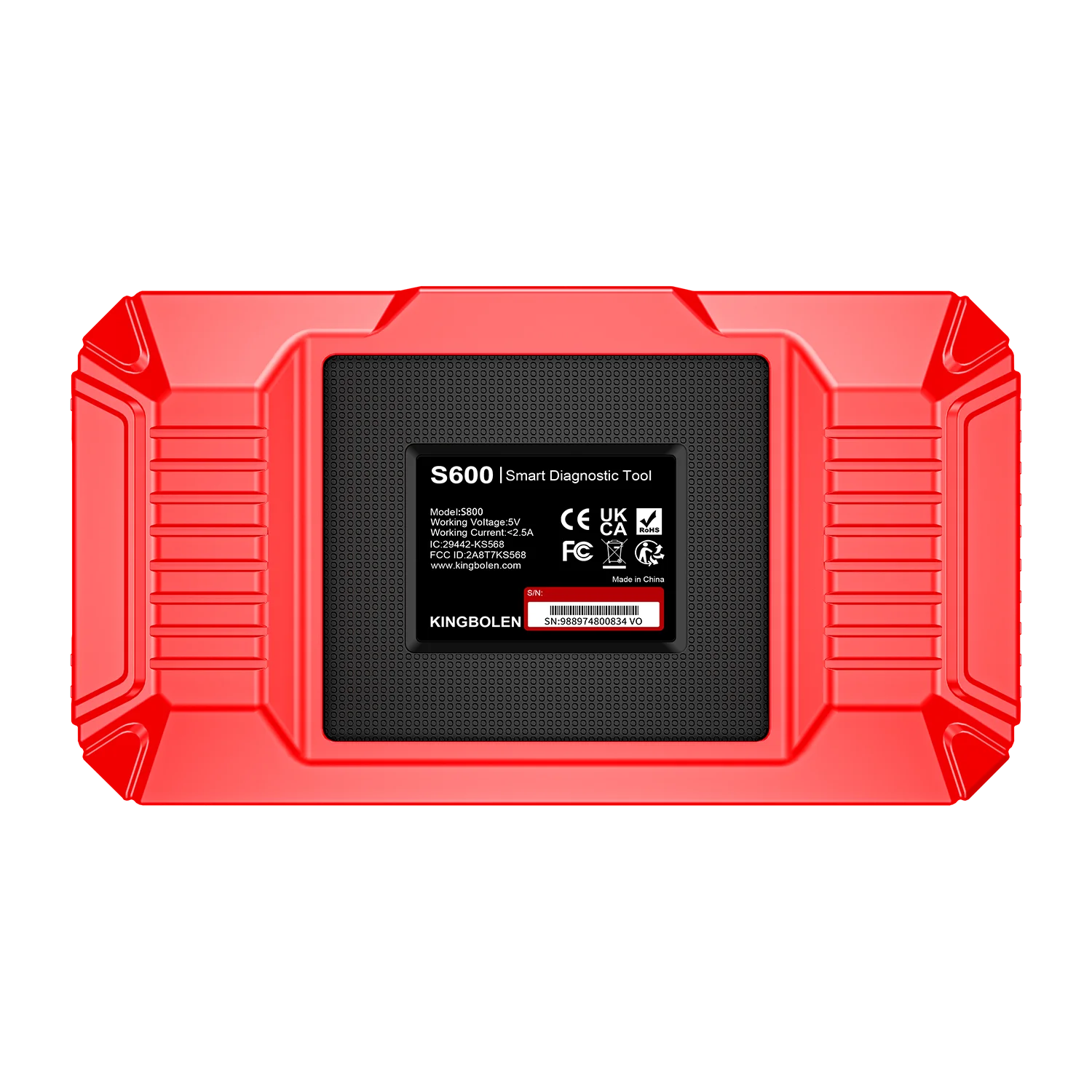

Items Pictures of KINGBOLEN S600
