Autel MaxiTPMS ITS600
The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup. The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.
MaxiTPMS TBE200

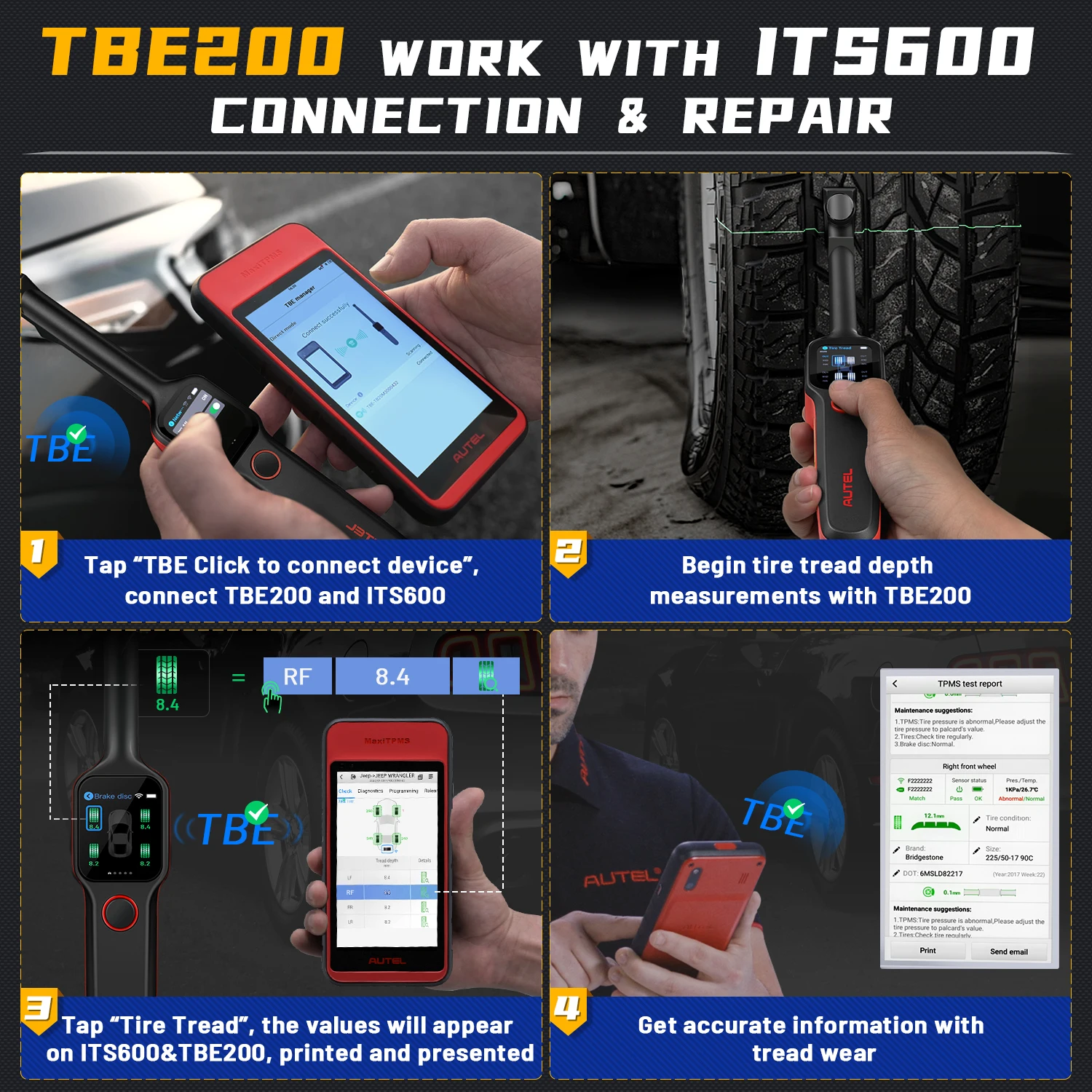

The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65'' AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.
MaxiTPMS ITS600 Feature:
Everything TPMS Solutions
• Activates, reads and relearns all known sensors
• Enhanced, at-a-glance diagnostics status screen
• Fast OBDII relearn for most vehicles
• Program MX-Sensors to replace 99% of OE sensors
• Copy By OBD sensor programming for faster service
• Four MX-Sensor program modes; batch program up to 20 MX-Sensors
• Includes wireless Bluetooth vehicle communication interface (VCI)
• Tire pressure placard value reset
• Read/Clear TPMS system codes & view live data
• Free Wi-Fi software updates for the life of the tool
Quick Vehicle ID Tenchnology
• Rapid VIN acquisition via optical VINScan
• QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input
• Identify MMY and sensor OE part number via VIN decoding
Diagnostic & Service
• Oil light reset
• Electronic brake service
• Battery registration
• Steering angle reset
• Included service function updates are free for the life of the tool
• All systems diagnostics and maintenance services software available with Pro Upgrade purchase
Expanded Tire Service
DOT
• Quick & Easy Tire DOT Number Scan
• Tire Expiration Notice
• Tire Recall Lookup
Tread Depth & Brake Disc Wear
• Precise laser measurement of tread depth & brake disc wear with purchase of Autel
TBE100/TBE200
• Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips

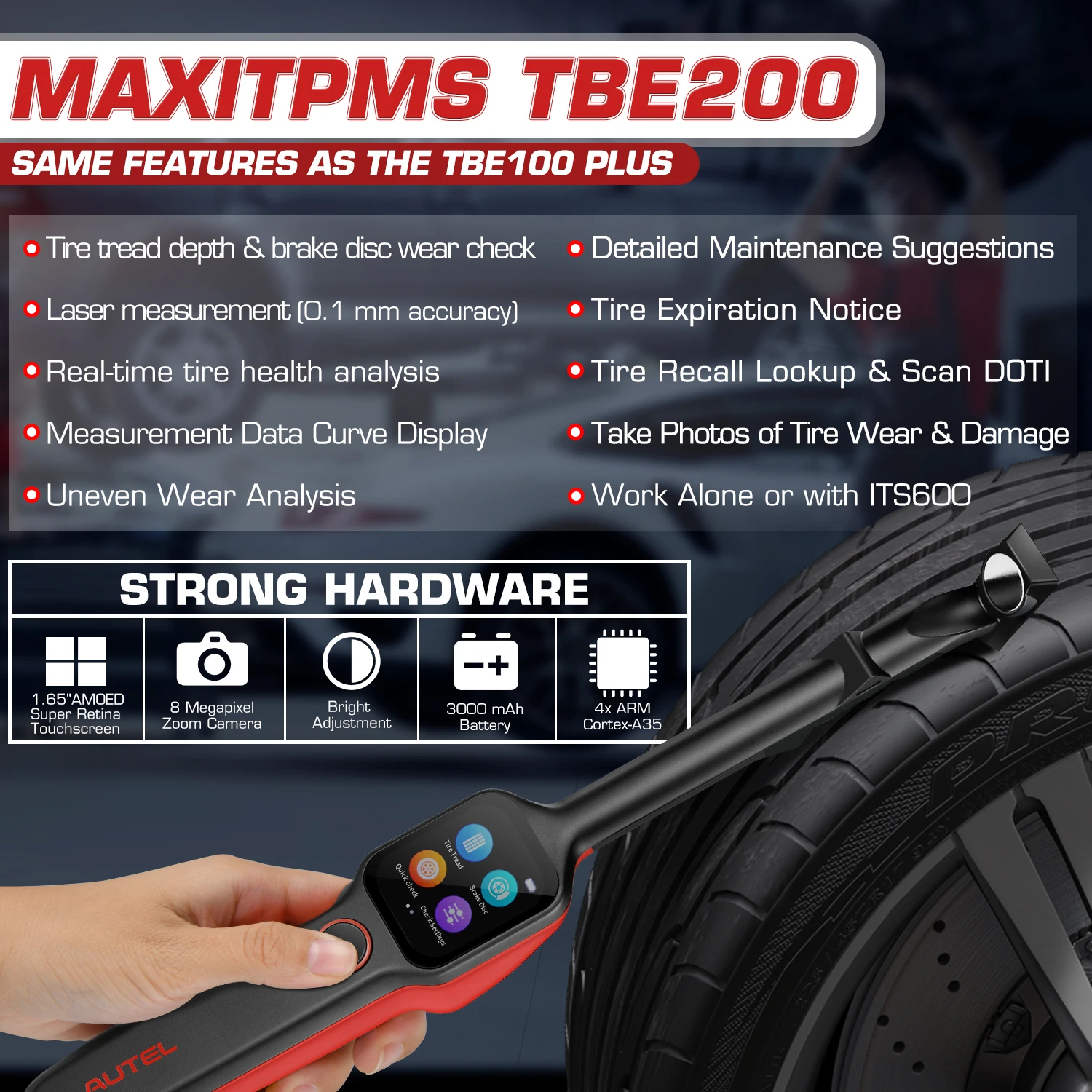

MaxiTPMS TBE200 Feature:
Laser Measurement
• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc

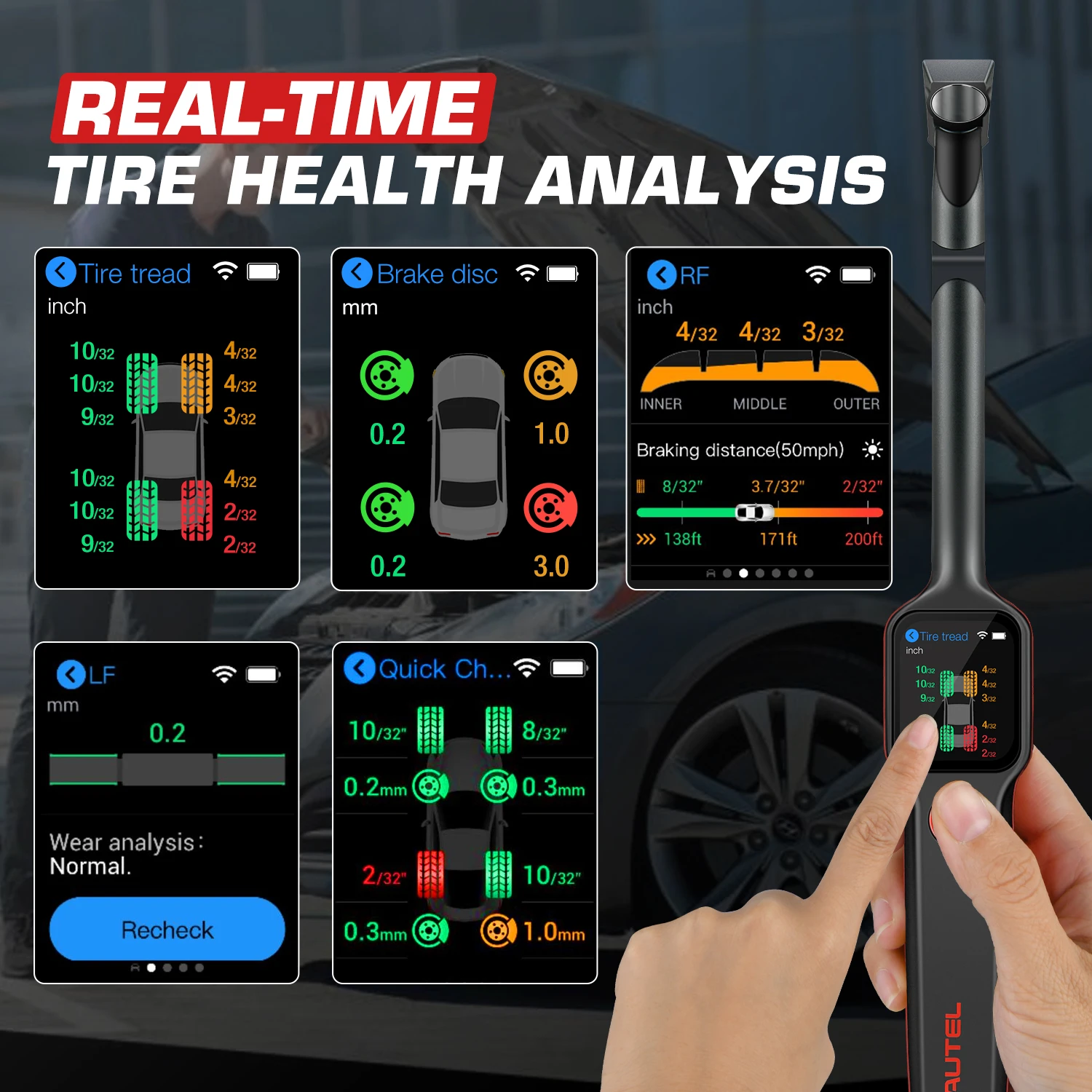

Real-Time Tire Health Analisis
• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage
Comprehensive Test Report
• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
MaxiTPMS ITS600 Specifications:
Recommended Use:Indoor
Operating System:Android™ 9.0
Processor:Quad-core processor (1.5 GHz)
Memory:1GB RAM DDR4 & 64GB ROM
Display:5.5-inch LCD capacitive touchscreen with 1280×720 resolution
Connectivity:• Wi-Fi• USB 2.0, Type C• BT
Sensors:Light sensor for brightness auto adjust
Audio input/output:Input: N/AOutput: Beep
Power and Battery:• 3.8 V/5000 mAh lithium-polymer battery• Charges via 5 V AC/DC power supply
Battery Charging Input:5 V/2 A
Power Consumption:600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp. -10 to 45°C(14 to 113°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D):183.0 mm (7.2'') x 89.0 mm (3.5'') x 22.0 mm (0.87'')
Net Weight:368 g (0.8 lb.)
Protocols:ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,
GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66
MaxiTPMS TBE200 Specifications:
Recommended Use:Indoor
Processor:4x ARM Cortex-A35 (1.5 GHz)
Memory:1GB RAM LPDDR3 & 4GB ROM
Display:1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
Connectivity:• Wi-Fi • USB 2.0, Type C
Camera:CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
Audio output Output: Beep
Power and Battery:• 3.7 V/3000 mAh 18650 lithium-ion battery • Charges via 5 V AC/DC power supply
Tested Battery Life:Around 8 hours of continuous use
Battery Charging Input:5 V/1.5 A
Power Consumption:300 mA (AMOLED on with default brightness) @3.7 V
Operating Temp.:-10 to 45°C(14 to 113°F)
Storage Temp.:-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D):283.0 mm (11.14'') x 39.0 mm (1.54'') x 33.5 mm (1.32'')
Net Weight:188 g (0.41 lb.)
Packing List:
MaxiTPMS ITS600:
Main Unit
MaxiVCI V200
Power Adapter
Type C USB Cable
Hex Key
Quick Reference Guide
List
Carrying Case
MaxiTPMS TBE200:
Main Unit
Calibration Table
Power Adapter
Type C USB Cable
Quick Reference Guide
Carrying Case
List
