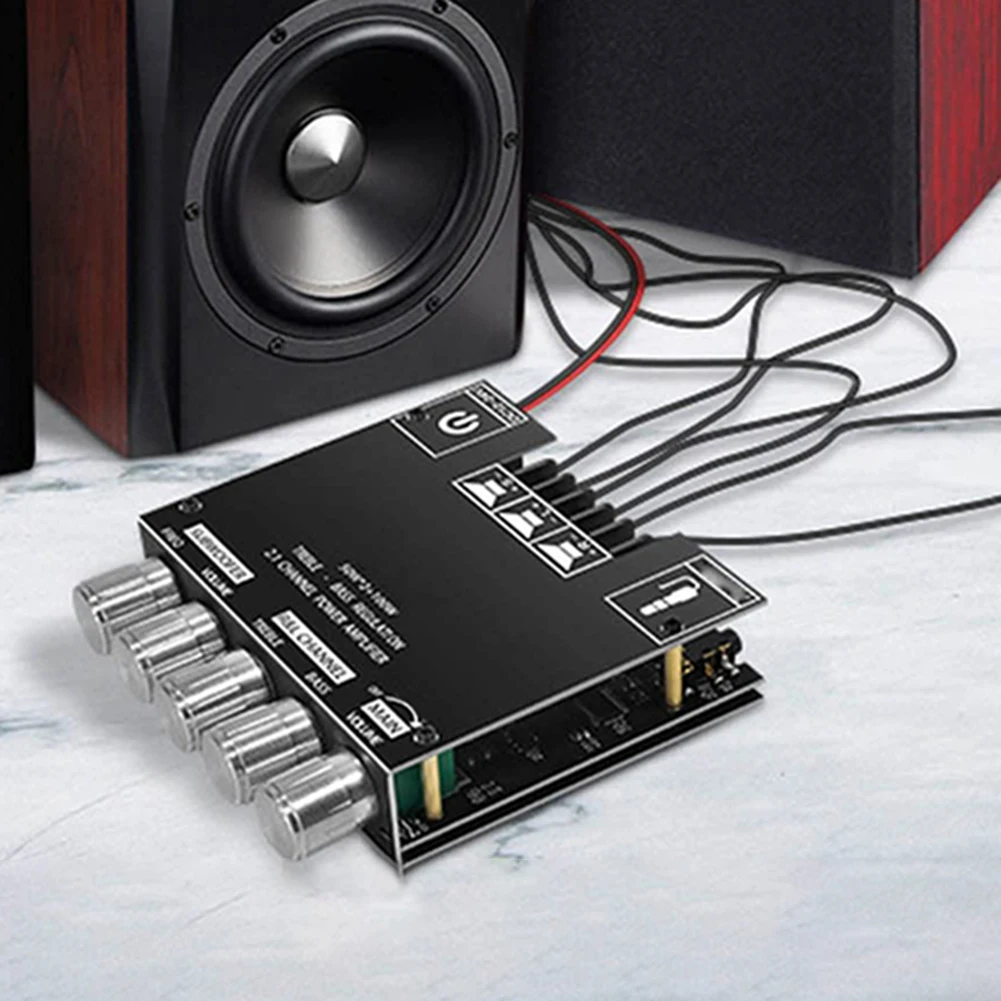

2.1 Channel Bluetooth-Compatible Audio Power Amplifier Module 50Wx2+100W Amplifier Board for DIY BT Audio and Store Home Theater

1 orders
US $112.00
(%)
Free
15-25days
Total Price:
Best price guarantee
Quantity:
View cart
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

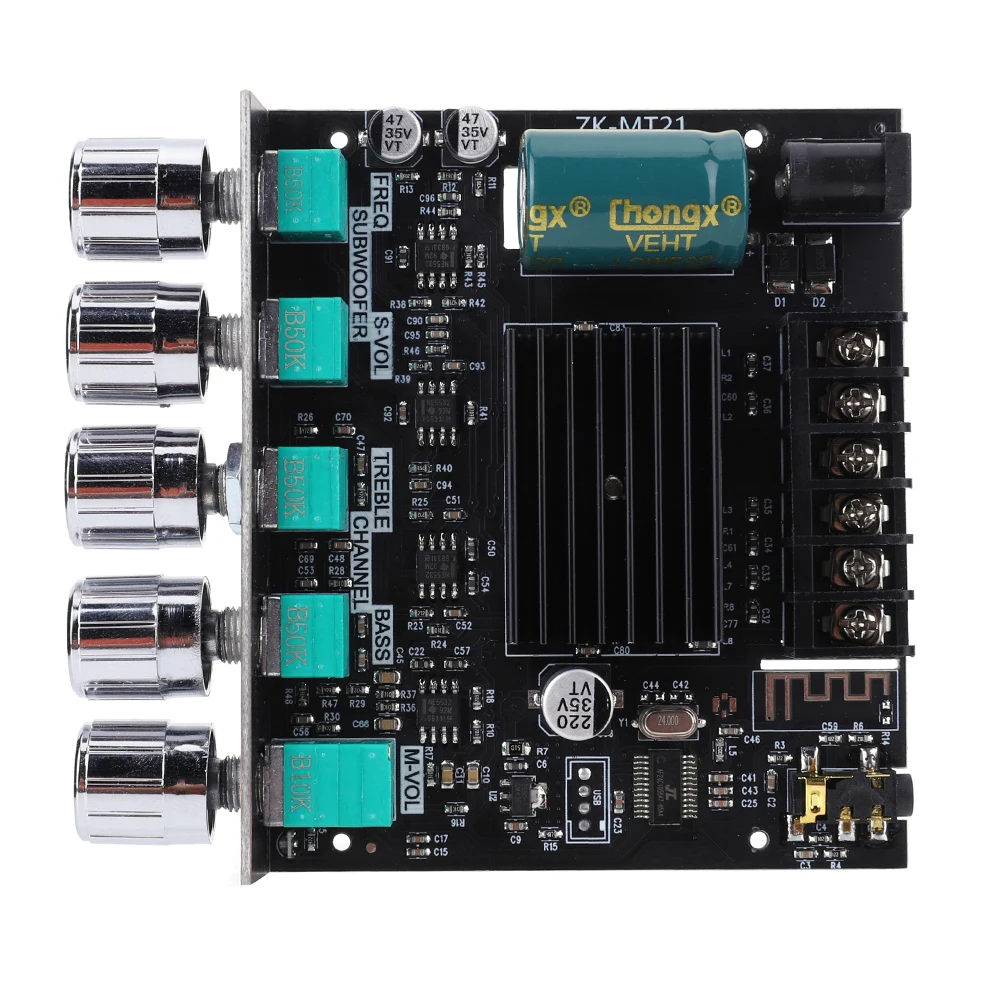

2.1 Channel Bluetooth-Compatible Audio Power Amplifier Board with Treble and Bass Control 50Wx2+100W Audio Power Amplifier Module Stereo Digital Audio Amp Board for DIY BT Audio and Store Home Theater
Feature:
1.Dual Input Modes: Enjoy versatile audio options with support for Bluetooth-compatible and 3.5mm AUX inputs. The Bluetooth-compatible 5.0 version ensures higher transmission efficiency and a range of up to 15 meters without obstacles, perfect for your audio power amplifier board needs.
2.Adjustable Bass & Treble: Experience rich sound with the 2.1 channel delivering up to 2X50W+100W maximum output power. Fine-tune the audio with adjustable bass and treble knobs for layered sound and powerful bass, enhancing your audio power amplifier module performance.
3.Protection Features: Equipped with short circuit, overcurrent, overheat, and reverse polarity protection. When overload occurs, the processor is informed, safeguarding your stereo digital audio amp board from any potential damage.
4.High-Quality Components: Made with a copper DC connector and barrier terminal that withstands high currents without heat or damage. Includes a DC head lead compatible with the input power interface for this amp board, ensuring easy connection even without a DC adapter or battery.
5.Wide Applications: Ideal for shop displays, home theaters, DIY speakers, and more. For any inquiries or quality issues with the amplifier board, feel free to contact us for a satisfactory response.

Specification:
Origin: Mainland China
Product name: 2.1 channel Bluetooth-Compatible audio amplifier module
Bluetooth-Compatible version: 5.0 (unobstructed, 15 meters)
Input method: AUX + Bluetooth-Compatible
Number of channels: 2.1 channels
Applicable power supply: DC12~24V/5A or above (cannot be connected to 24V battery pack)
Applicable speakers: 20~100W, 4~8Ω
Output power: maximum 50W for left and right channels; maximum 100W for subwoofer
Protection mechanism: anti-reverse connection, overheating, overcurrent, short circuit protection
Product size: 93*89*21mm
Tip:
Sufficient audio input and sufficient power supply voltage/current can obtain sufficient output power. The higher the power supply voltage, the greater the relative power. Speakers with different impedances also have different output powers. When the voltage and current are sufficient, the greater the ohm number of the speaker, the smaller the relative power. Please make sure that the power of the power adapter is greater than the actual working power of the amplifier. (It is recommended to use a power supply of 12V 5A or above.)
How to select the audio input mode
This amplifier board has two input modes: Bluetooth-Compatible and 3.5mm AUX interface.
When both modes input audio signals at the same time, the amplifier board will give priority to the Bluetooth-Compatible mode;
If you need to use the AUX mode, please make sure the Bluetooth-Compatible connection is disconnected.

Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.



1 X  Bluetooth-Compatible Amplifier Board
2 X Housing
5 X Knobs
1 X Screwdriver
1 X Dc Plug
1 X Screw Kit
